Home >> Pontiac >> 1991 >> 6000 SE >> Repair and Diagnosis >> Body & Frame >> Power Windows >> System Tests >> Test C: Window Switch

Test C: Window Switch

For test procedure, refer to illustration. See Fig 1 .

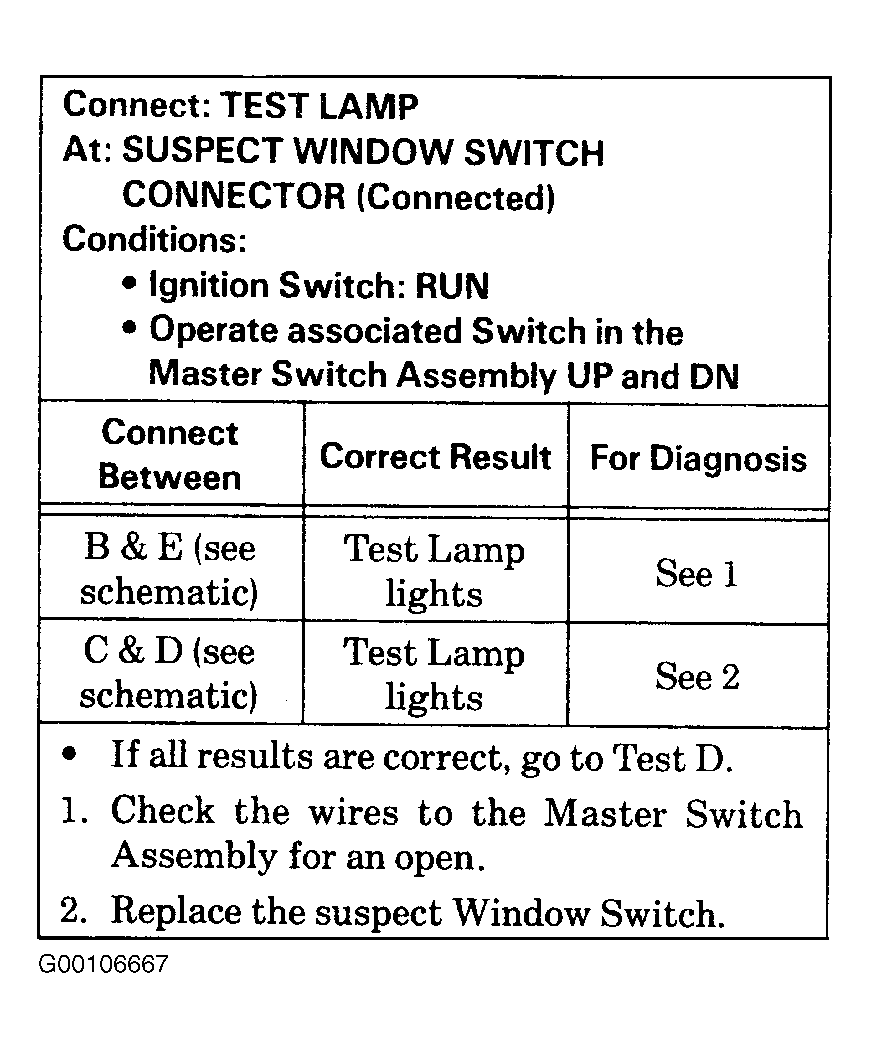

Fig 1: Test C: Window Switch

G00106667

Courtesy of GENERAL MOTORS CORP.
