Repair and Diagnosis
>>
Engine Performance
>>
Engine Controls - Pin Voltage Charts
>>
Pin Voltage Charts
Pin Voltage Charts

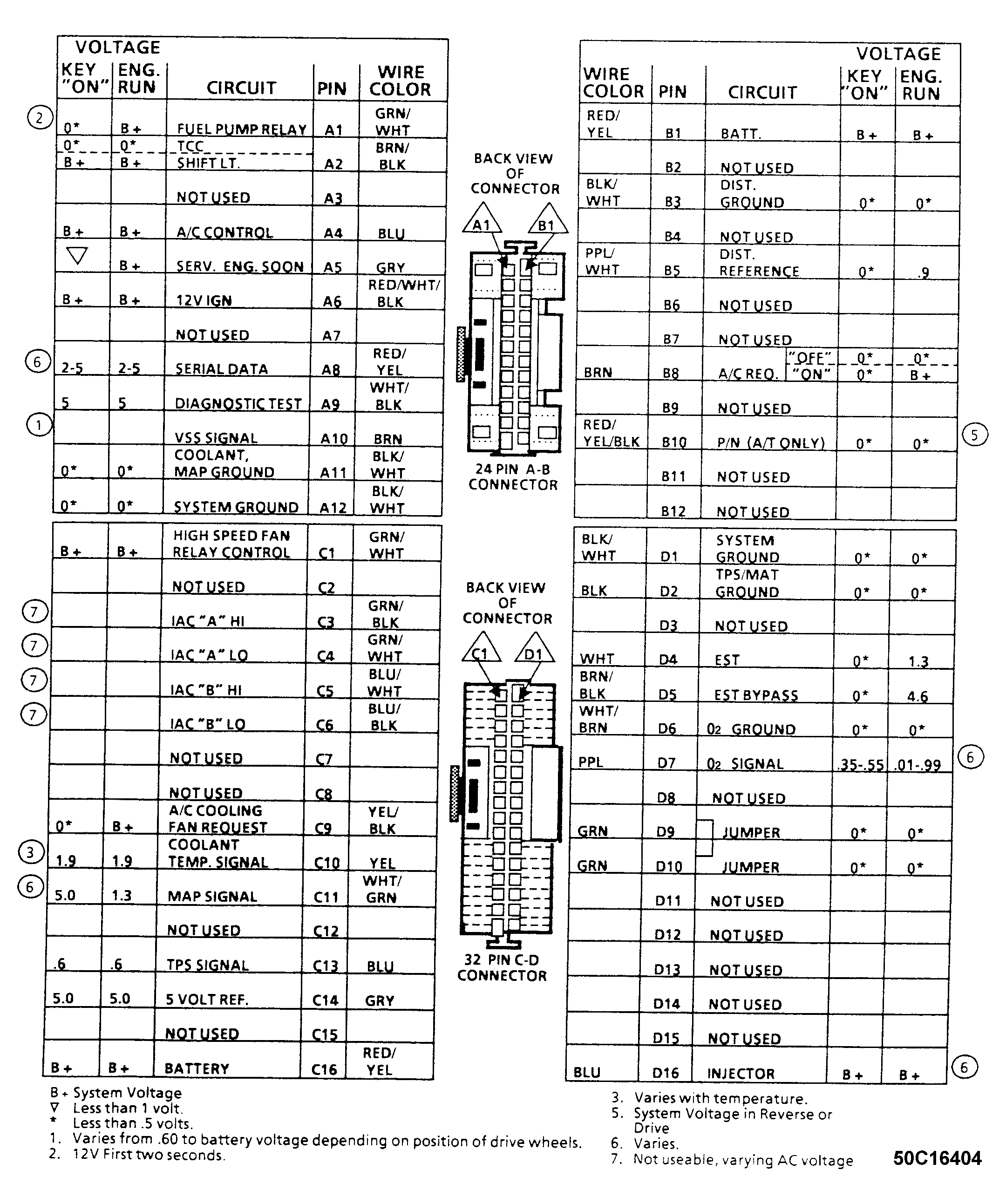

Fig 1: ECM Connector & Pin Voltages (1.6L)
Courtesy of GENERAL MOTORS CORP.

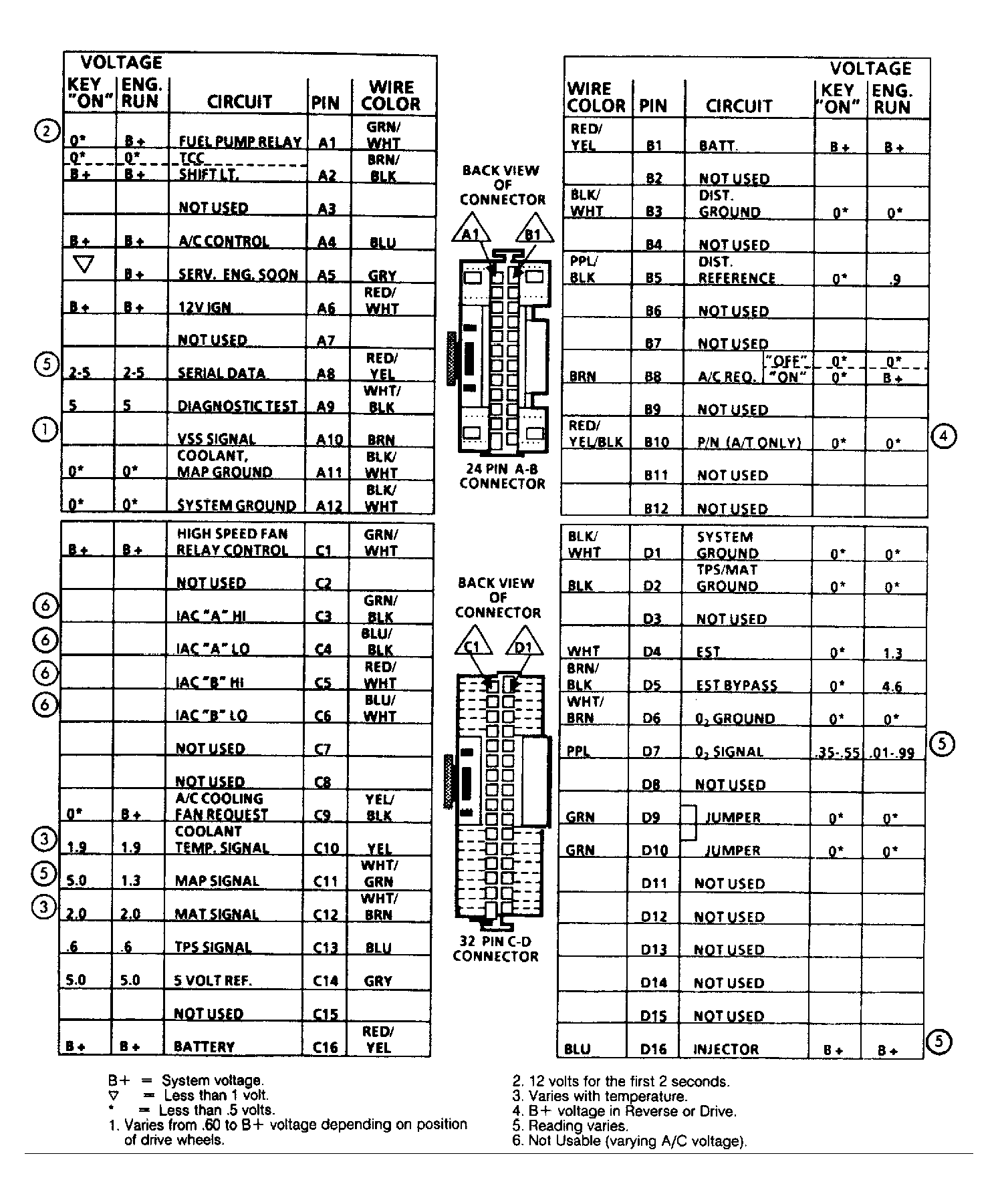

Fig 2: ECM Connector & Pin Voltages (2.0L)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
