Adjustable Steering Column: Reassembly

Lubricate centering ball halves and joint preload spring with lithium grease. Position spring between ball halves with ends of spring in notches. Lubricate shaft ends with grease. With lock bolt groove on upper shaft at 12 o'clock and lower pinch bolt groove at 7 o'clock, assemble shafts onto centering ball.

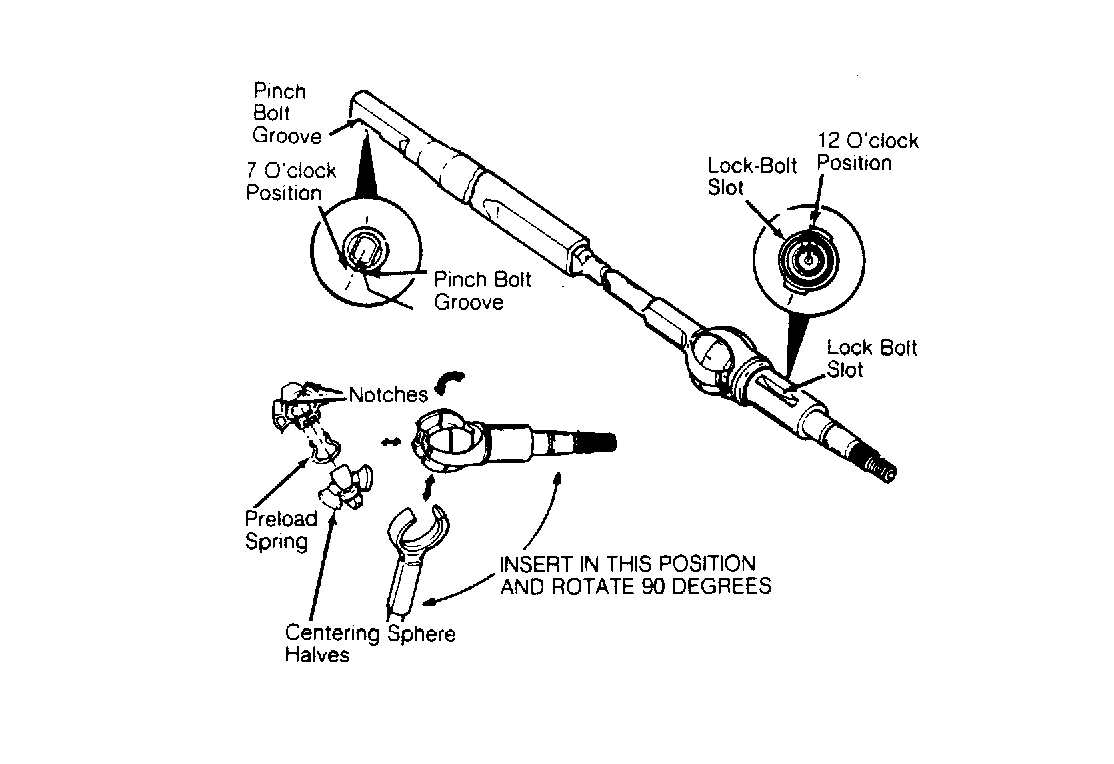

Fig 1: Adjustable Steering Column Shaft

Courtesy of GENERAL MOTORS CORP.

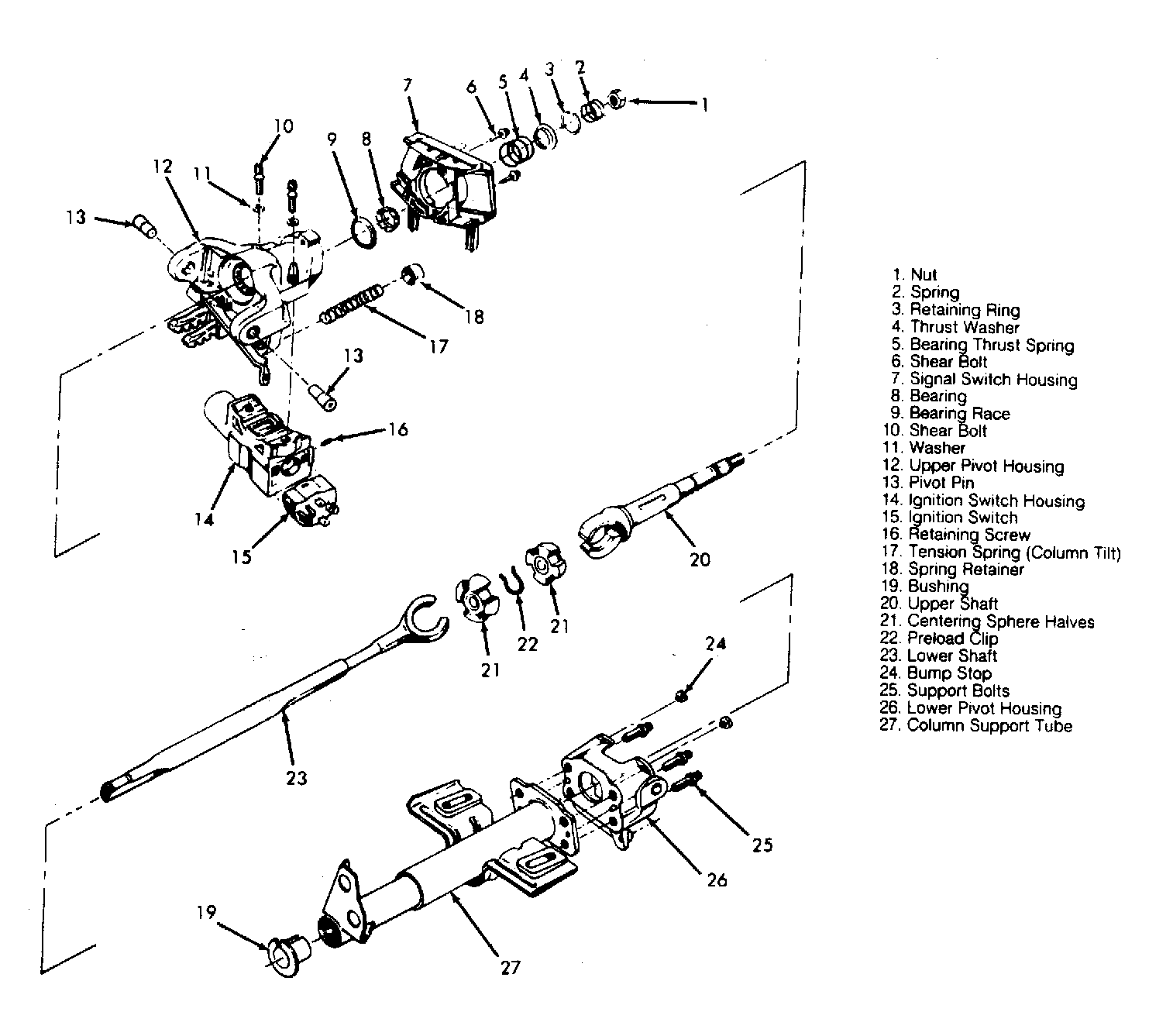

Fig 2: Steering Column Shaft Assembly (Adjustable)

Courtesy of GENERAL MOTORS CORP.
