Toe-In (Rear)

Loosen inboard cam nuts of rear support rod. Rotate cam to obtain proper toe specification. Tighten nuts to 140 ft. lbs. (190 N.m). See Fig 1 .

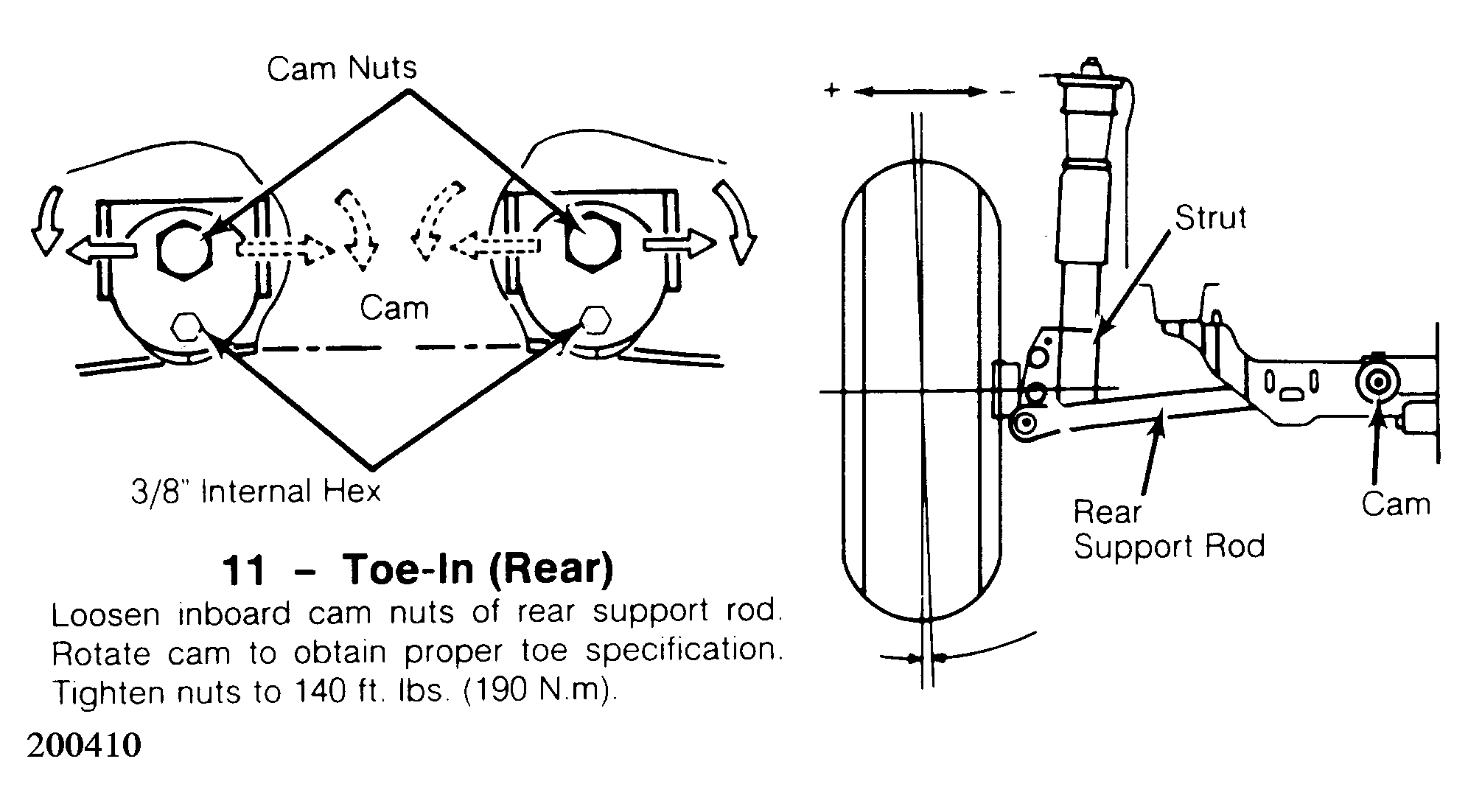

Fig 1: Toe-In Adjustment (Rear)

G200410
