Control Units
CONTROL UNITS LOCATION
| Component | Location | ||
|---|---|---|---|
| Audio Alarm Module | In convenience center. | ||

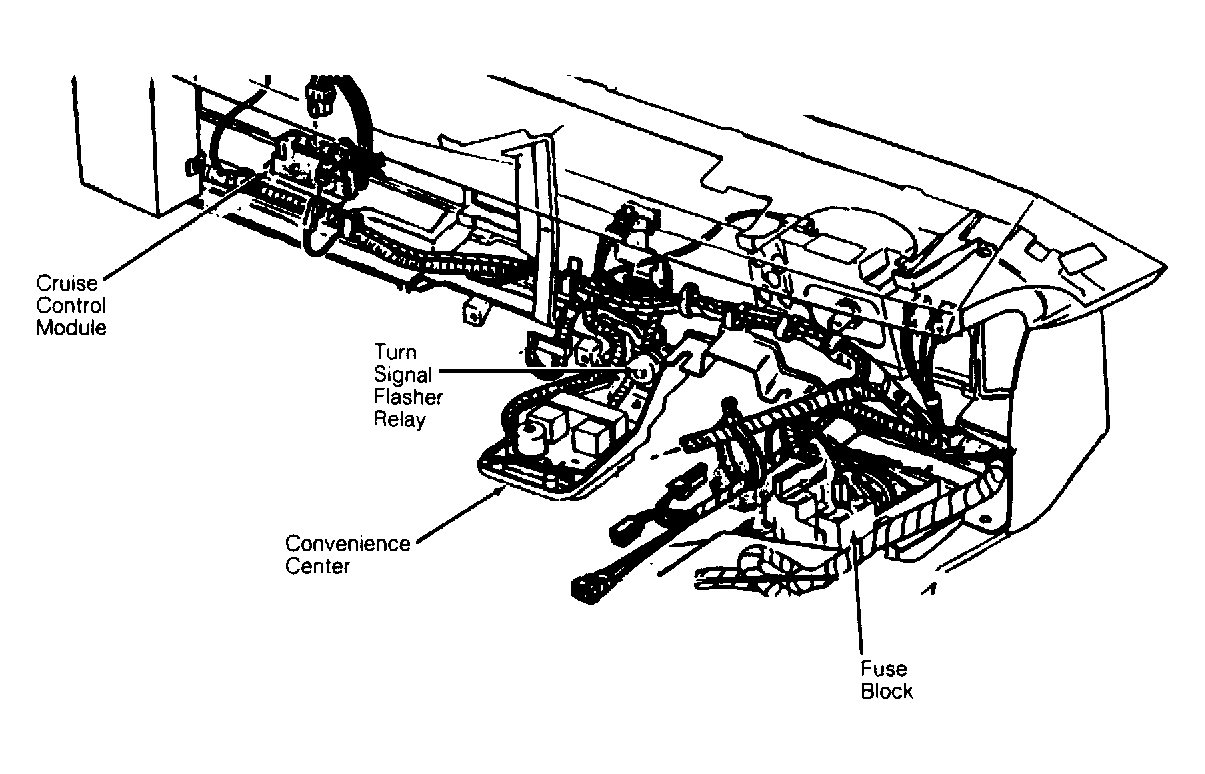

| Cruise Control Module | Behind right center of dash. See Figure . | ||
| Electronic Control Module (ECM) | |||

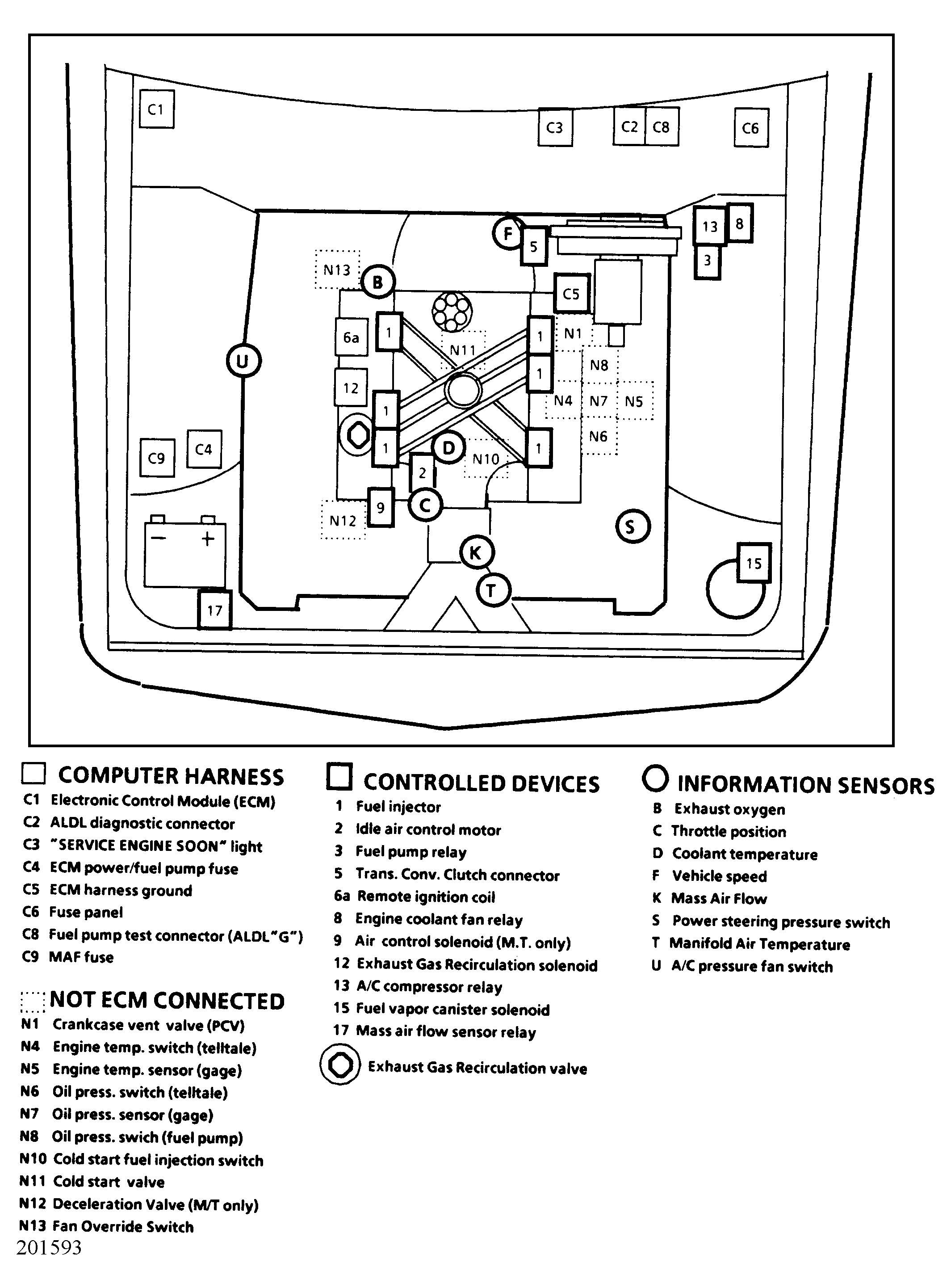

| V6 PFI | Behind right side of dash. See Figure . | ||

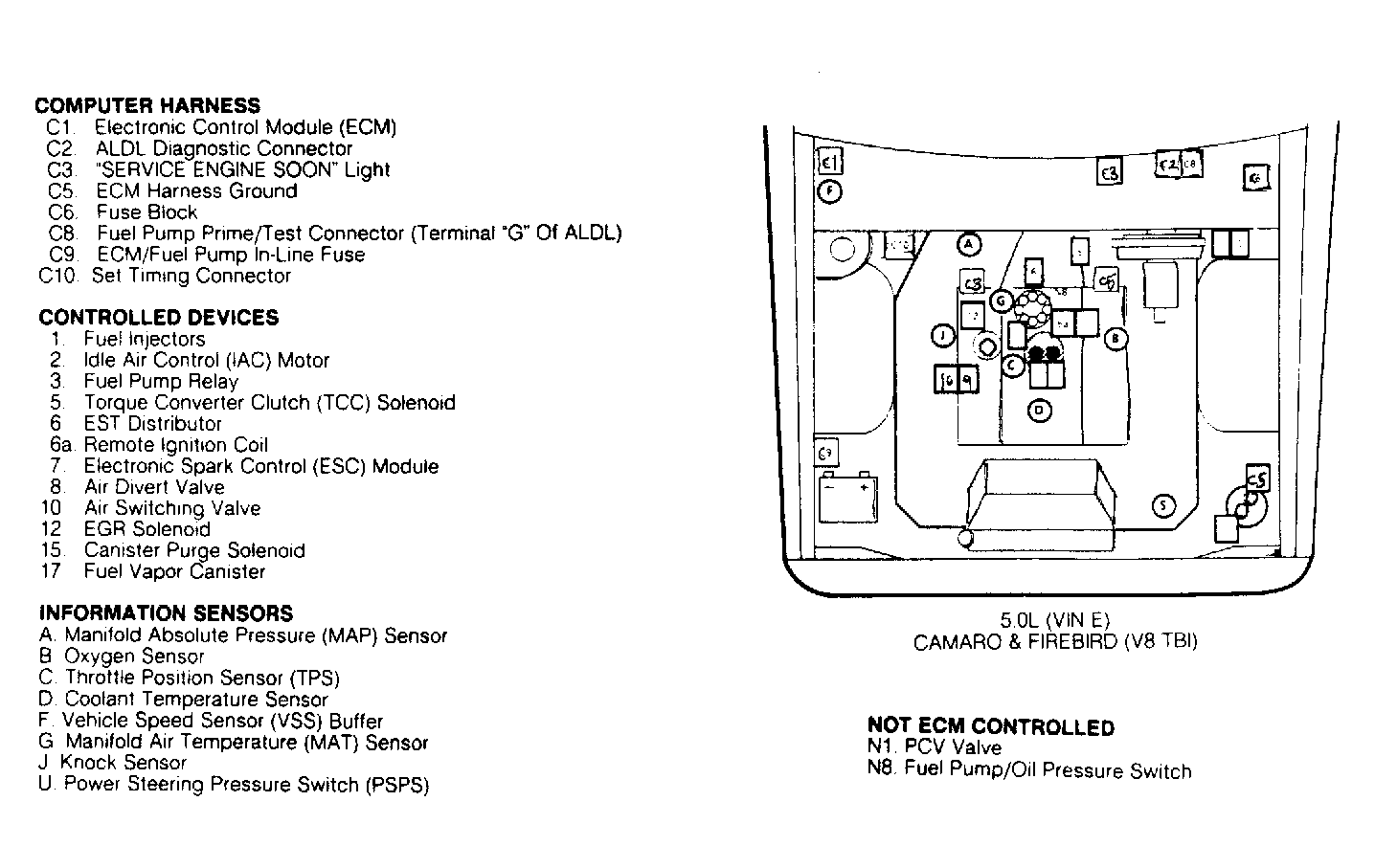

| 5.0L TBI | Behind right side of dash. See Figure . | ||

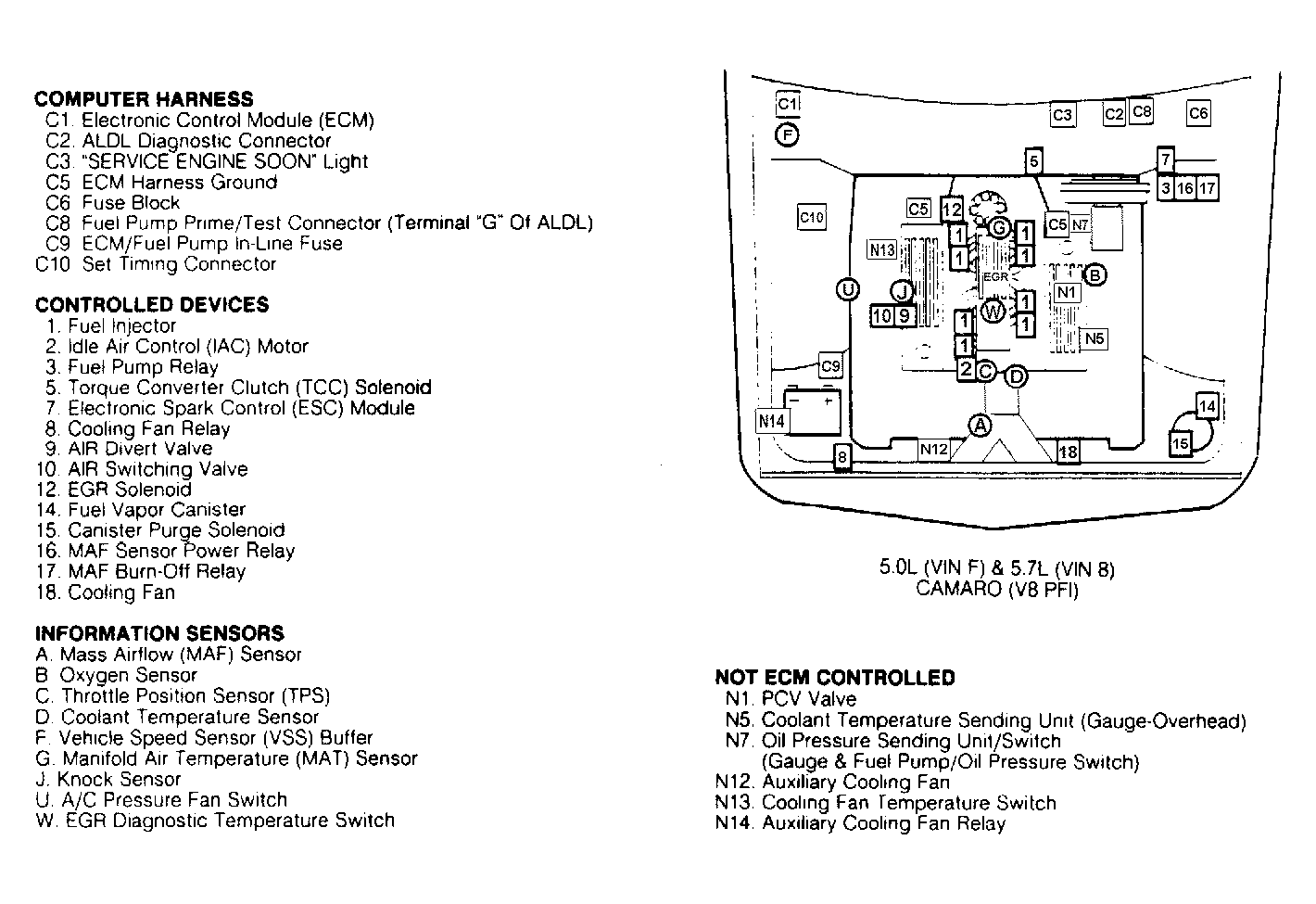

| 5.0L & 5.7L (Camaro) | Behind right side of dash. See Figure . | ||

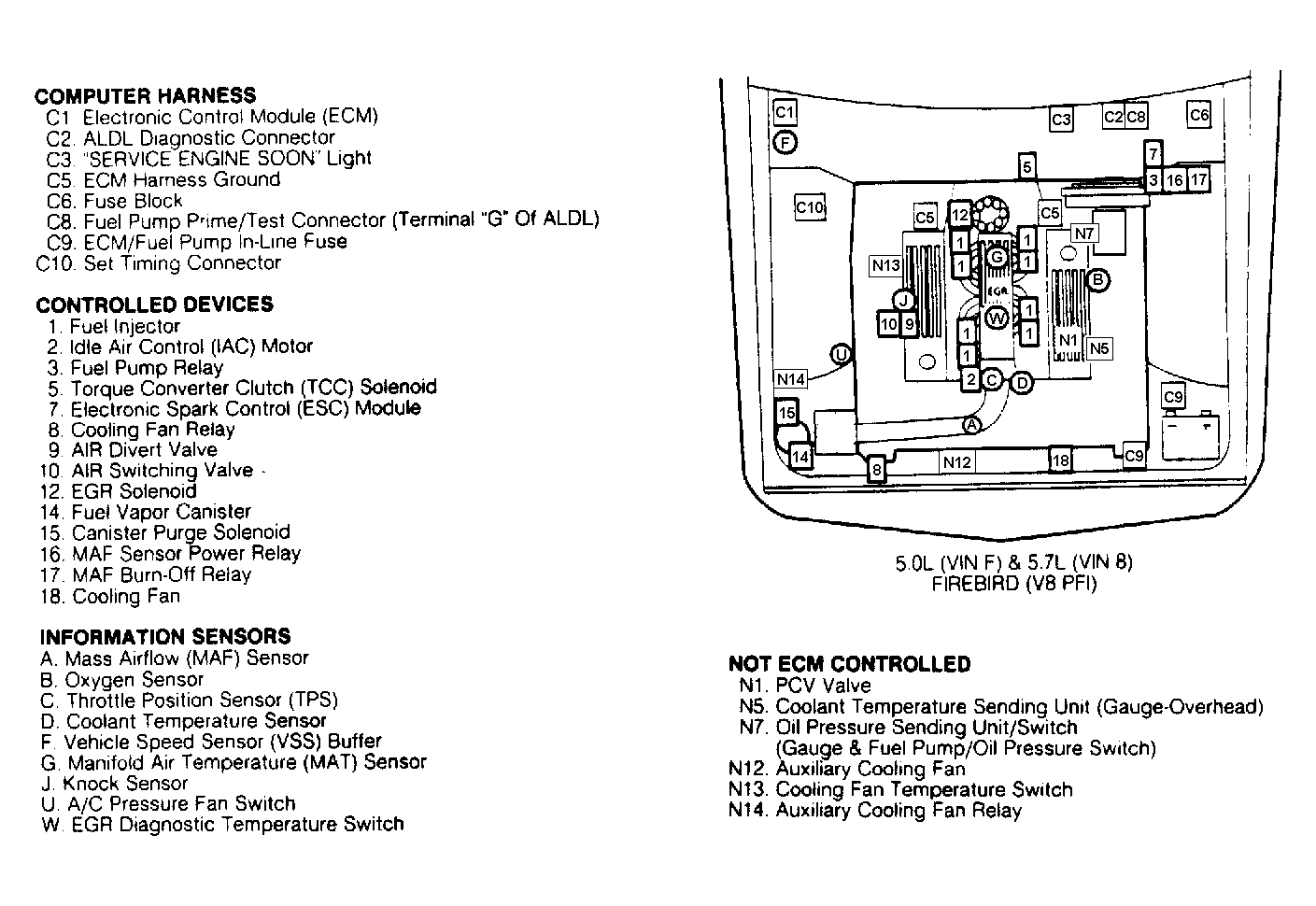

| 5.0L & 5.7L (Firebird) | Behind right side of dash. See Figure . | ||
| Elect. Spark Control (ESC) Module | |||
| 5.0L TBI | On left side of firewall, behind fuel pump relay (V8 PFI & TBI). See Figure . | ||
| 5.0L & 5.7L | |||
| Camaro | On left side of firewall, behind fuel pump relay (V8 PFI & TBI). See Figure . | ||
| Firebird | On left side of firewall, behind fuel pump relay (V8 PFI & TBI). See Figure . | ||
| EST Timing Connector (2.8L) | Taped to engine harness at the rear of engine. | ||
| Headlight Door Module | On firewall bracket, behind brake booster. | ||
| Pass Key Decoder Module | Behind right side of instrument panel. | ||

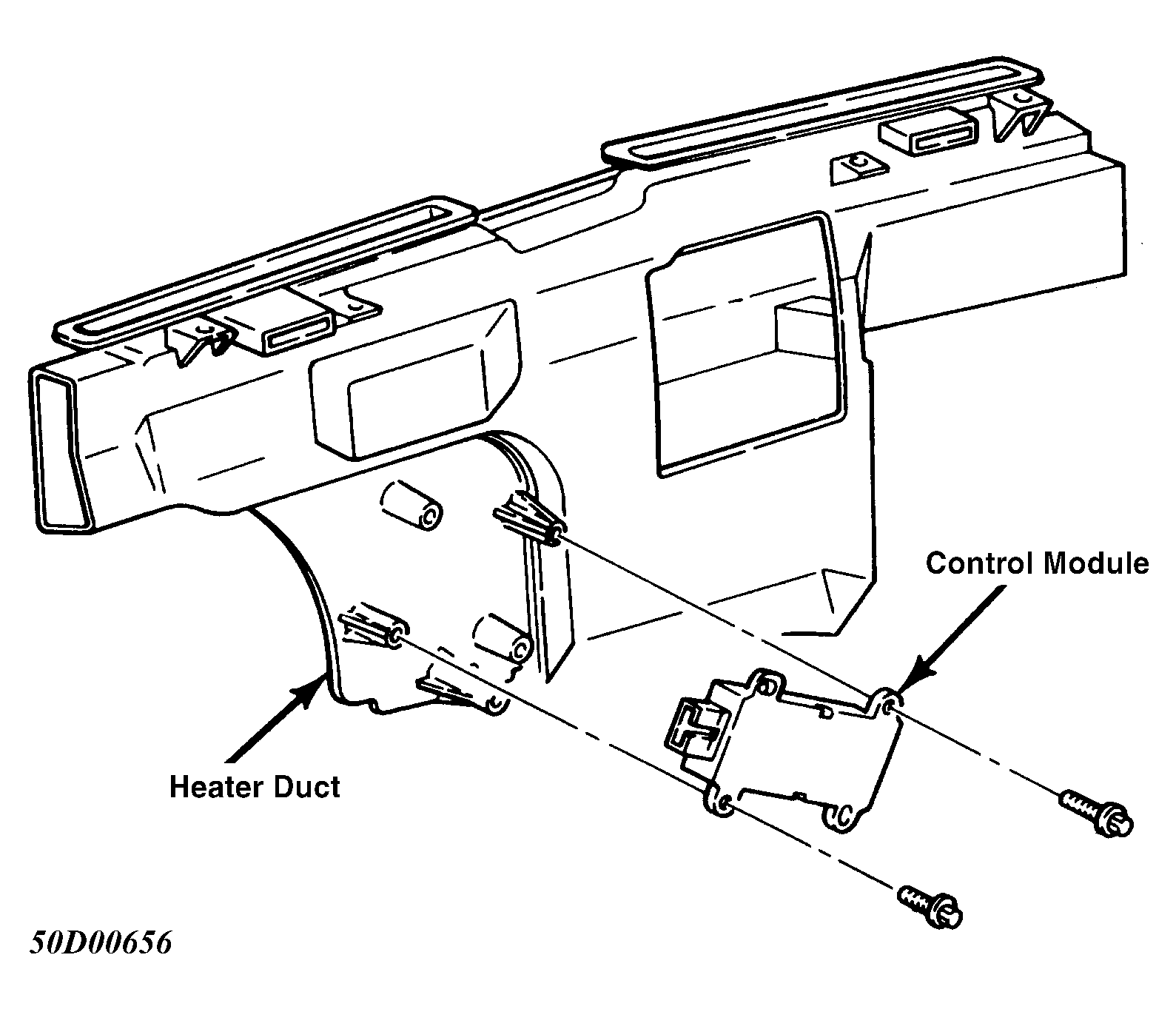

| VATS Decoder Module | Behind center console, attached to heater duct. See Figure . | ||
