Pontiac
>>
1989
>>
Firebird Formula, 5.7 8
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
5.0L/5.7L PFI Tests W/Codes
>>
Wiring Diagrams
Wiring Diagrams

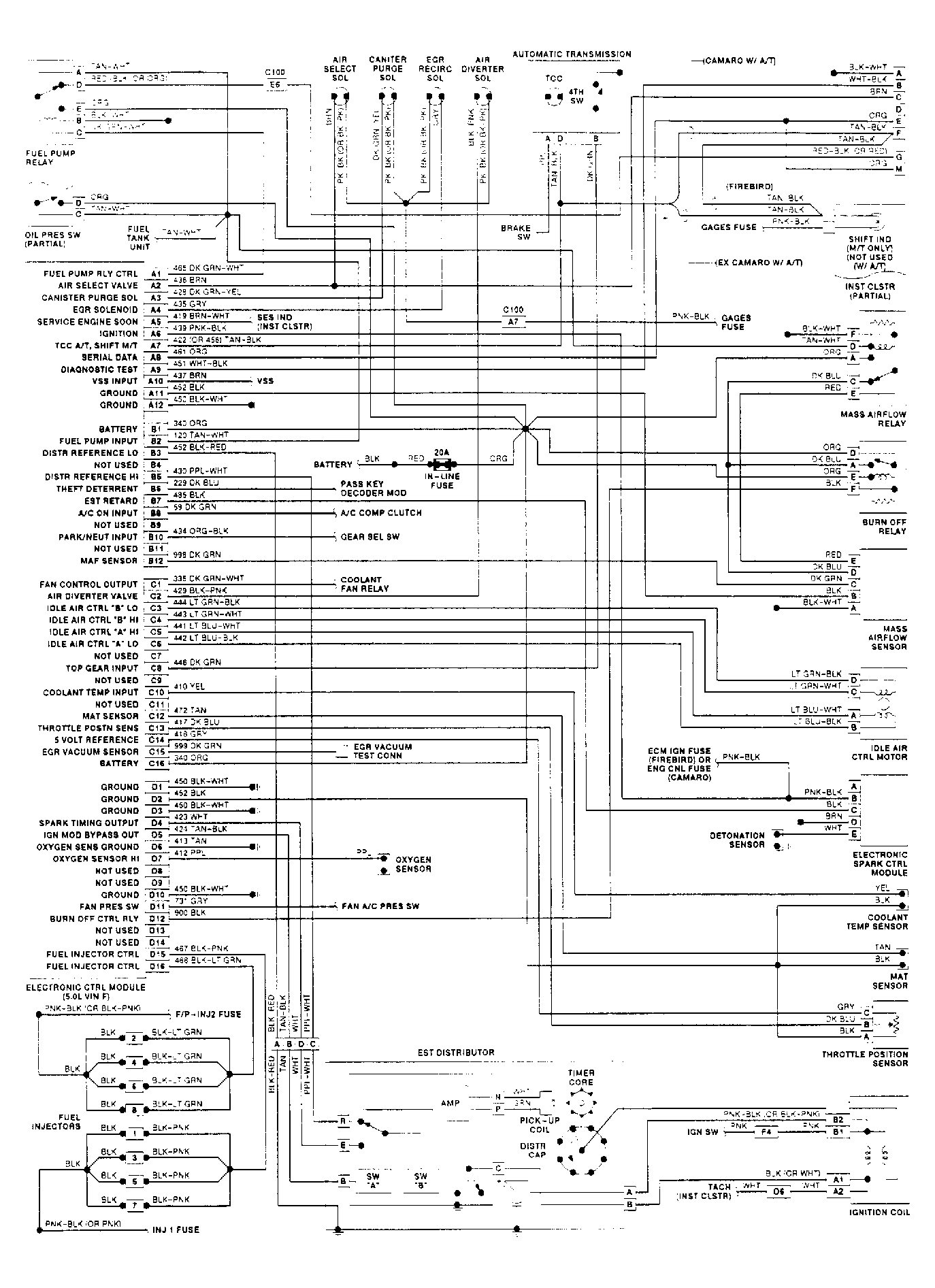

Fig 1: Wiring Diagram For Camaro & Firebird 5.0L (VIN F)

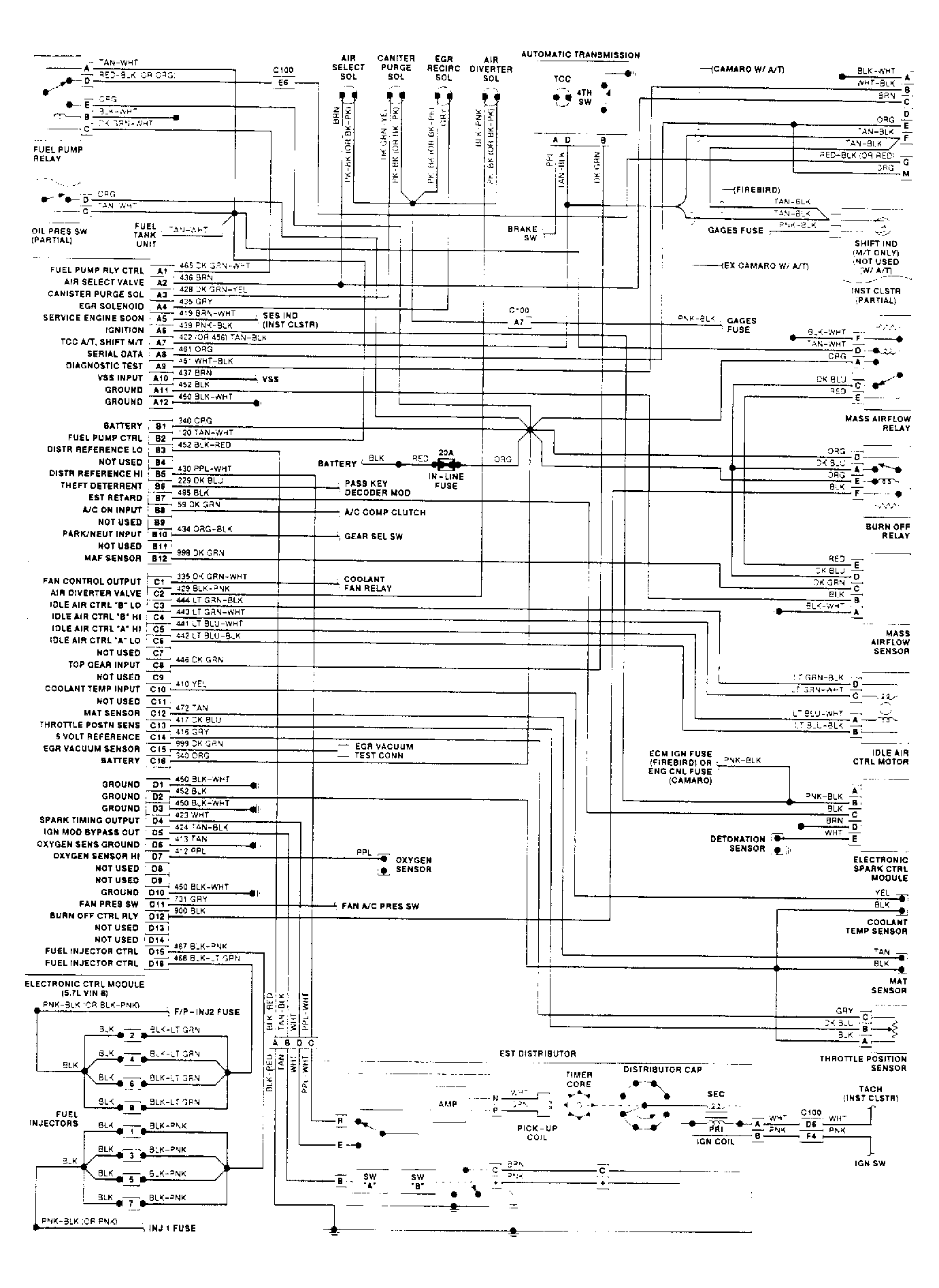

Fig 2: Wiring Diagram For Camaro & Firebird 5.7L (VIN 8)

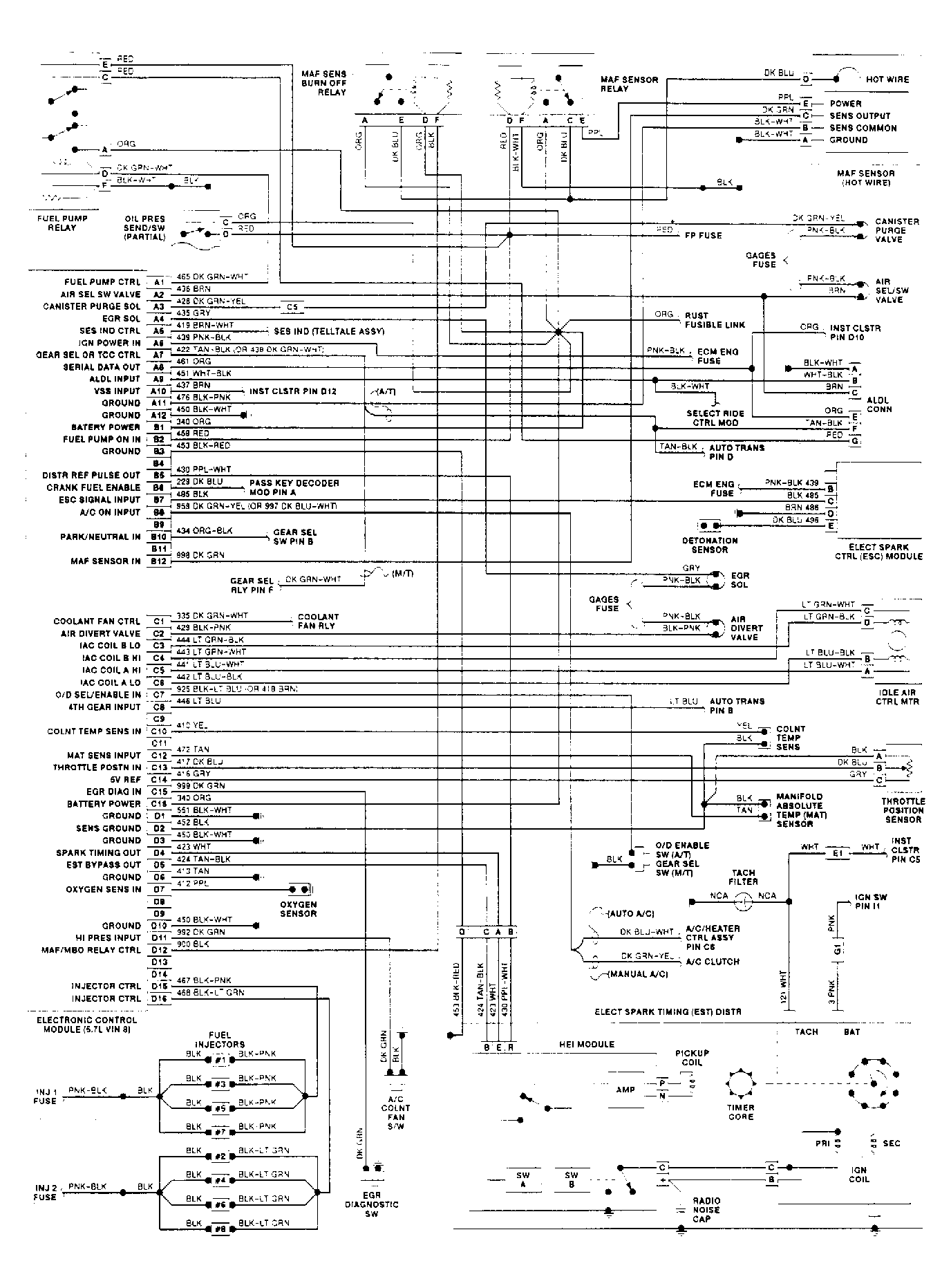

Fig 3: Wiring Diagram For Corvette 5.7L (VIN 8)
