EXPERTEC TSB (89-6-22)

Publication date: 1989-01-25
Reference number: 89-6-22

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 89-6-22, Date of Issue: 01/25/89

01/25/1989

Pontiac 89-6-22

Fig 1: Graphic

Fig 2: Graphic

Fig 3: Graphic

Fig 4: Graphic

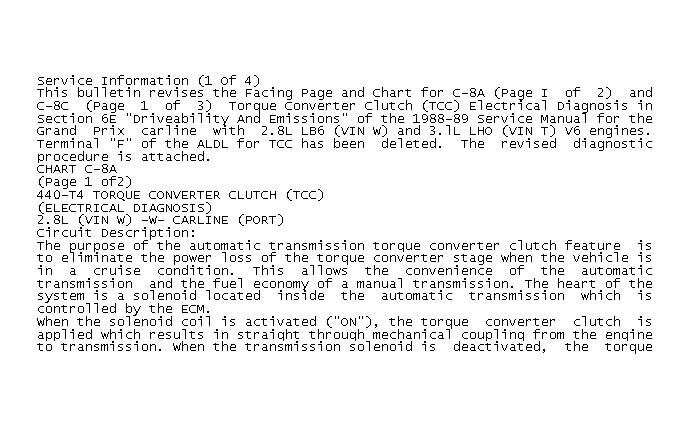

Fig 5: Service Information (1 Of 4)

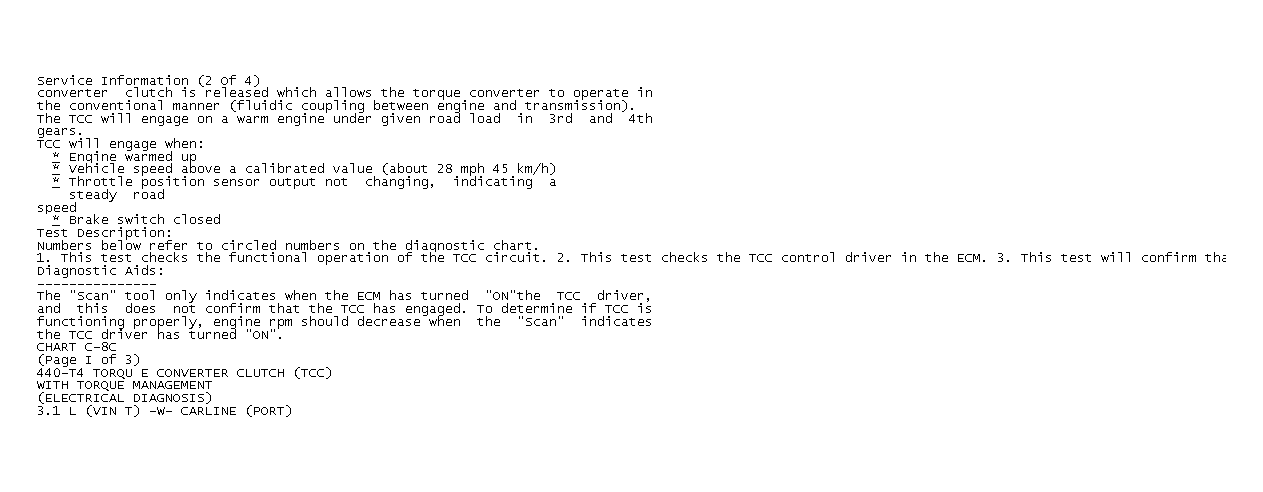

Fig 6: Service Information (2 Of 4)

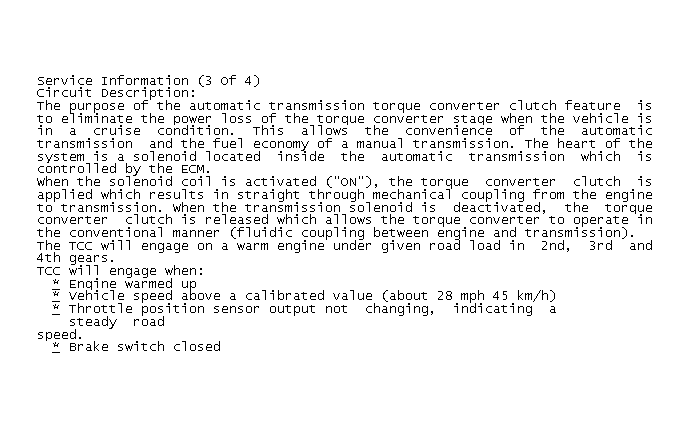

Fig 7: Service Information (3 Of 4)

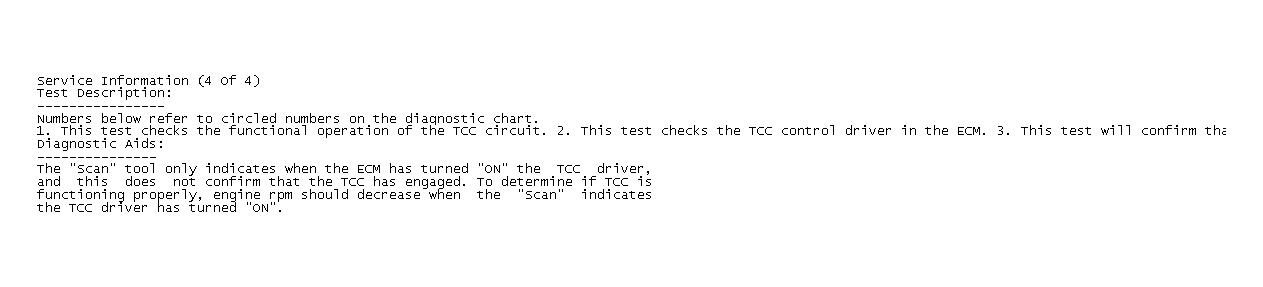

Fig 8: Service Information (4 Of 4)
