Wiring Diagrams

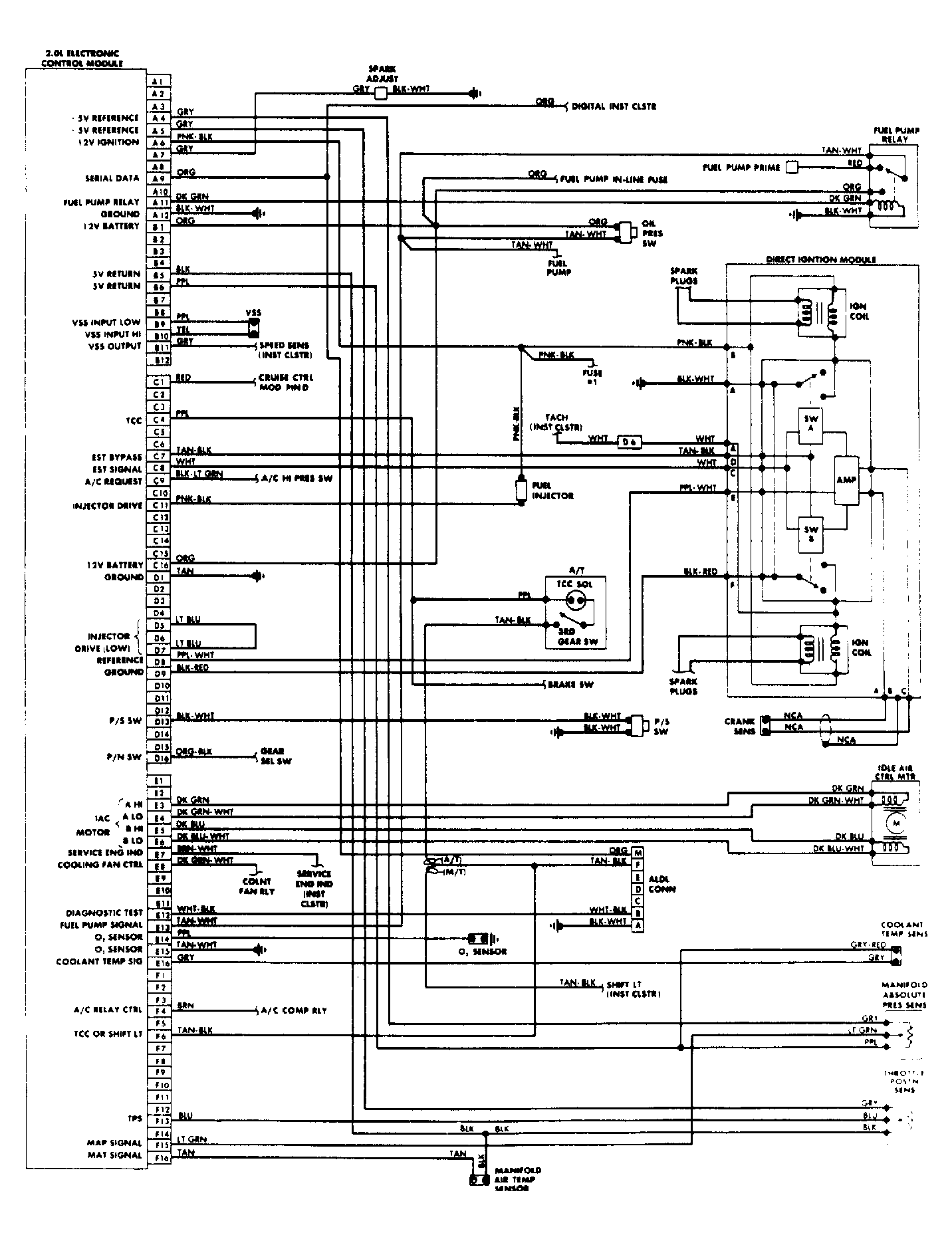

Fig 1: 2.0L OHC (VIN K) Throttle Body Fuel Injection Wiring Diagram

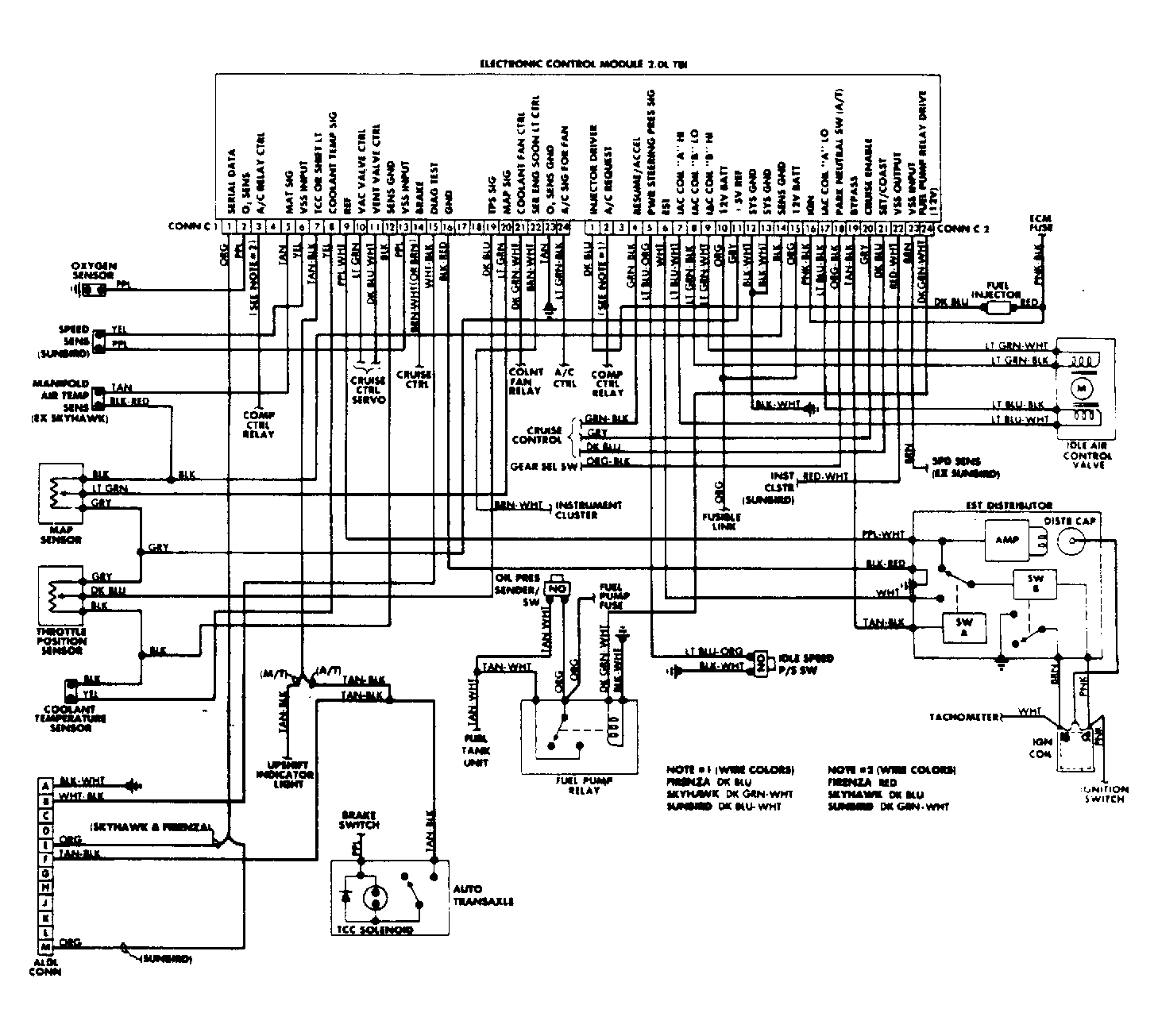

Fig 2: 2.0L OHV (VIN 1) Throttle Body Fuel Injection Wiring Diagram

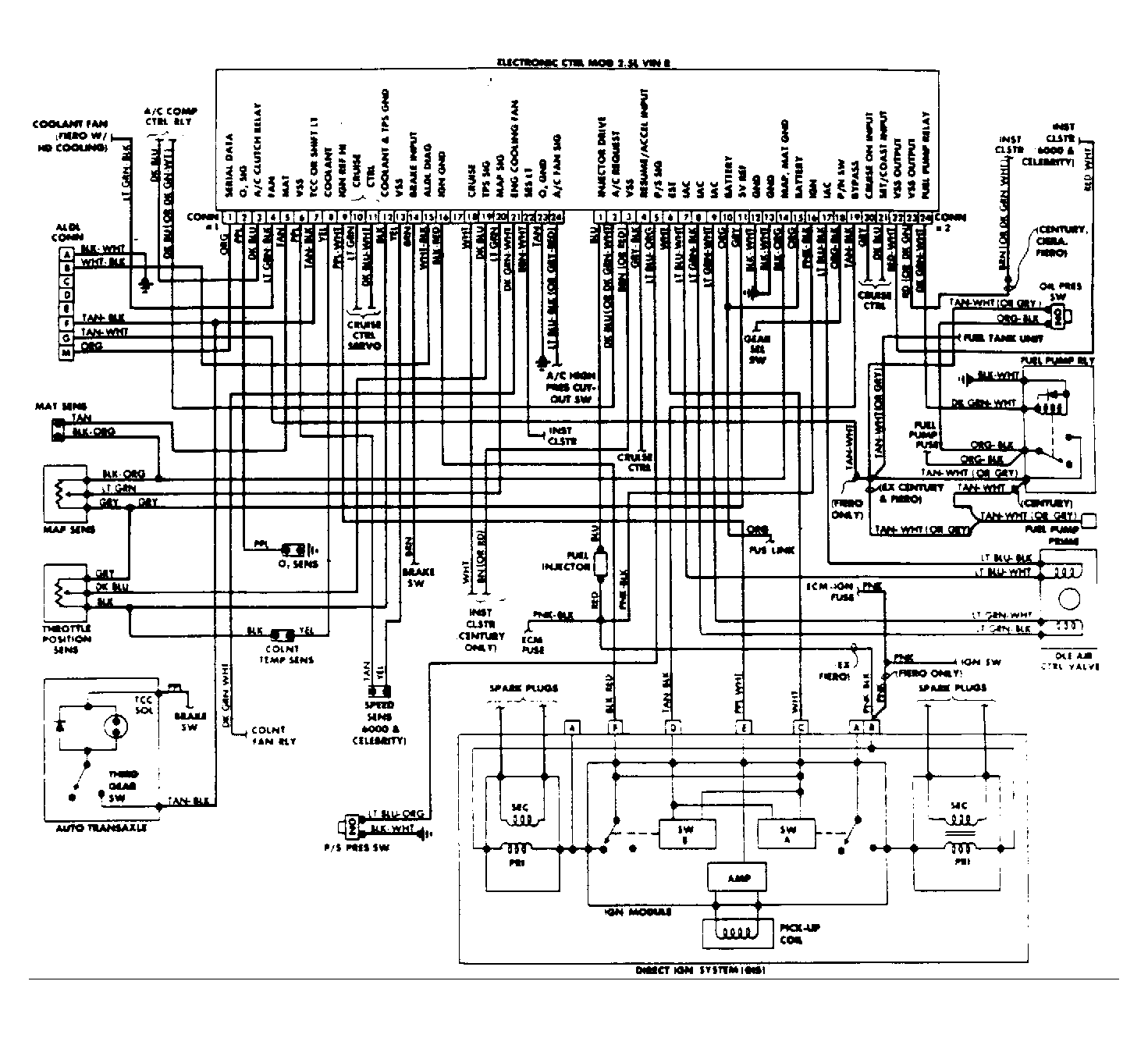

Fig 3: 2.0L OHV (VIN K) Throttle Body Fuel Injection Wiring Diagram

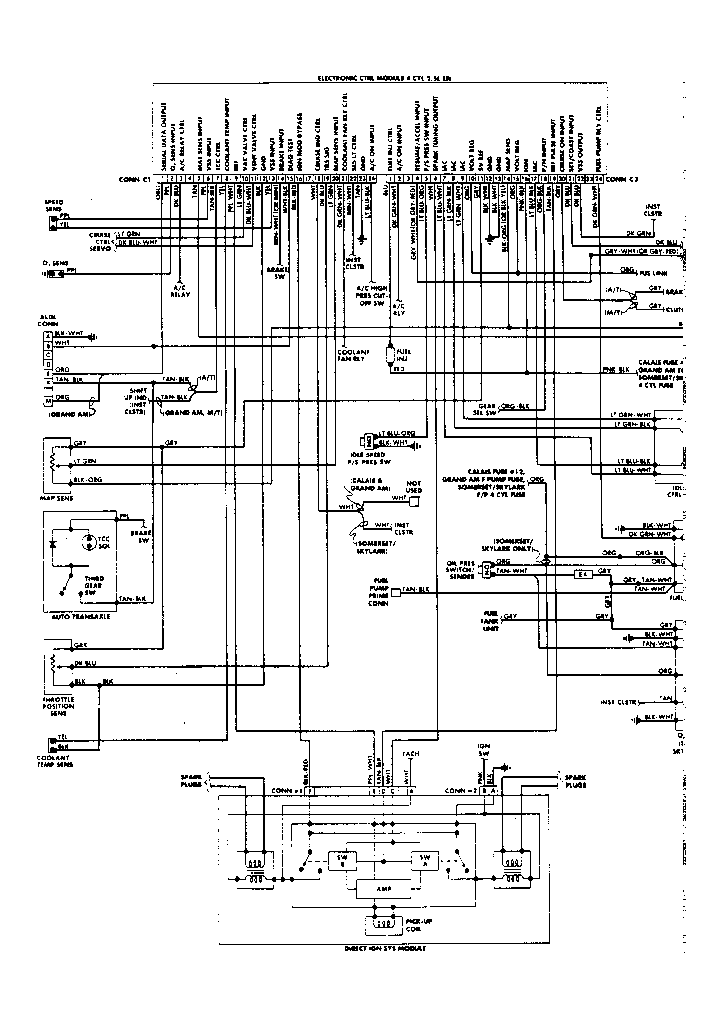

Fig 4: 2.5L (VIN U) Throttle Body Fuel Injection Wiring Diagram

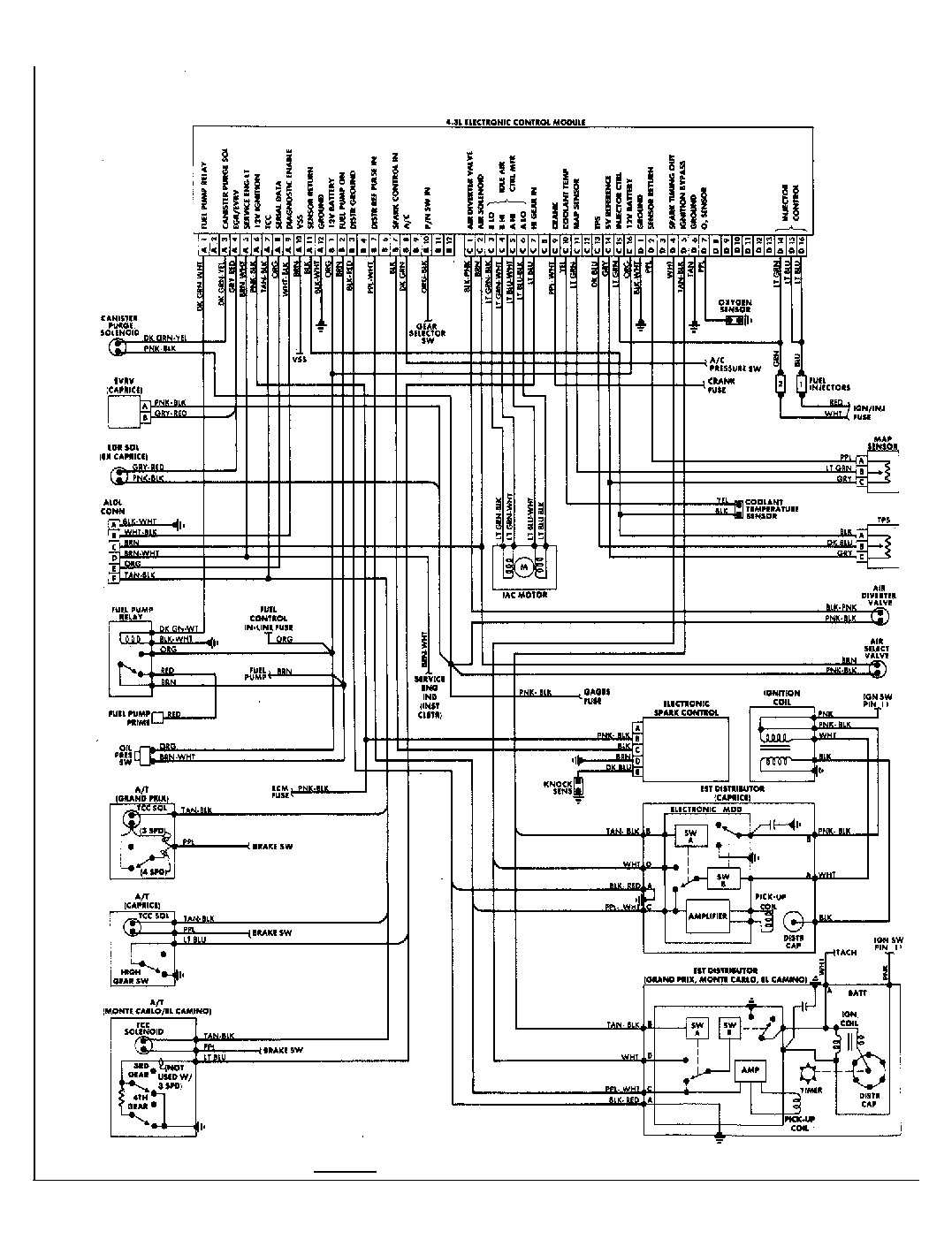

Fig 5: 2.5L (VIN R) Throttle Body Fuel Injection Wiring Diagram

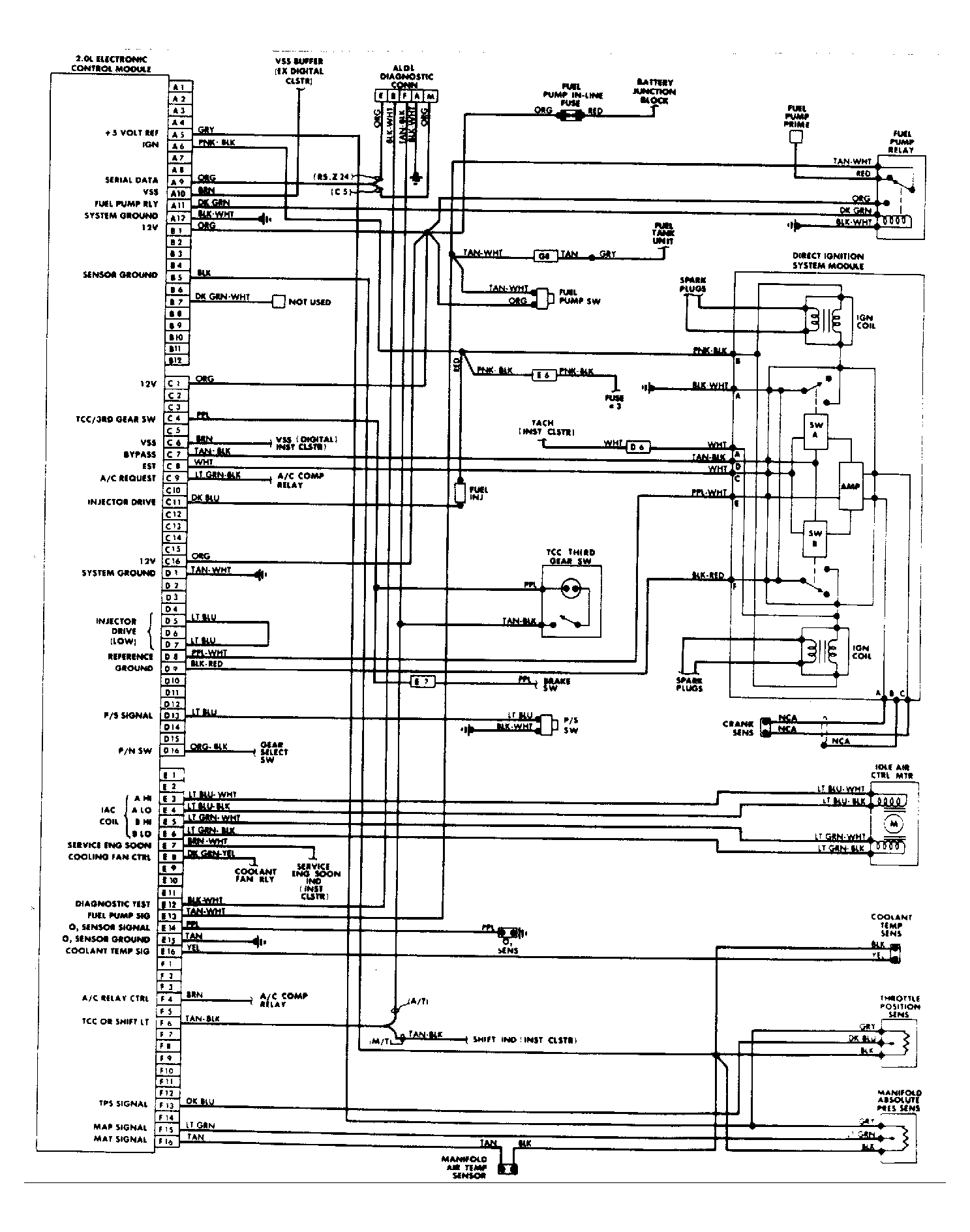

Fig 6: 4.3L Throttle Body Fuel Injection Wiring Diagram
