Wiring Diagrams

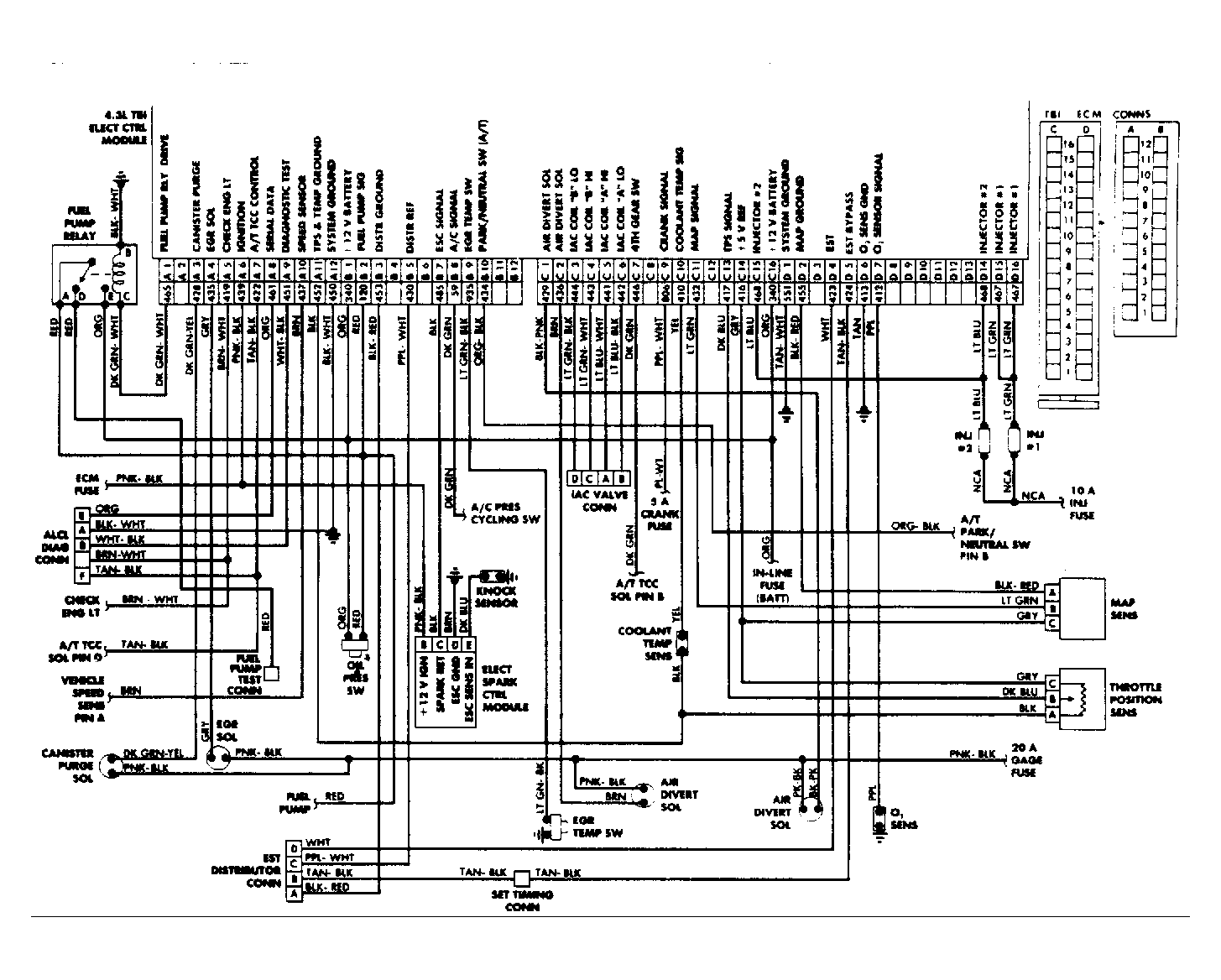

Fig 1: 4.3L TBI CCC Wiring Diagram (1987 "B" & "G" Bodies)

G7132

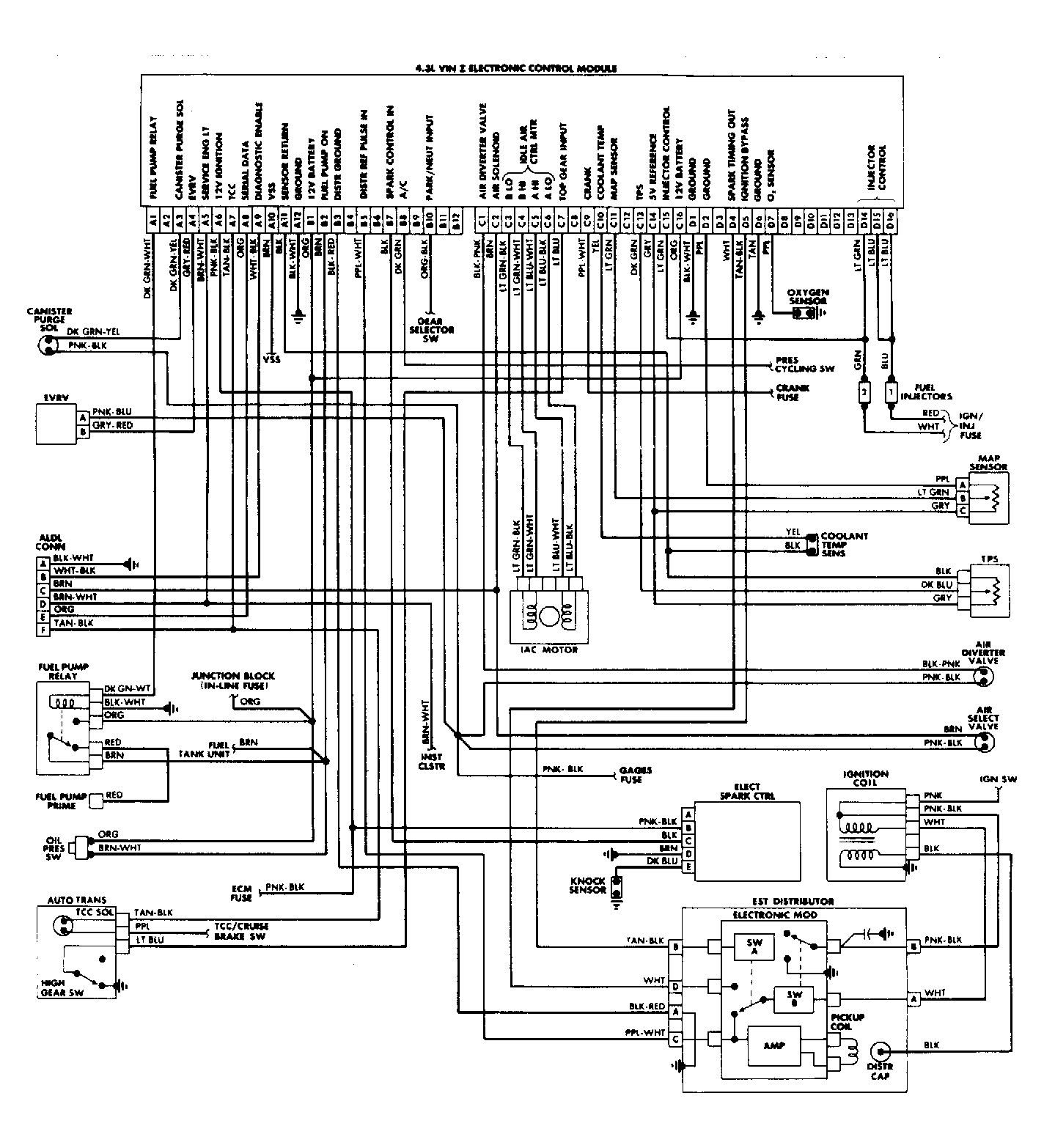

Fig 2: 4.3L TBI CCC Wiring Diagram (1988-89 "B" & "G" Bodies)

G51638
