ECM Terminal Identification

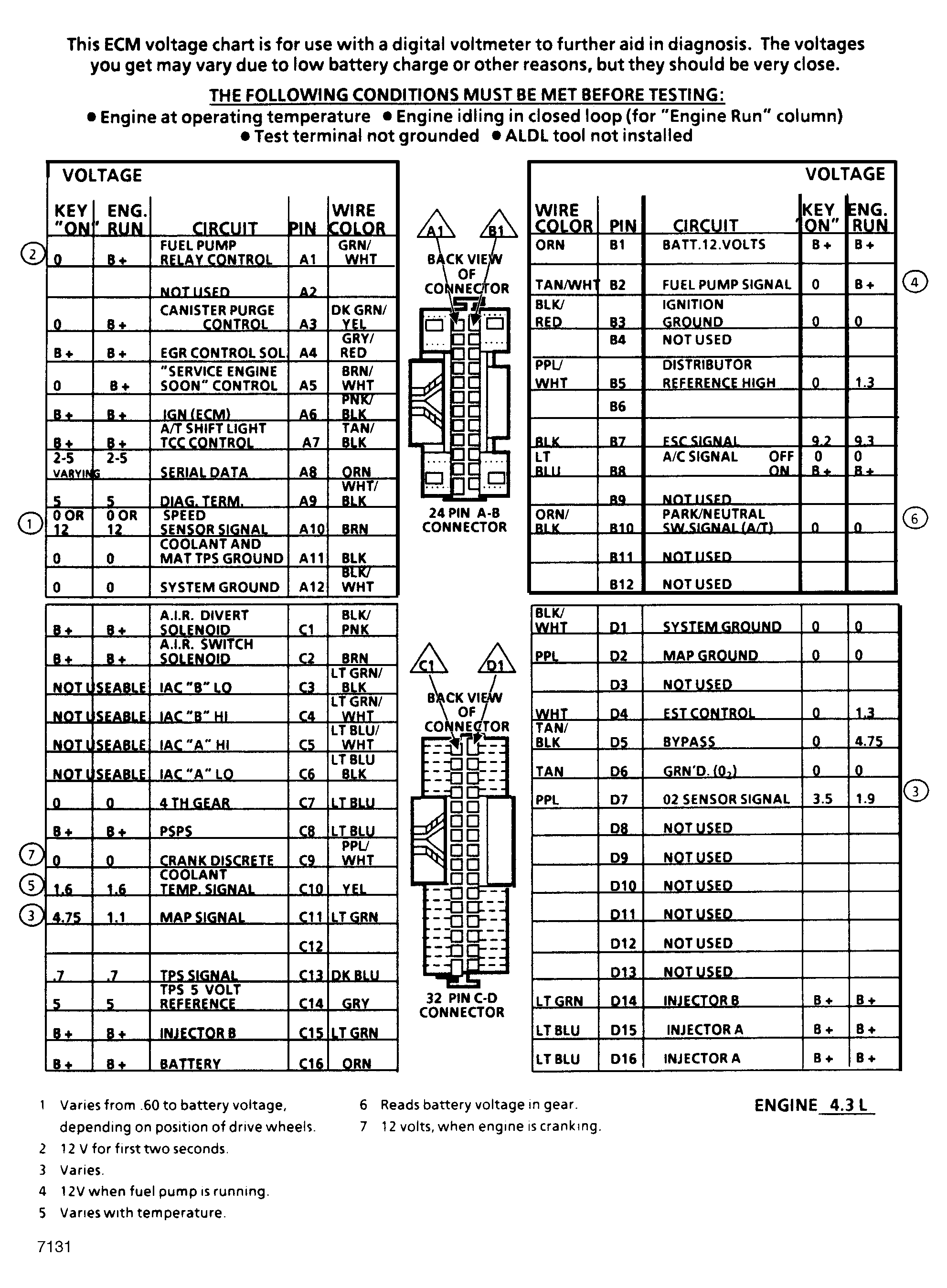

Fig 1: 4.3L TBI ECM Terminal ID & Pin Voltages ("B" & "G" Bodies)

G7131
