3.8L Feedback Carburetor Tests W/Codes
>>
ECM Terminal Identification
ECM Terminal Identification

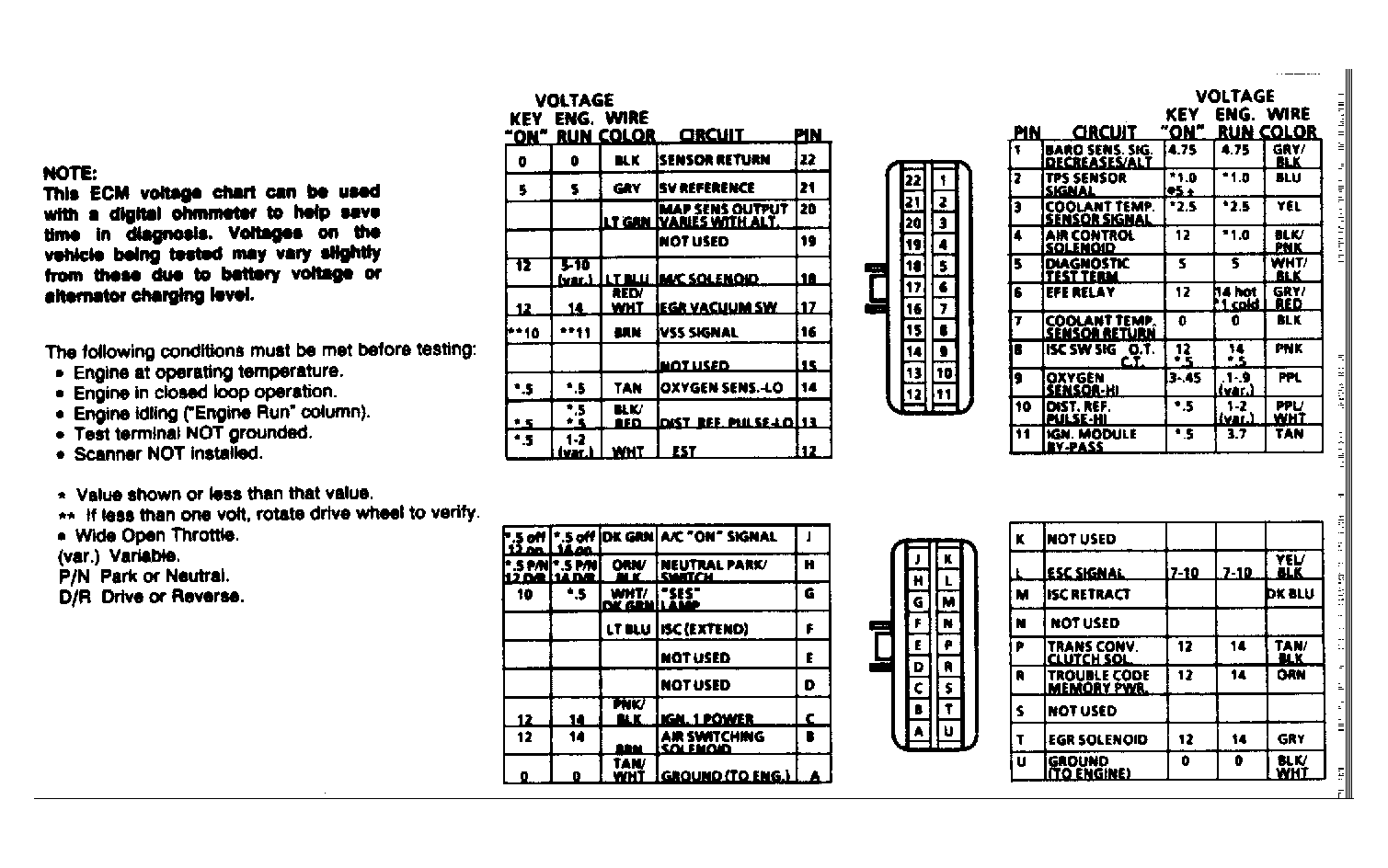

Fig 1: ECM Terminal Pin Voltage (1986 3.8L VIN A)

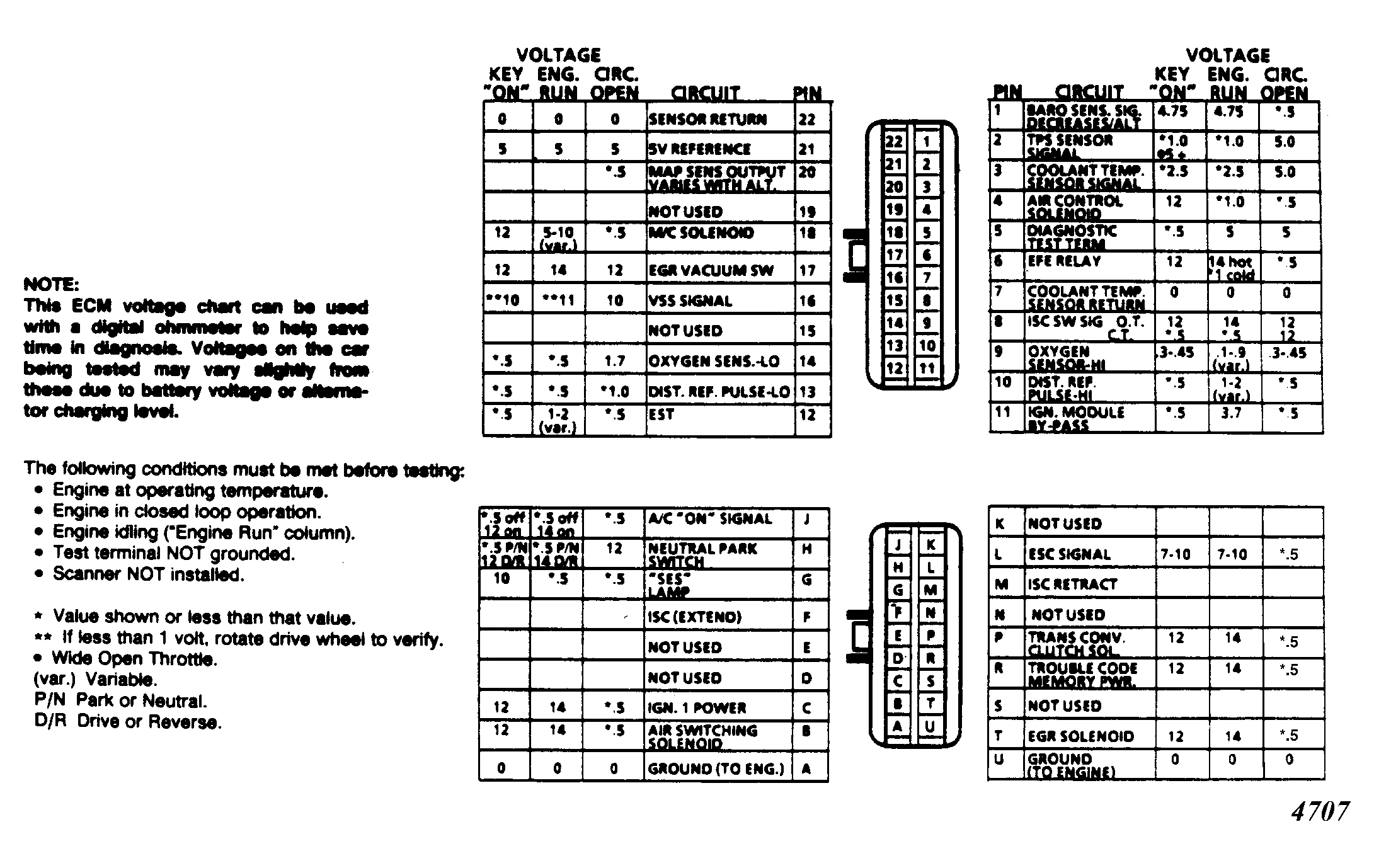

Fig 2: ECM Terminal Pin Voltage (1987 3.8L VIN A)
