Firebird Base, 2.8 S, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
5.0L Feedback Carburetor Tests W/Codes
>>
ECM Terminal Identification
ECM Terminal Identification

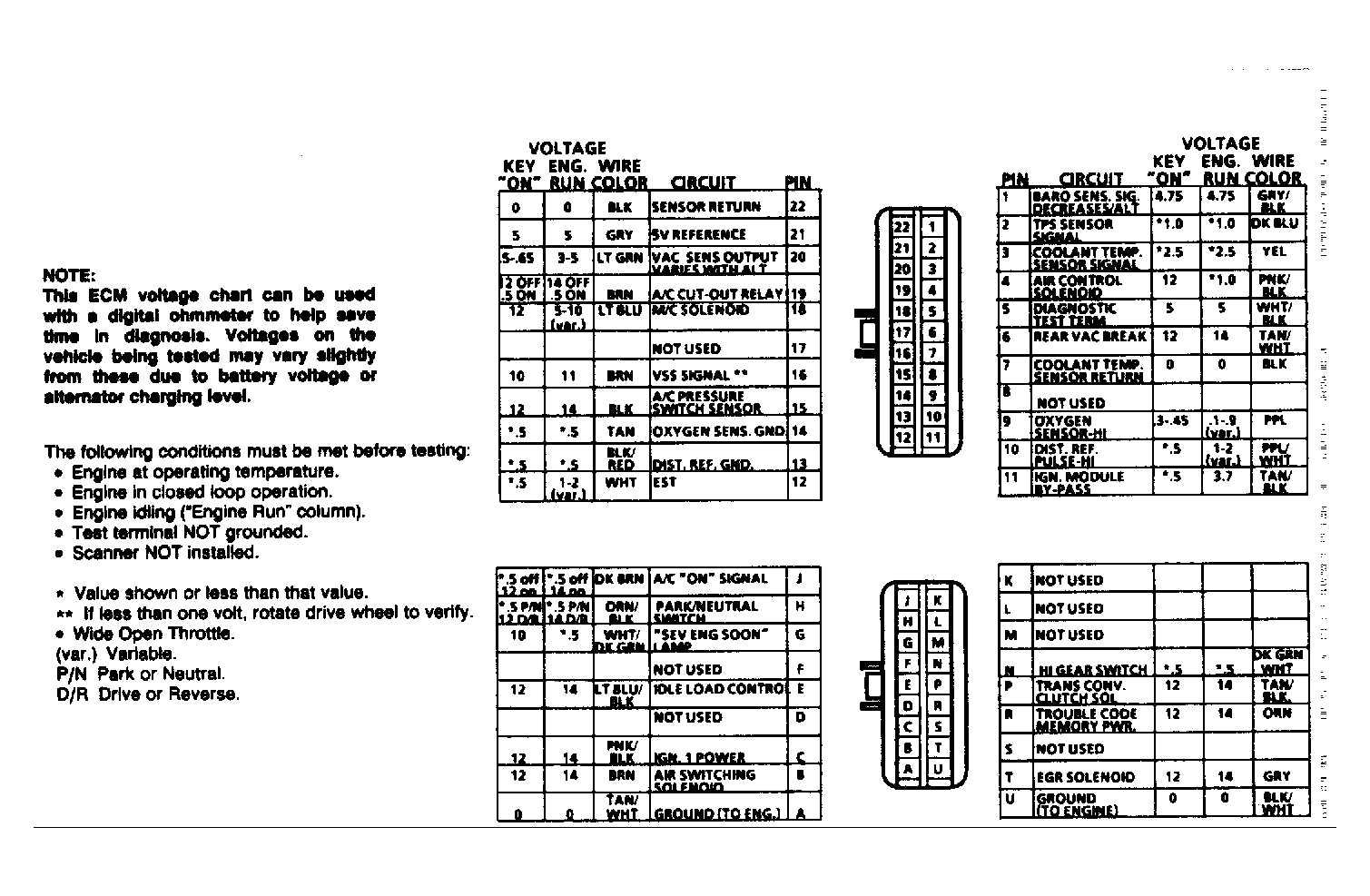

Fig 1: ECM Terminal Pin Voltage (1986 5.0L VIN G & H)

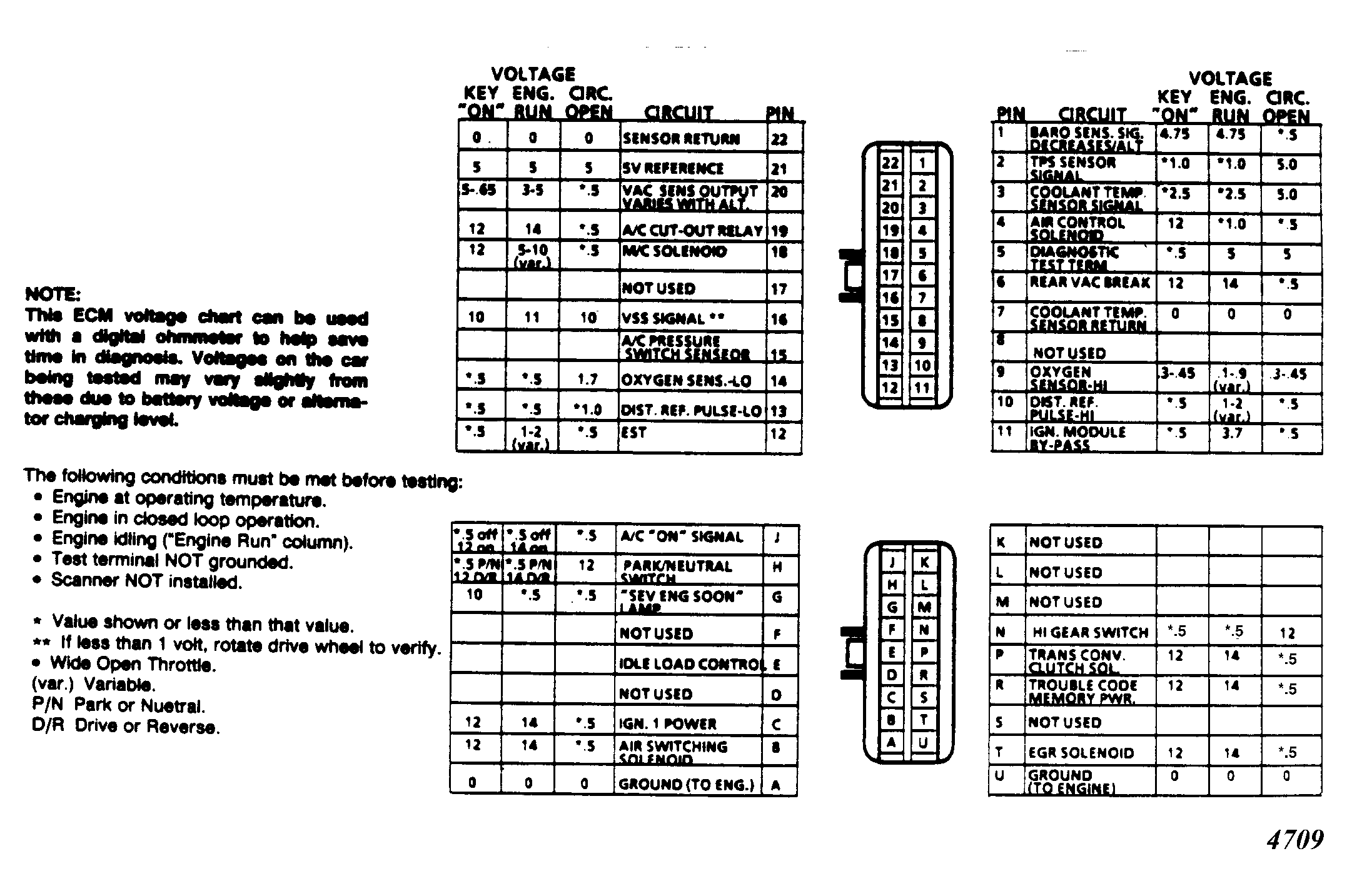

Fig 2: ECM Terminal Pin Voltage (1986 5.0L VIN Y & 9)

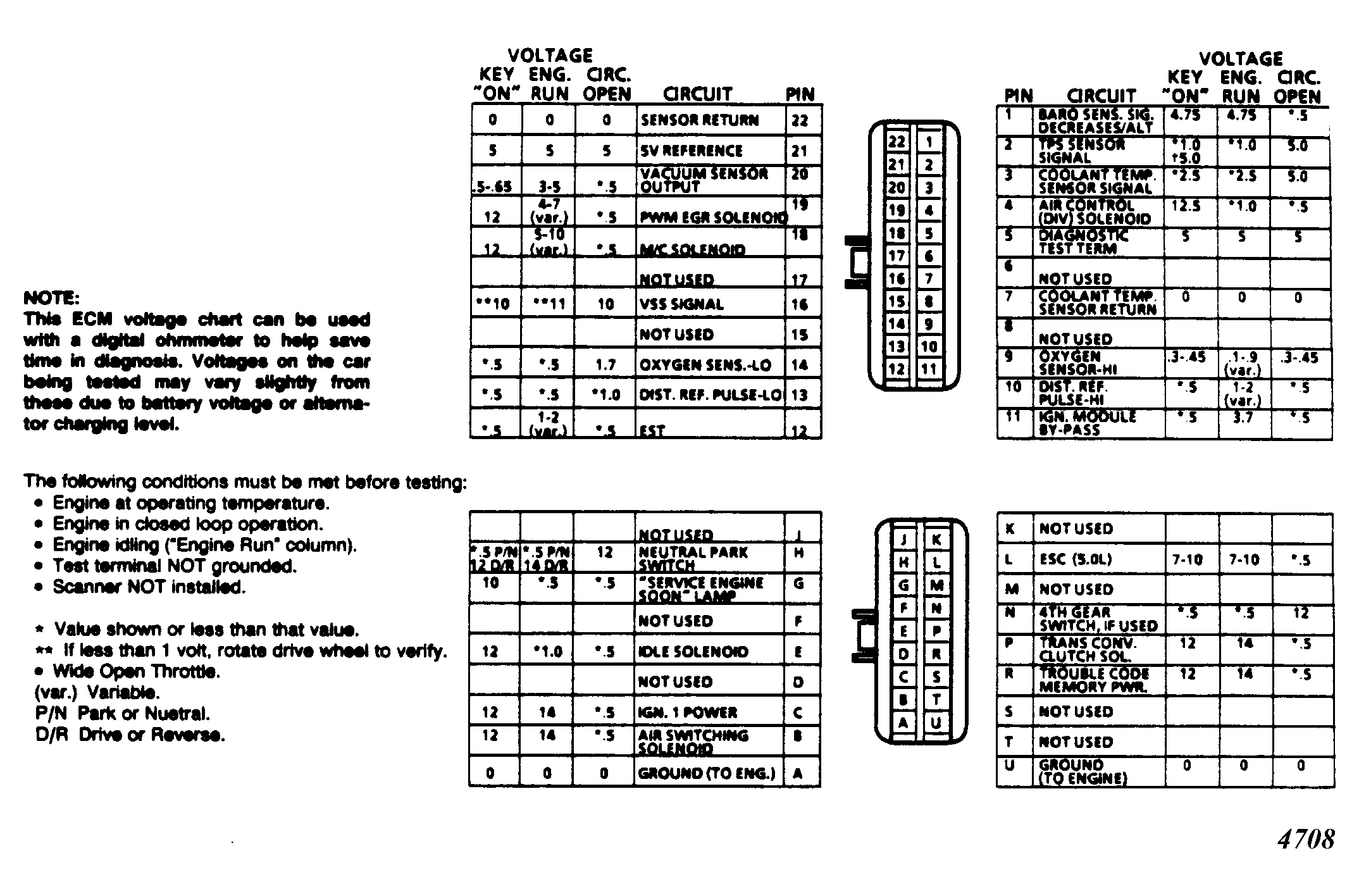

Fig 3: ECM Terminal Pin Voltage (1987 5.0L VIN G & H)

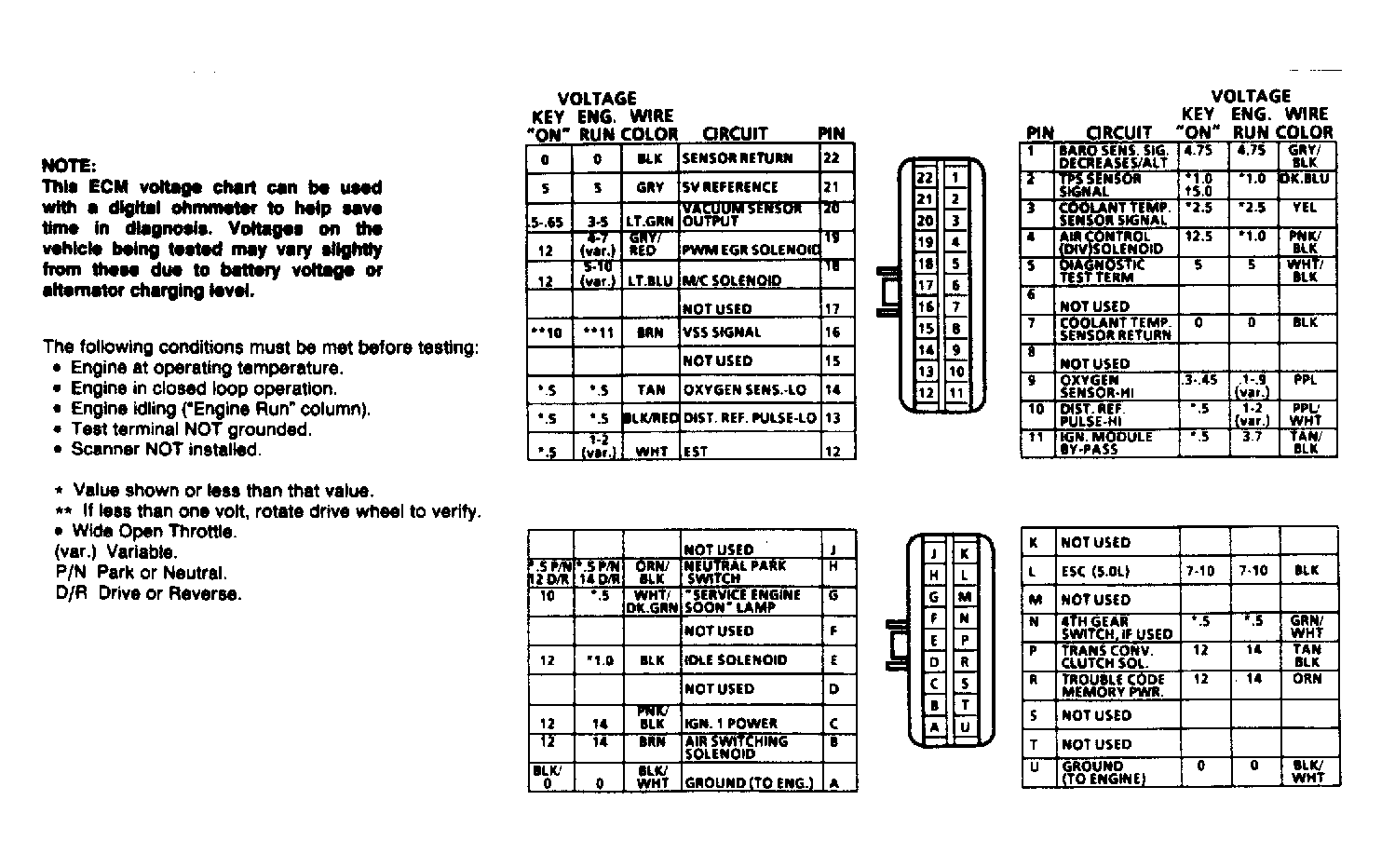

Fig 4: ECM Terminal Pin Voltage (1987 5.0L VIN Y & 9)
