Home >> Pontiac >> 1986 >> Grand Prix Base, 3.8 A >> Repair and Diagnosis >> Engine Performance >> System >> 4.3L TBI Tests W/Codes >> Component Locations

Component Locations

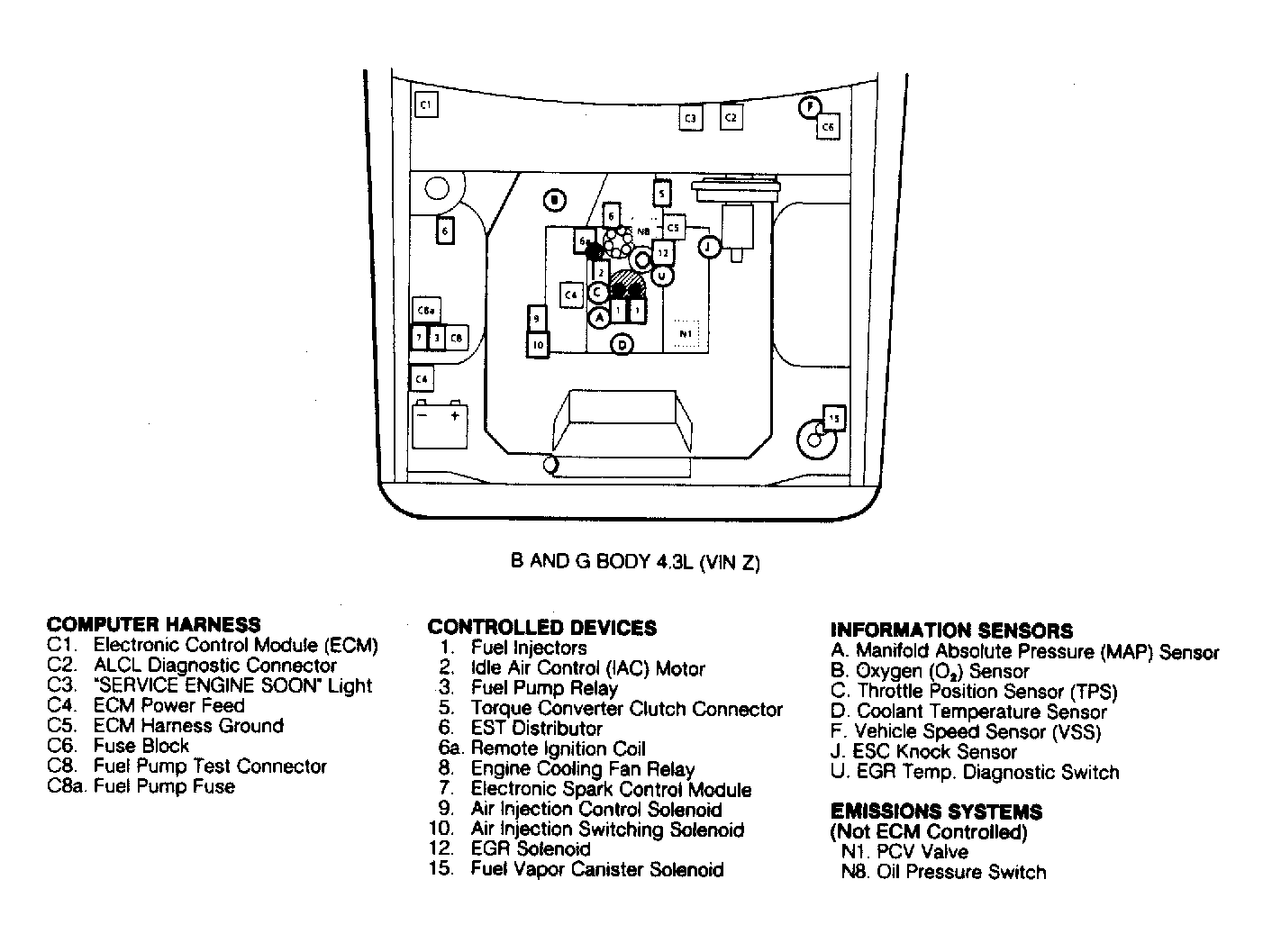

Fig 1: TBI Component Locations (4.3L "B" & "G" Bodies)

G4823
