Wiring Diagrams

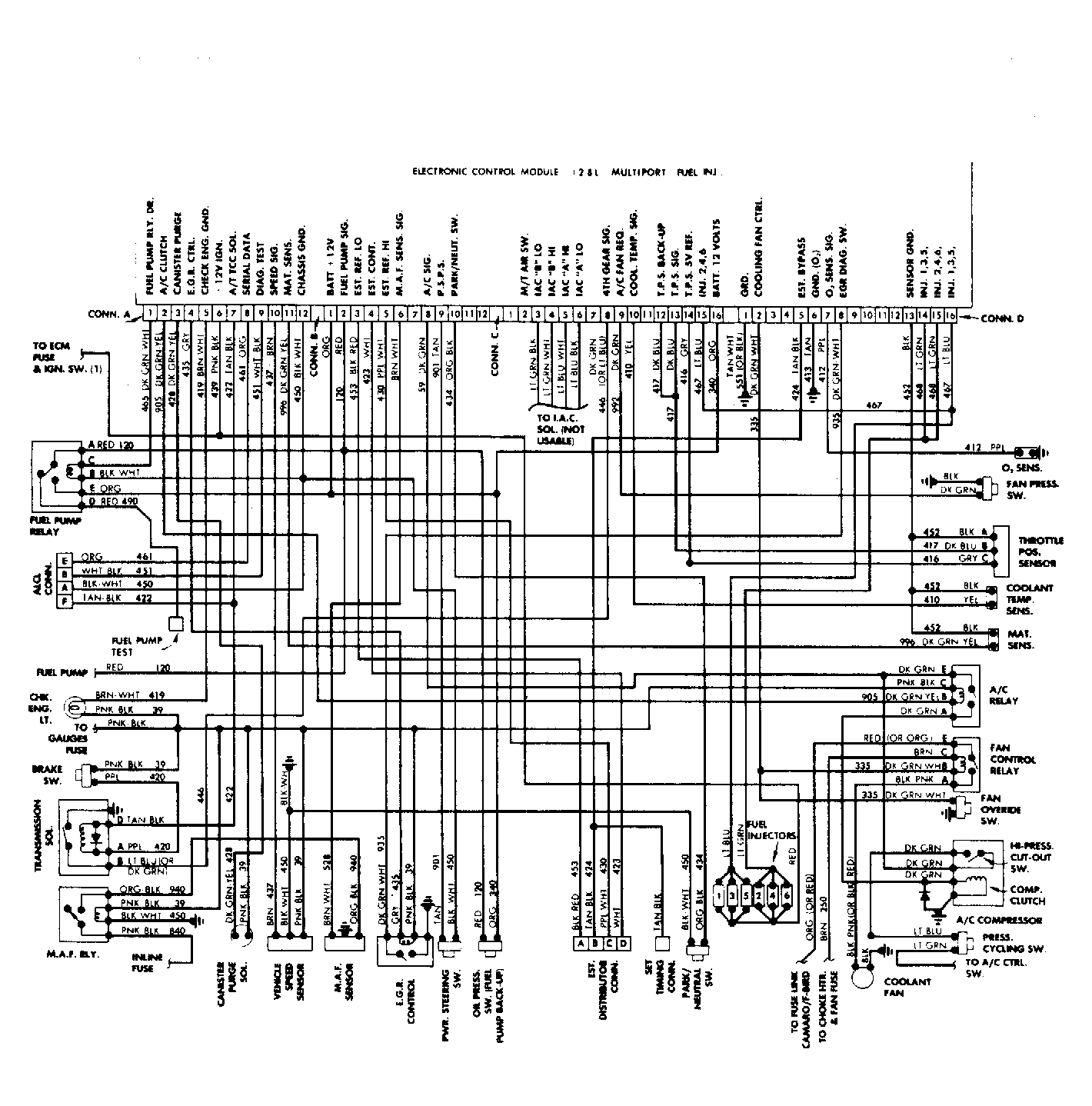

Fig 1: FWD PFI CCC Wiring Diagram

G4991

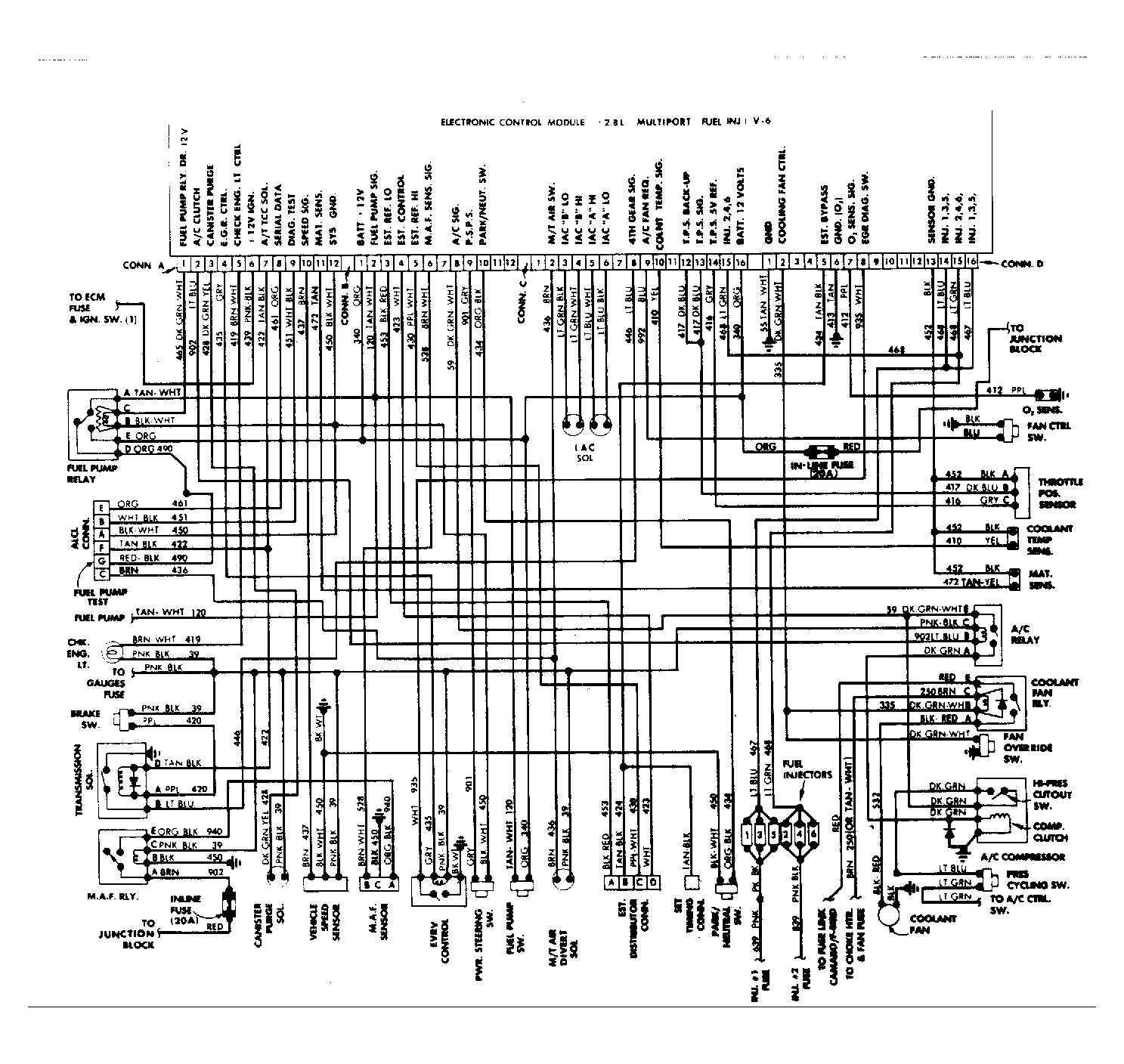

Fig 2: RWD PFI CCC Wiring Diagram

G4992

Fig 3: Fiero PFI CCC Wiring Diagram

G4993
