Wiring Diagrams

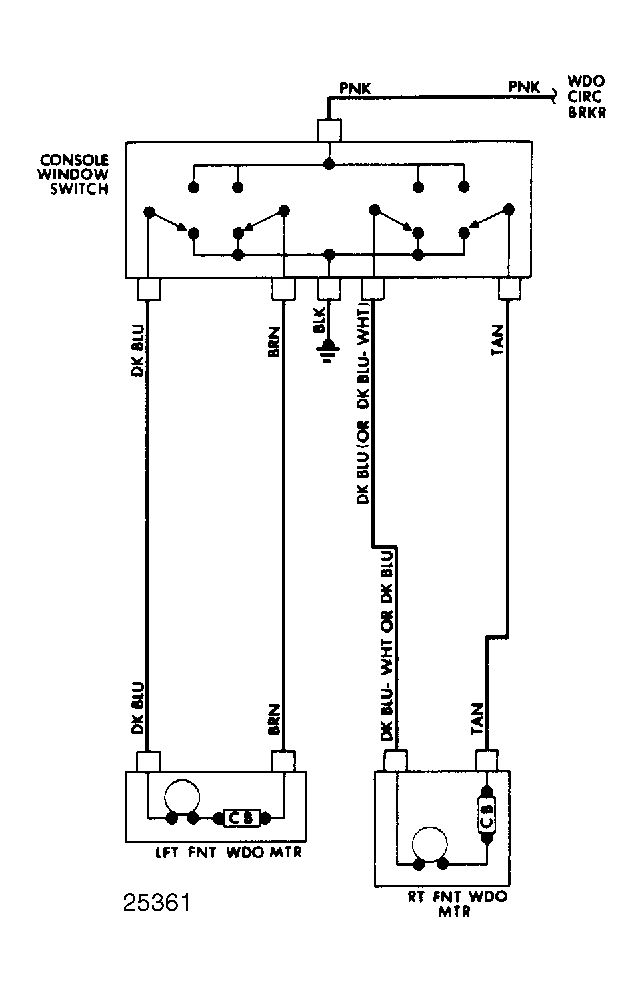

Fig 1: Corvette Power Window Wiring Diagram

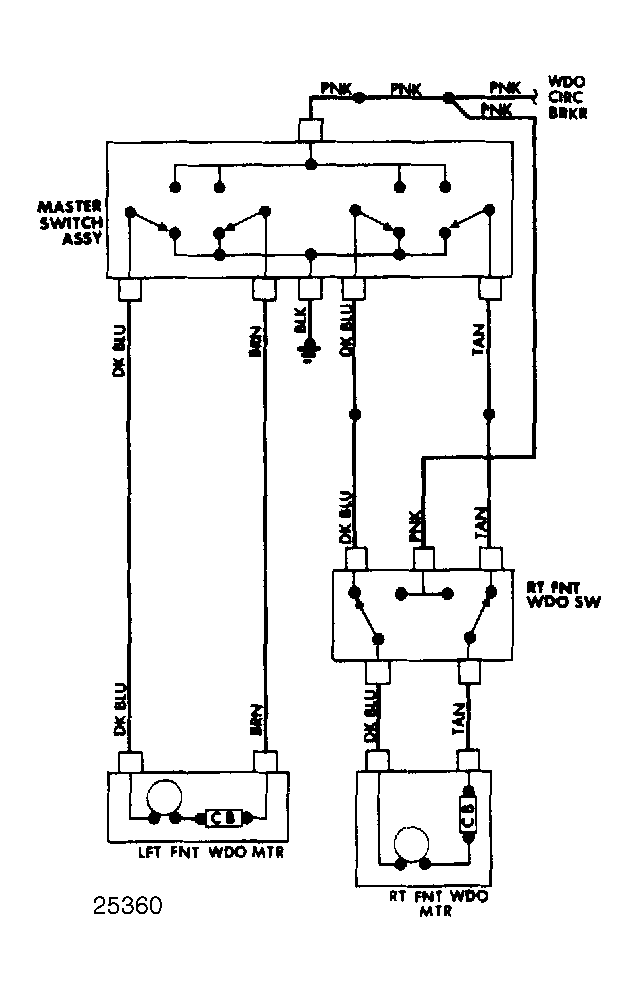

Fig 2: Calais, Celebrity, Century, Cutlass Ciera, Skyhawk & 6000 2-Door Power Window Wiring Diagram

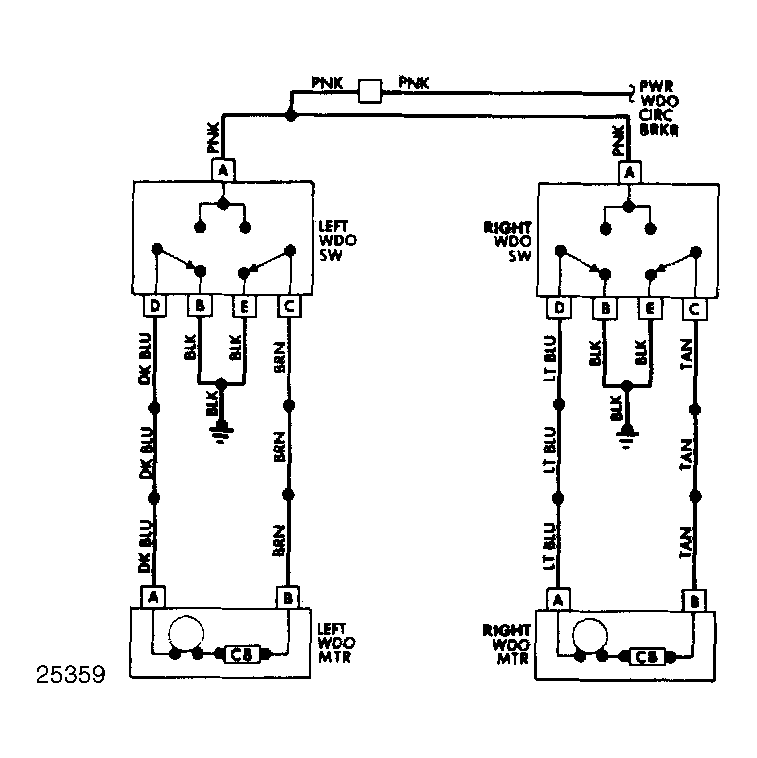

Fig 3: Cavalier, Somerset & Skylark 2-Door Power Window Wiring Diagram

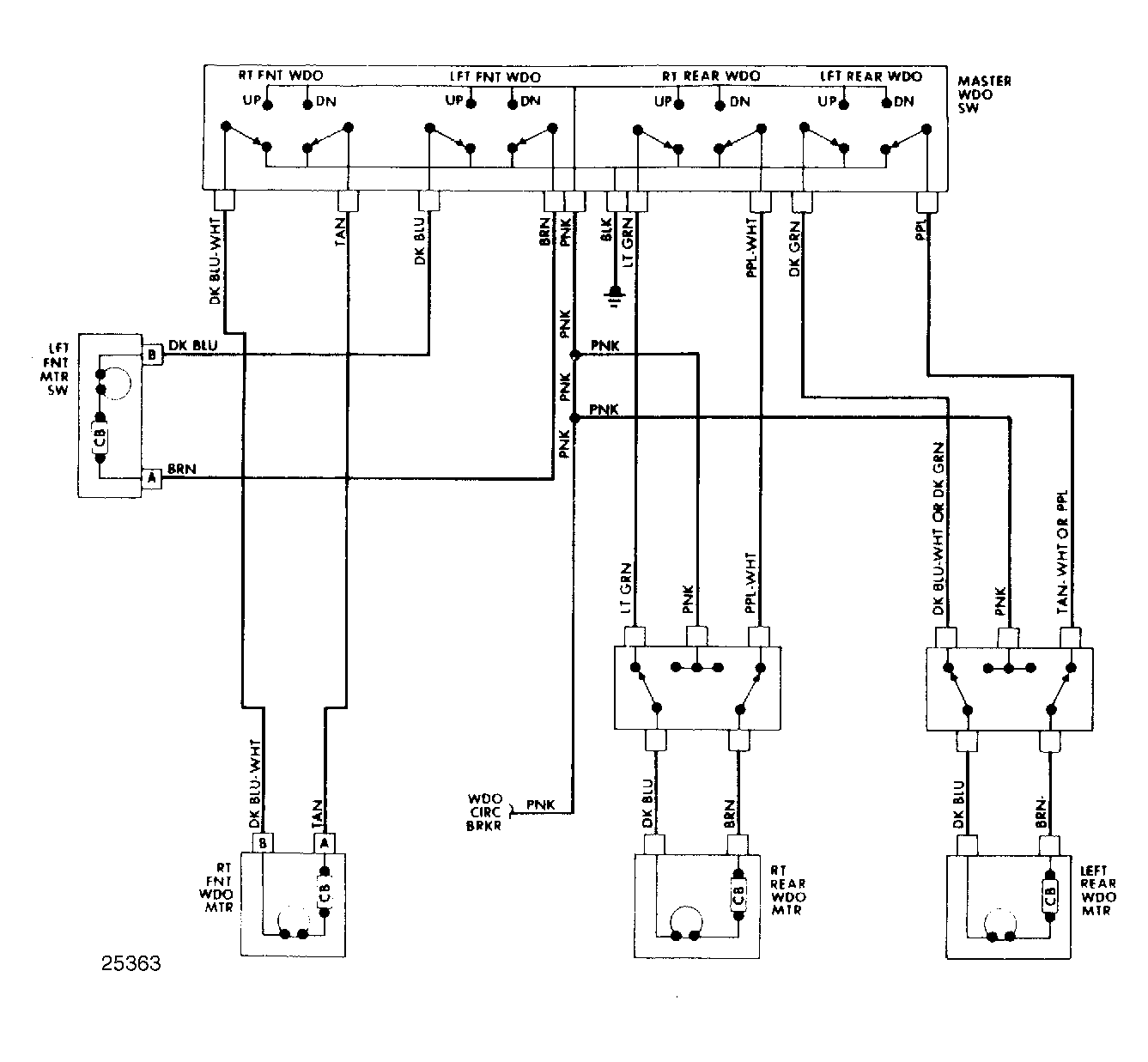

Fig 4: Fiero 2-Dr. Power Window Wiring Diagram

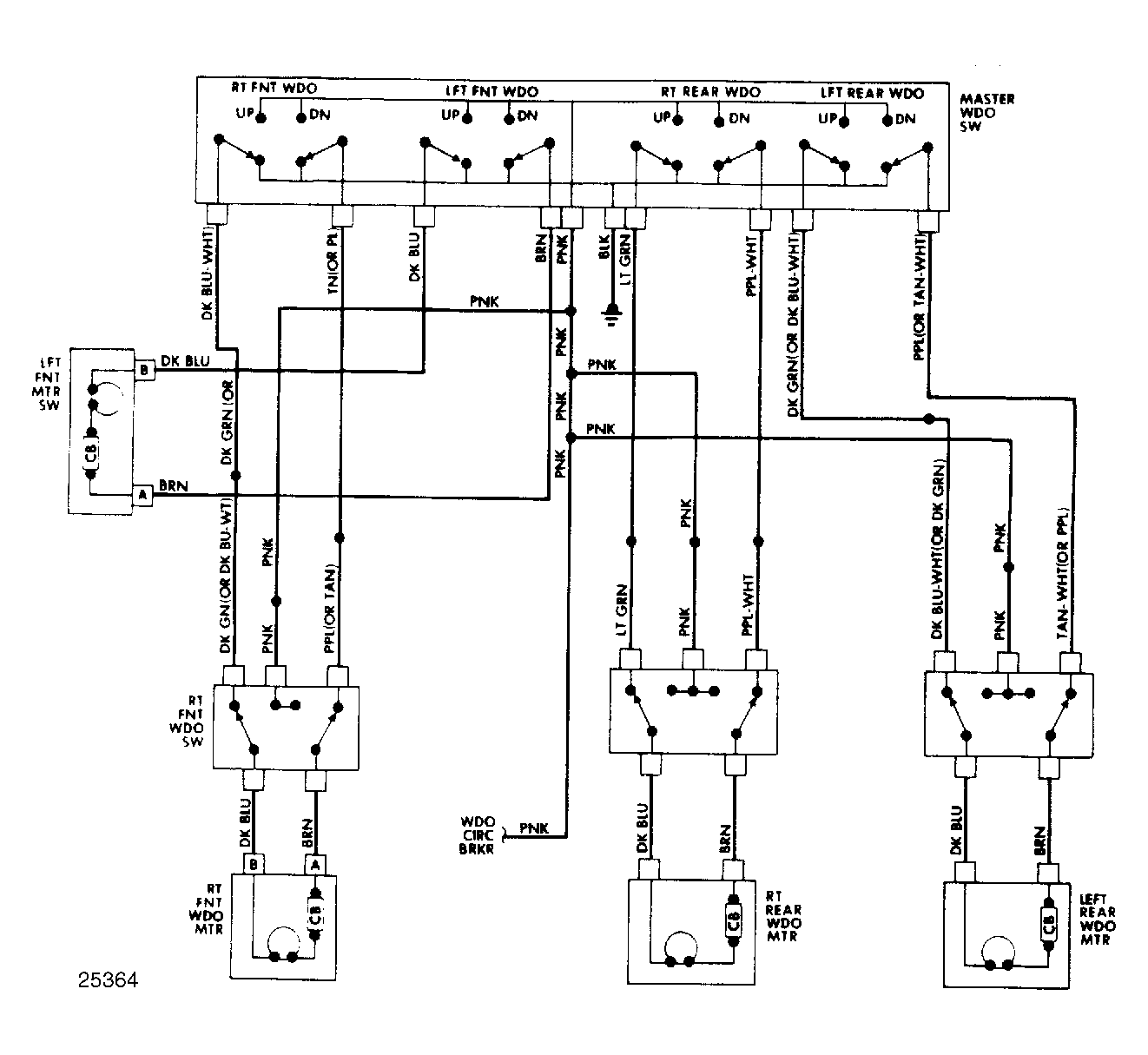

Fig 5: Calais, Grand Am, Somerset & Skylark 4-Door Power Window Wiring Diagram

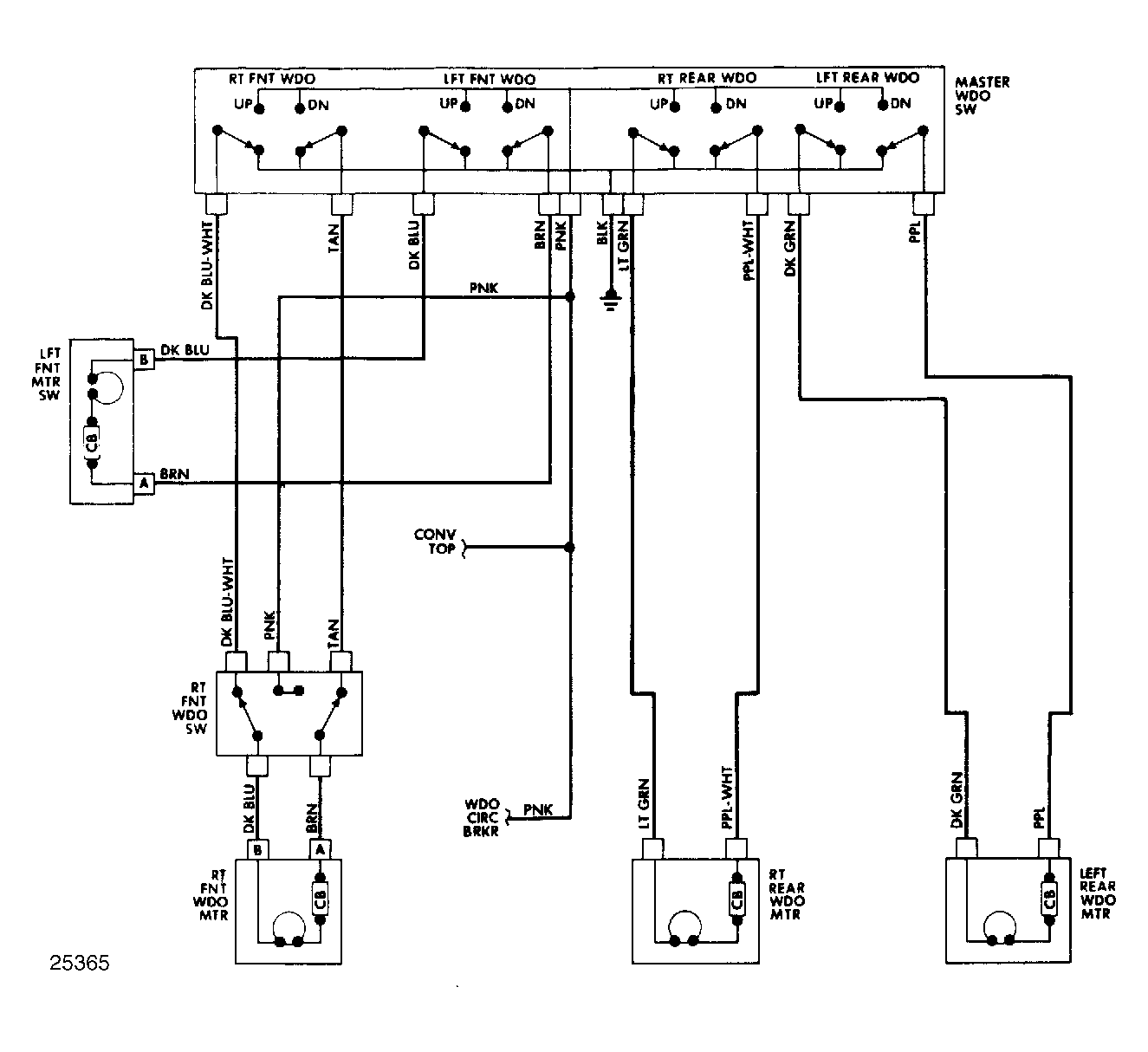

Fig 6: Cavalier, Celebrity, Cimarron, Firenza, Skyhawk, Sunbird, 6000 & 6000 STE 4-Door Power Window Wiring Diagram

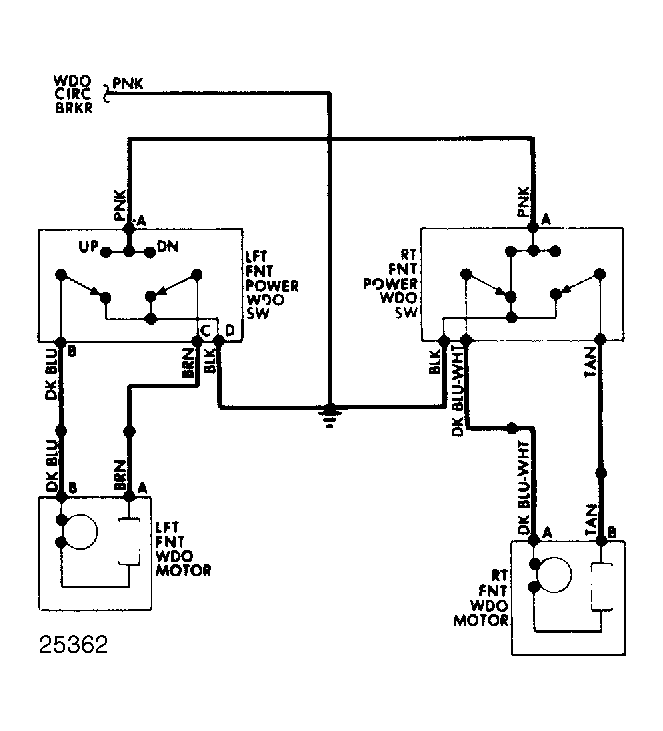

Fig 7: Sunbird with Convertible Top (4-Door) Power Window Wiring Diagram
