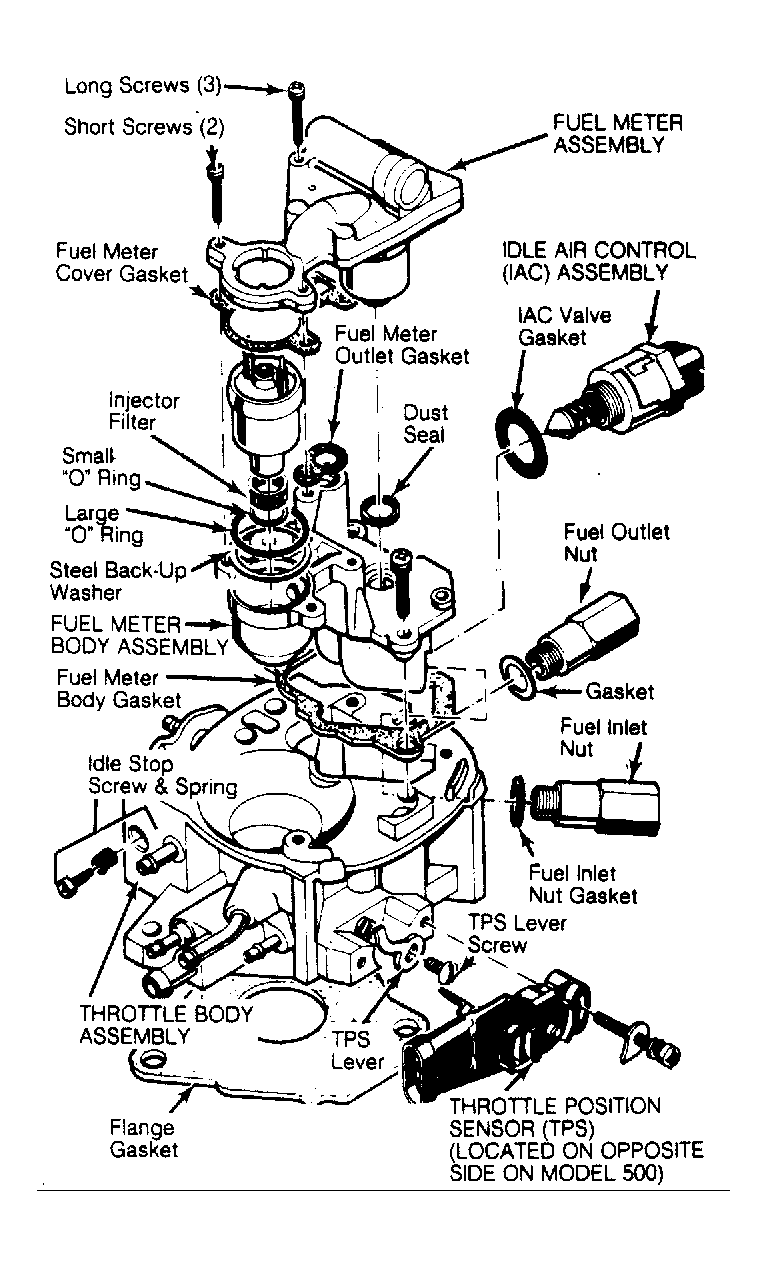

Throttle Body Cover
WARNING:
DO NOT
remove screws attaching pressure regulator to cover. Pressure regulator includes spring under heavy tension which may cause personal injury if released. DO NOT
immerse cover and regulator assembly in any type of cleaning solvent.
- Remove air cleaner. Disconnect injector electrical lead by squeezing tabs together and pulling lead straight up. Remove 5 screws holding cover to throttle body, noting location of 2 short screws.
- Remove throttle body cover. Throttle body cover and pressure regulator are serviced as assembly. DO NOT immerse cover in any type of cleaning solvent.
