Sunbird S, Standard, MY7
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
1.8L Turbo Tests W/Codes
>>
Chart C12 - Coolant Fan Control Circuit
Chart C12 - Coolant Fan Control Circuit
Fig 1: Flow Chart C12 (1 of 3), Coolant Fan Control Circuit
Fig 2: Flow Chart C12 (2 of 3), Coolant Fan Control Circuit

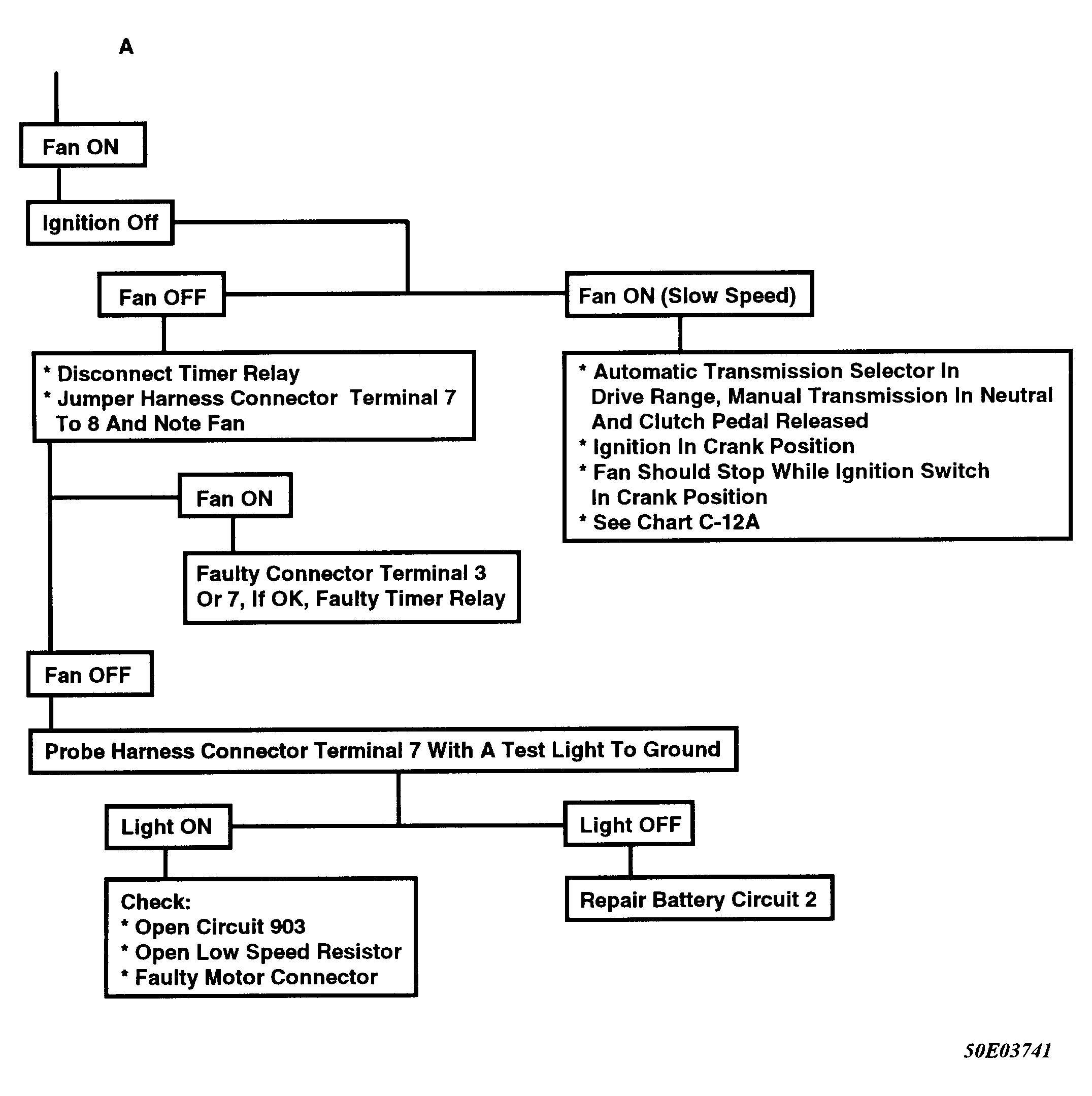

Fig 3: Flow Chart C12 (3 of 3), Coolant Fan Control Circuit

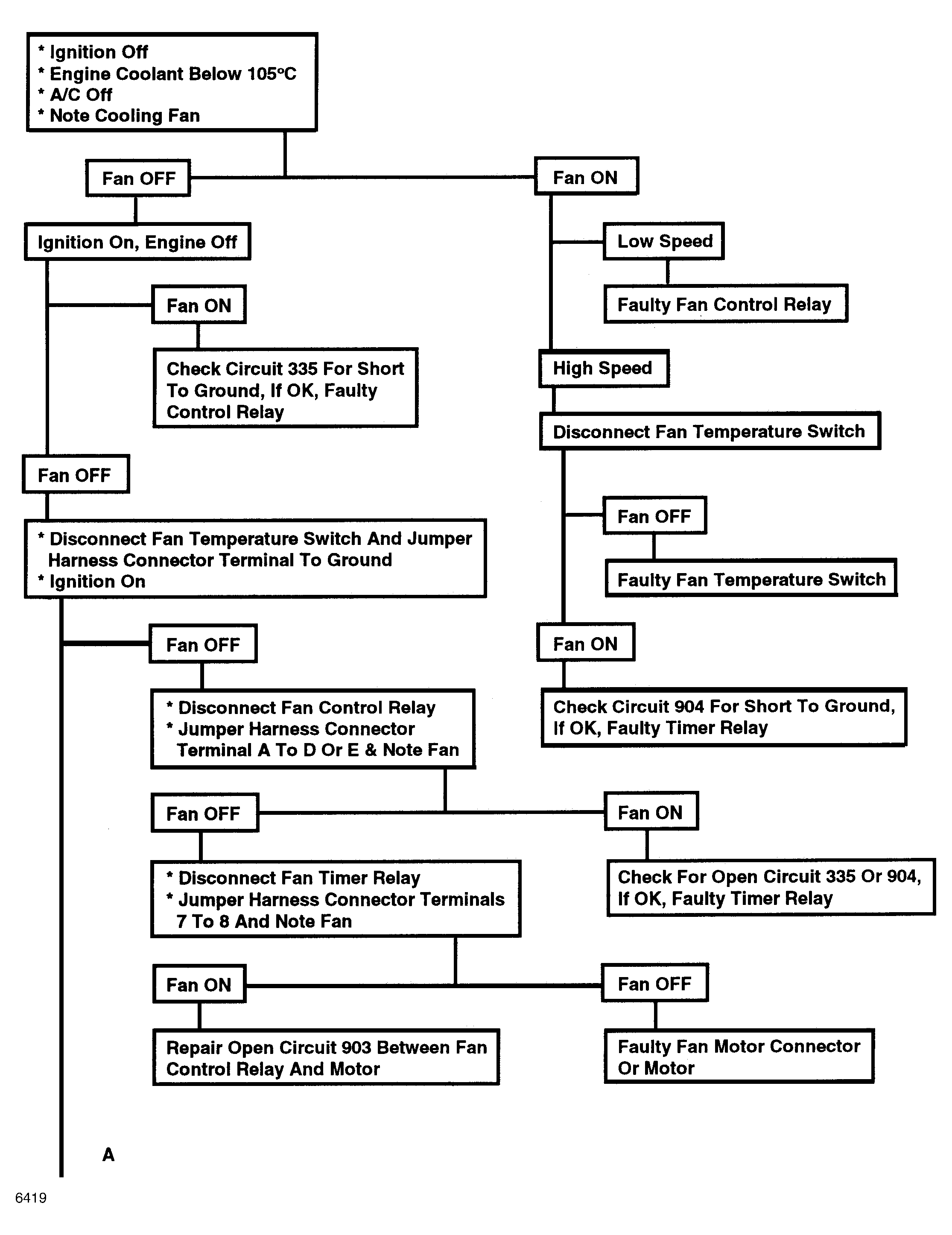

Fig 4: Flow Chart C12 (2 of 4), Coolant Fan Control Circuit

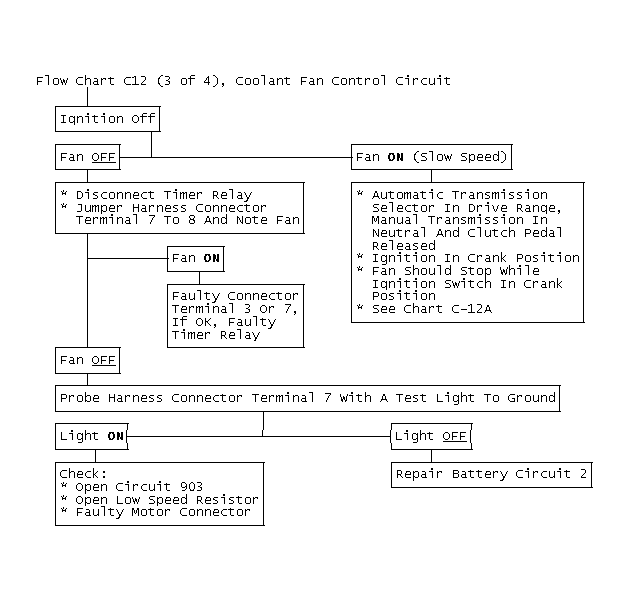

Fig 5: Flow Chart C12 (3 of 4), Coolant Fan Control Circuit

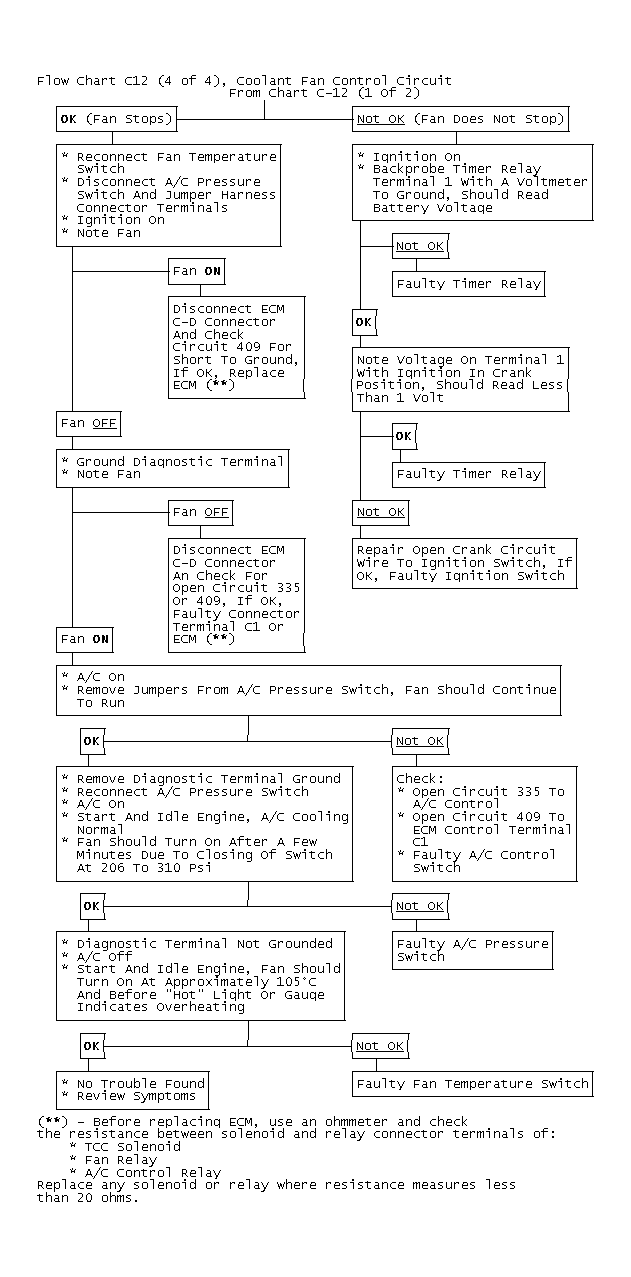

Fig 6: Flow Chart C12 (4 of 4), Coolant Fan Control Circuit
