Regular View

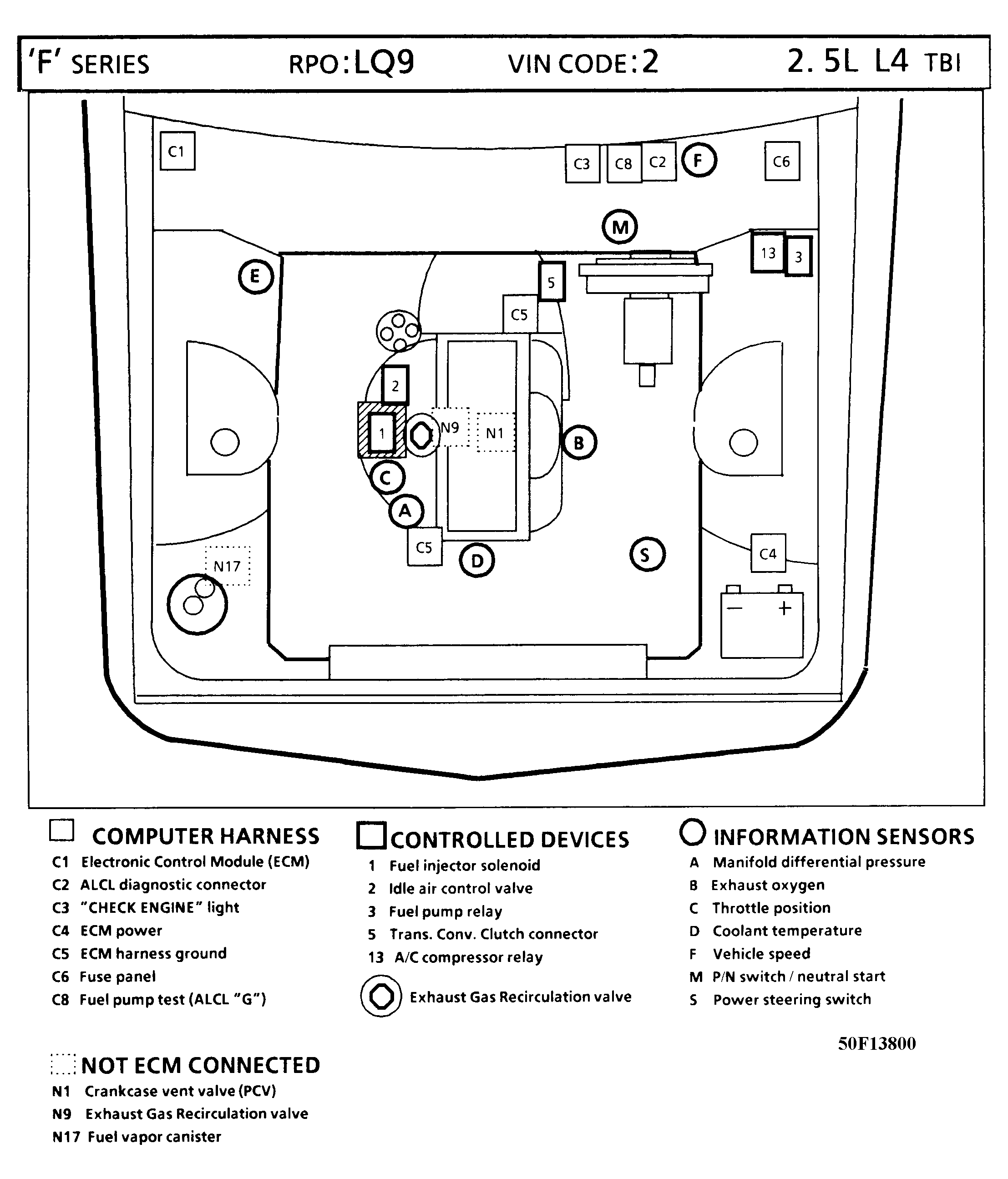

Fig 1: Engine-Related Component Location (2.5L VIN 2)
G50F13800Courtesy of GENERAL MOTORS CORP.
