Chart C2C - Idle Load COMPENSATOR

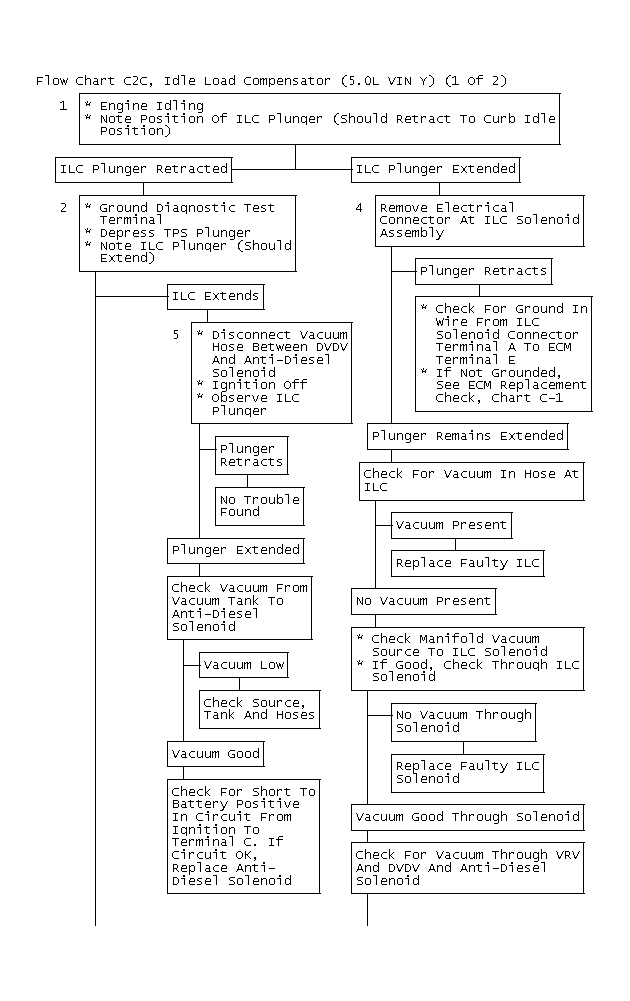

Fig 1: Flow Chart C2C, Idle Load Compensator (5.0L VIN Y) (1 Of 2)

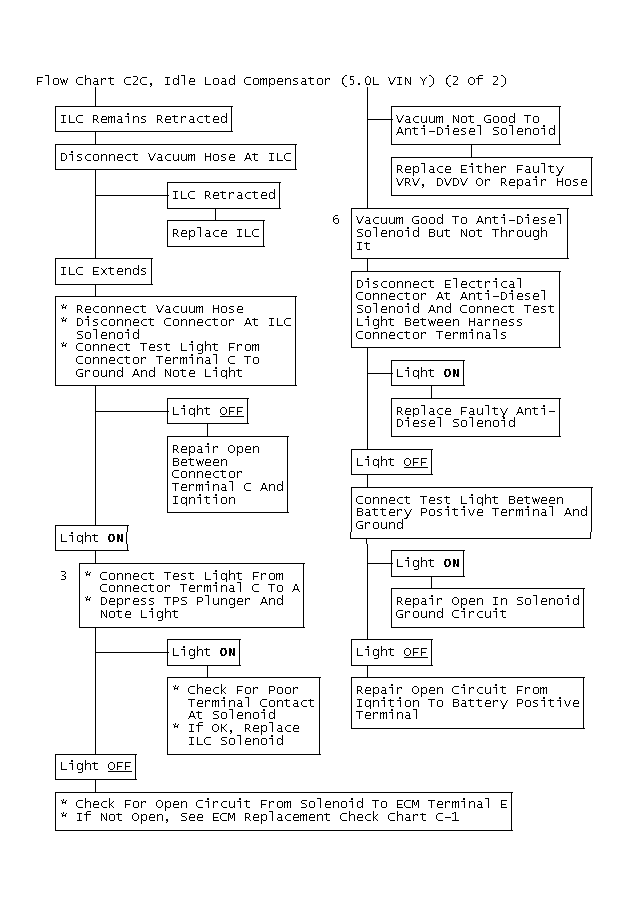

Fig 2: Flow Chart C2C, Idle Load Compensator (5.0L VIN Y) (2 Of 2)

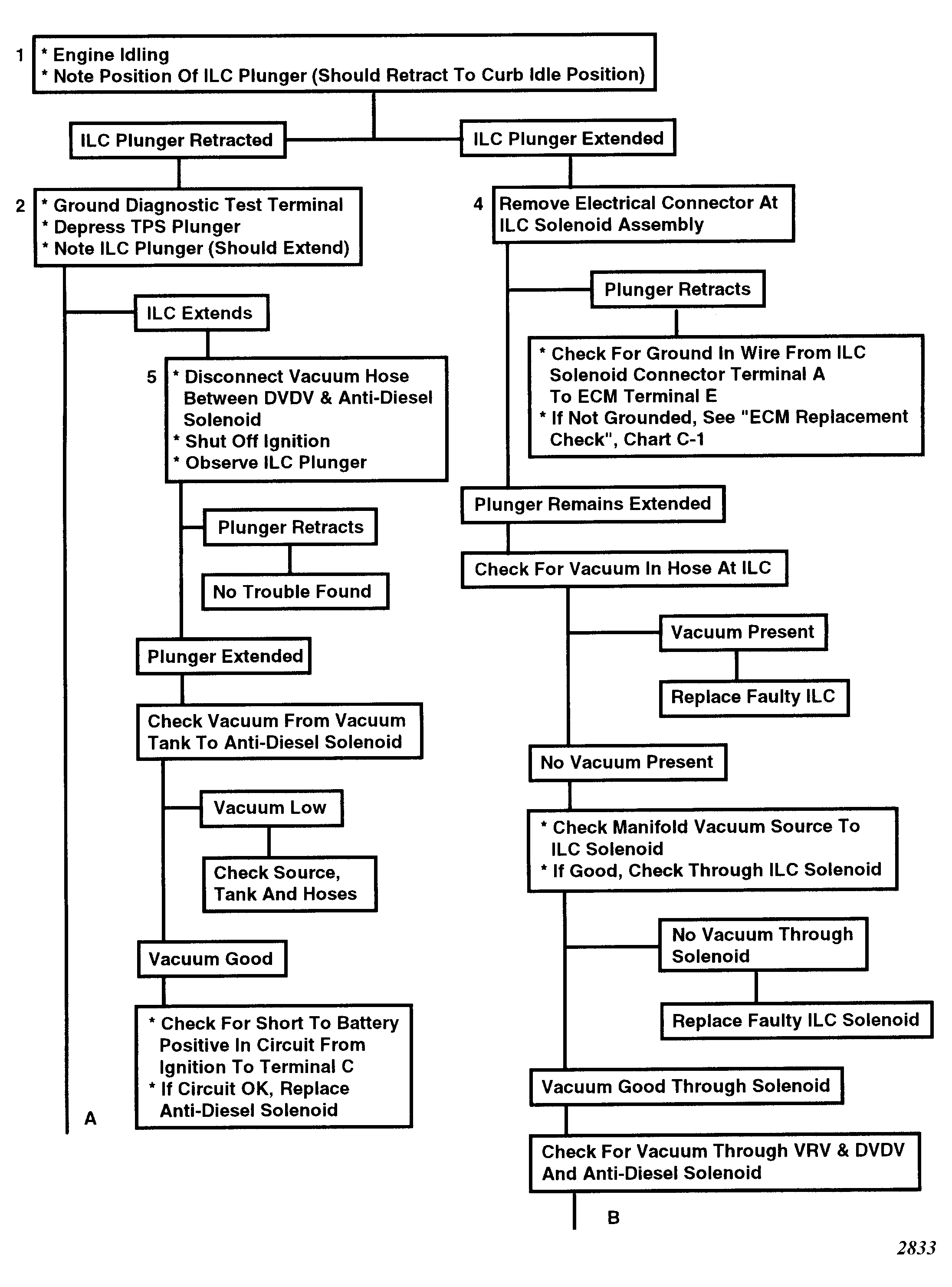

Fig 3: Flow Chart C2C, Idle Load Compensator (5.0L VIN Y) (1 Of 2)

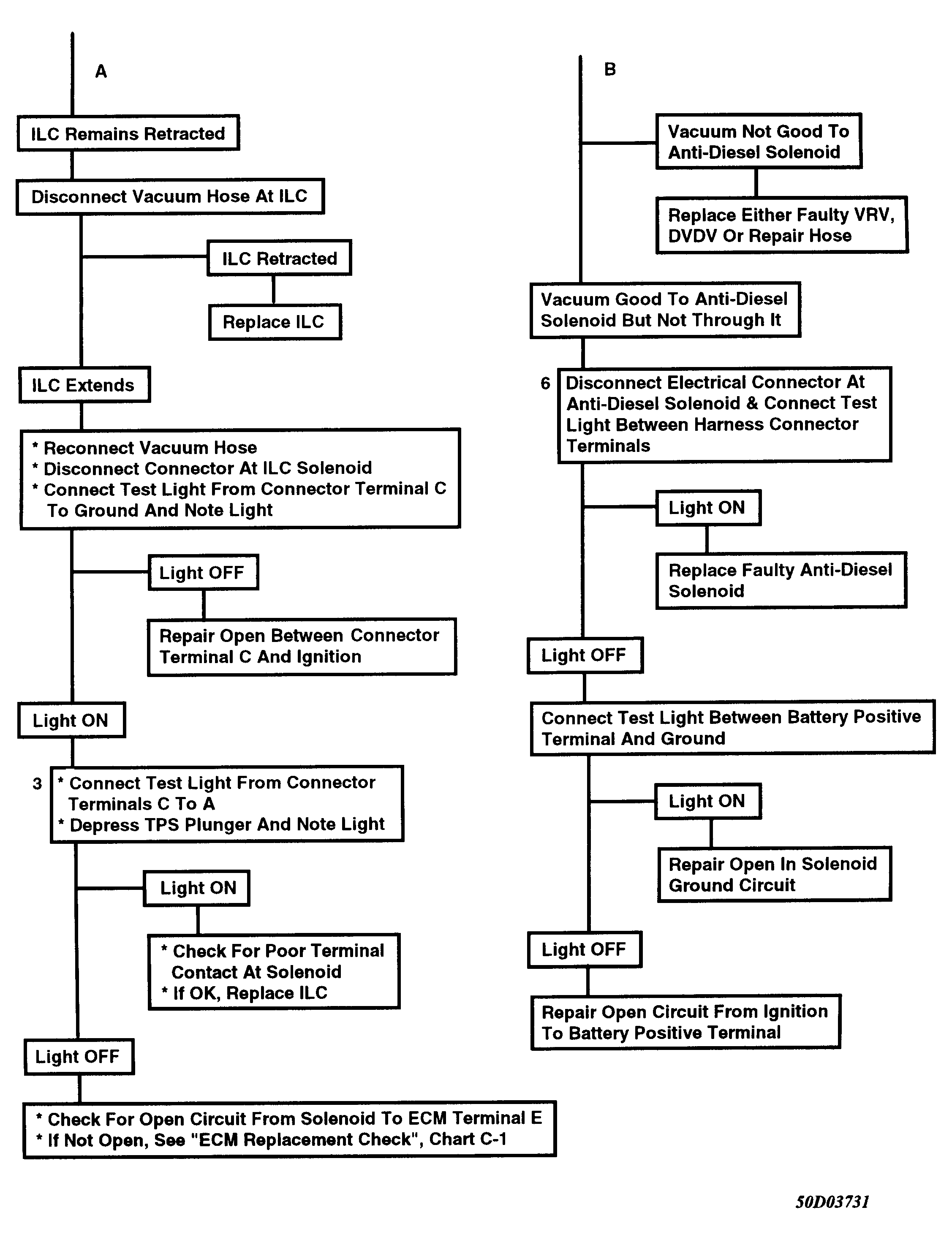

Fig 4: Flow Chart C2C, Idle Load Compensator (5.0L VIN Y) (2 Of 2)

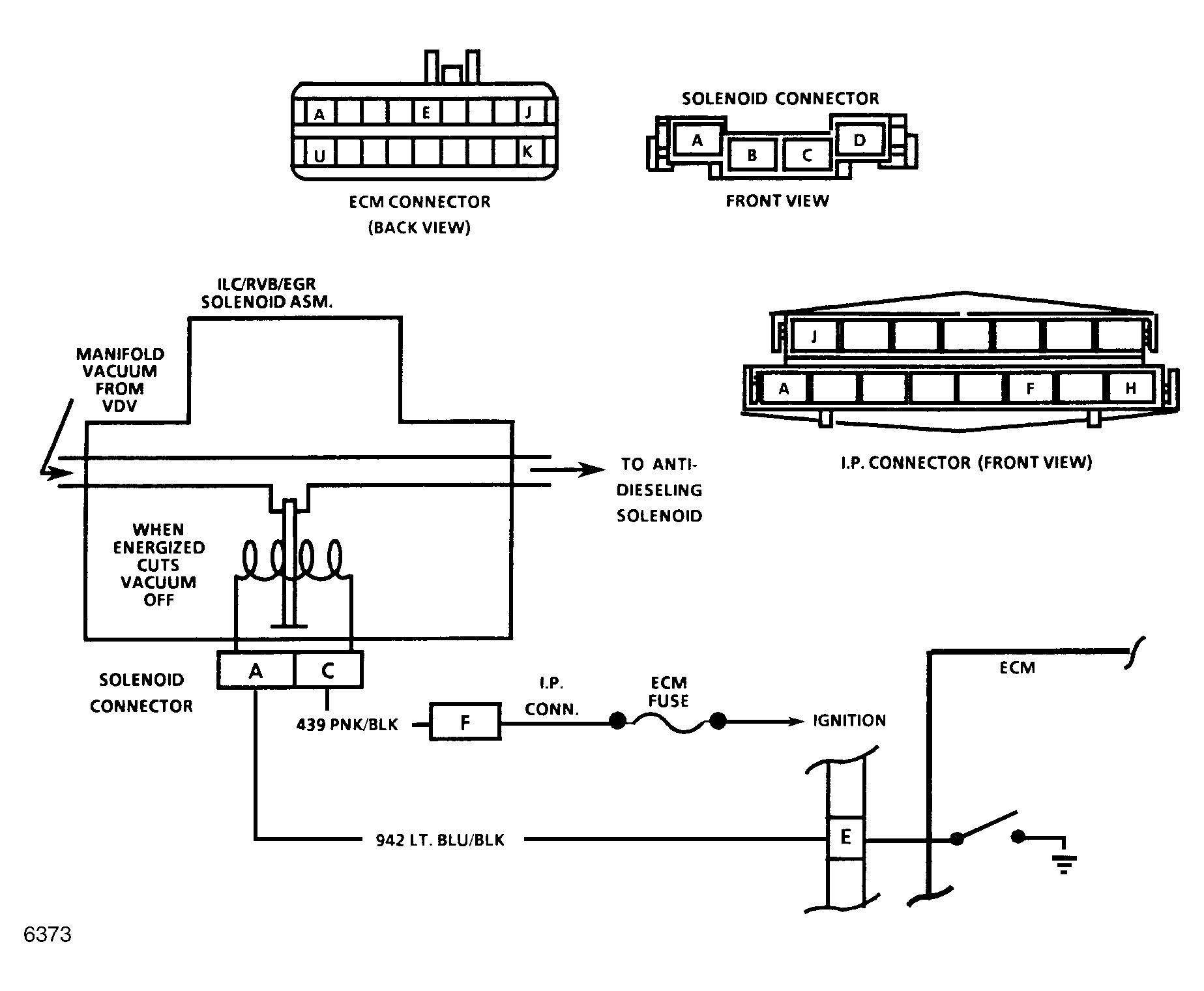

Fig 5: Chart C2C, Idle Load Compensator Ckt Diagram (5.0L VIN Y)
