Home >> Pontiac >> 1985 >> Fiero GT, Standard >> Repair and Diagnosis >> Engine Performance >> System >> 2.8L/5.0L/5.7L PFI Tests >> Testing >> Chart C2A - Injector Balance Test

Chart C2A - Injector Balance Test

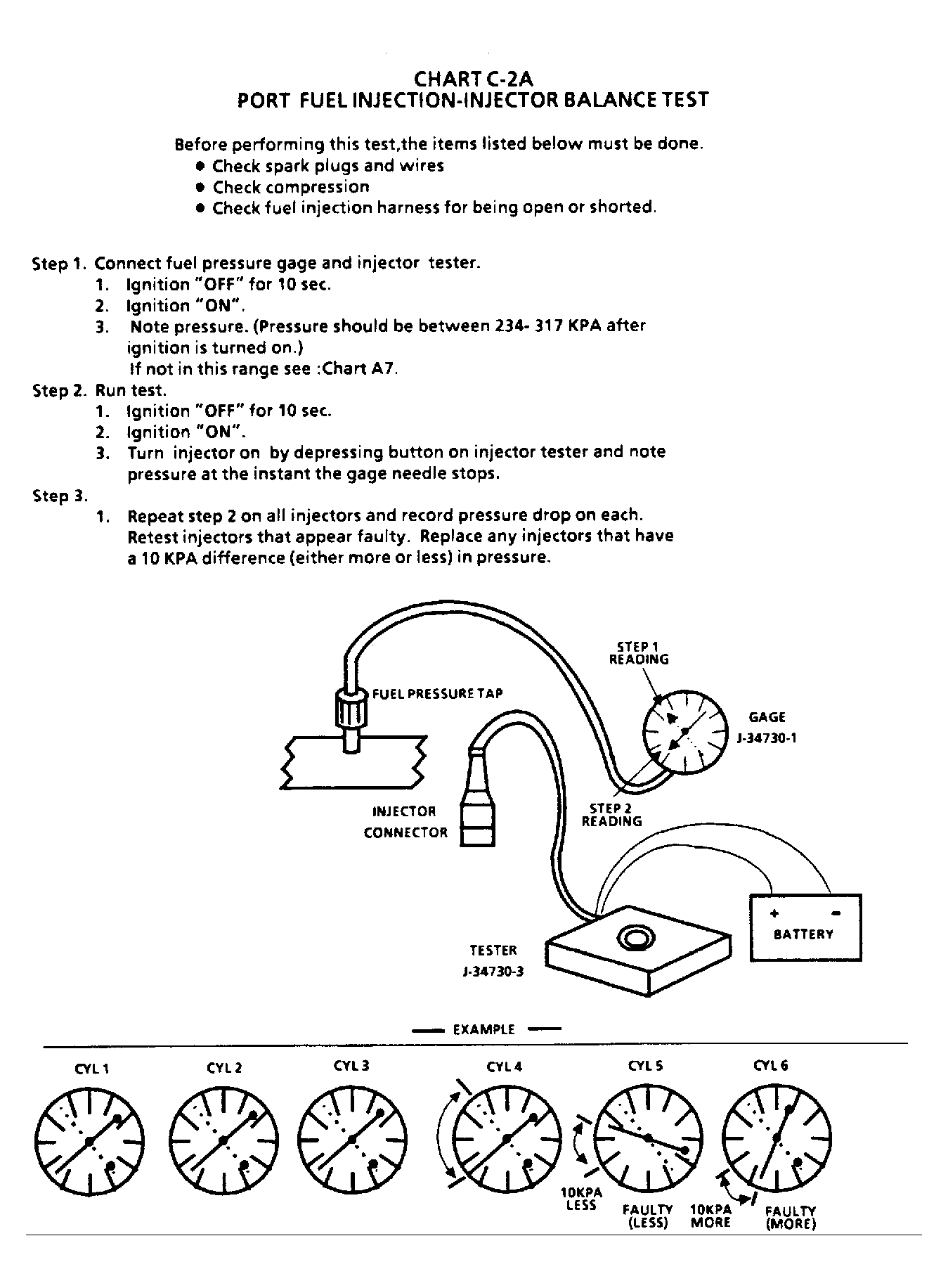

Fig 1: Chart C2A (All Engines) - Injector Balance Test

G6438
