Chart C-2A: Idle Speed Control (ISC) Check

Fig 1: Chart C-2A: Idle Speed Control (ISC) Check Flow Chart 1 Of 2
G6311
Fig 2: Chart C-2A: Idle Speed Control (ISC) Check Flow Chart 2 Of 2
G50E03736
Fig 3: Chart C-2A: Idle Speed Control (ISC) Check Flow Chart 1 Of 2
GB0047636

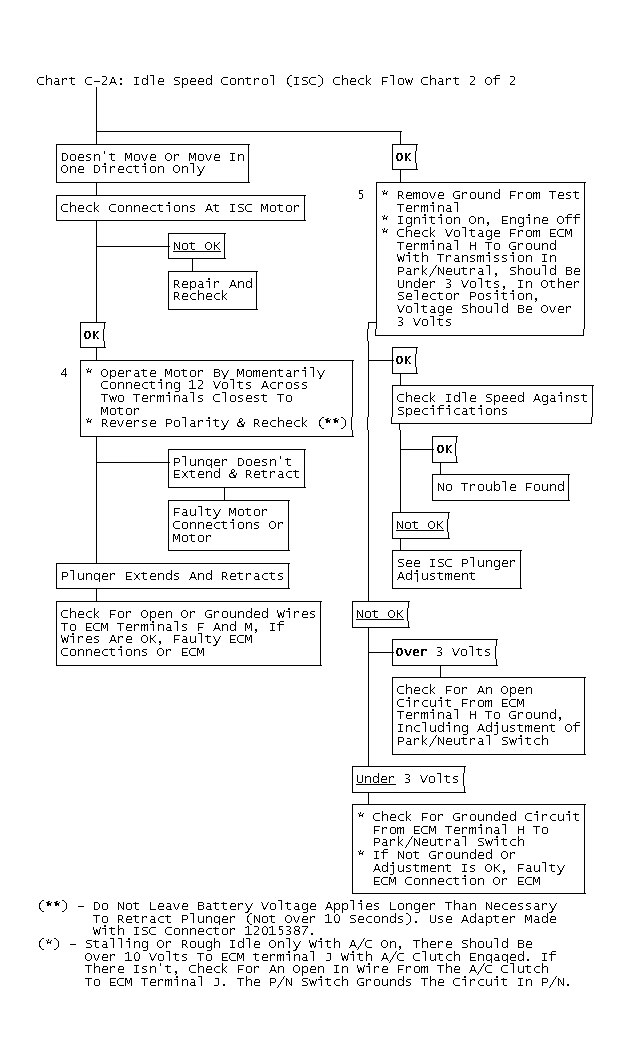

Fig 4: Chart C-2A: Idle Speed Control (ISC) Check Flow Chart 2 Of 2
GB0047637
