Choke Unloader

NOTE: This adjustment is performed using the choke valve angle gauge. See ANGLE GAUGE ADJUSTMENT TOOL  procedure at beginning of ADJUSTMENTS.
  1. Attach rubber band to intermediate choke lever. Open throttle to allow choke valve to close. See Fig 1 .
  2. Set up angle gauge and set angle to specifications. Hold throttle lever in wide open position.
  3. Push on choke shaft lever to open choke valve and to make contact with closing tang. To adjust, bend tang on throttle lever until bubble is centered.
  4. Remove gauge and reinstall choke cover and coil assembly if previously removed. Install service rivet and retainer kit.

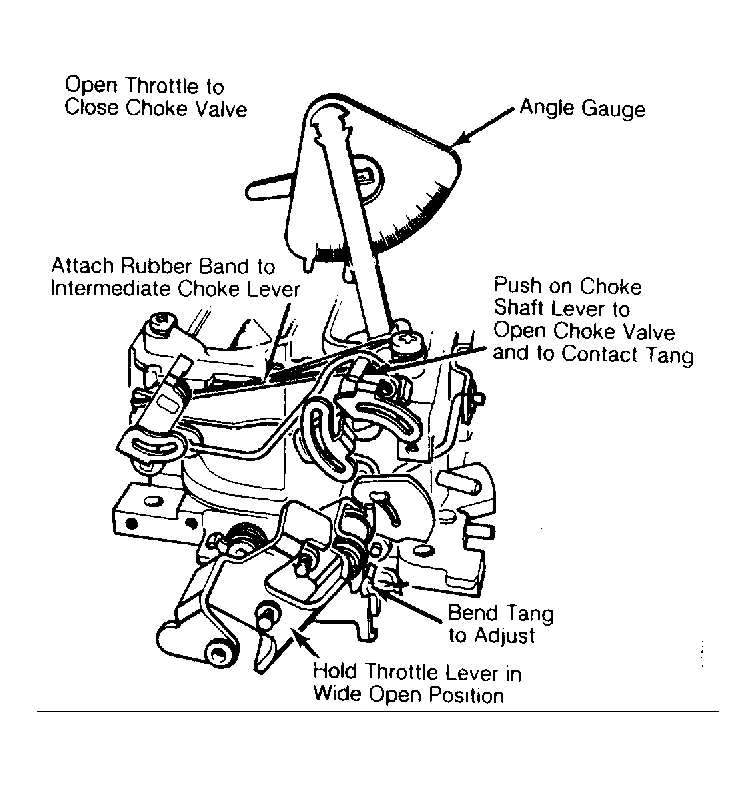

Fig 1: Choke Unloader Adjustment Bend choke unloader tang to adjust.
G3138
