Wiring Diagrams

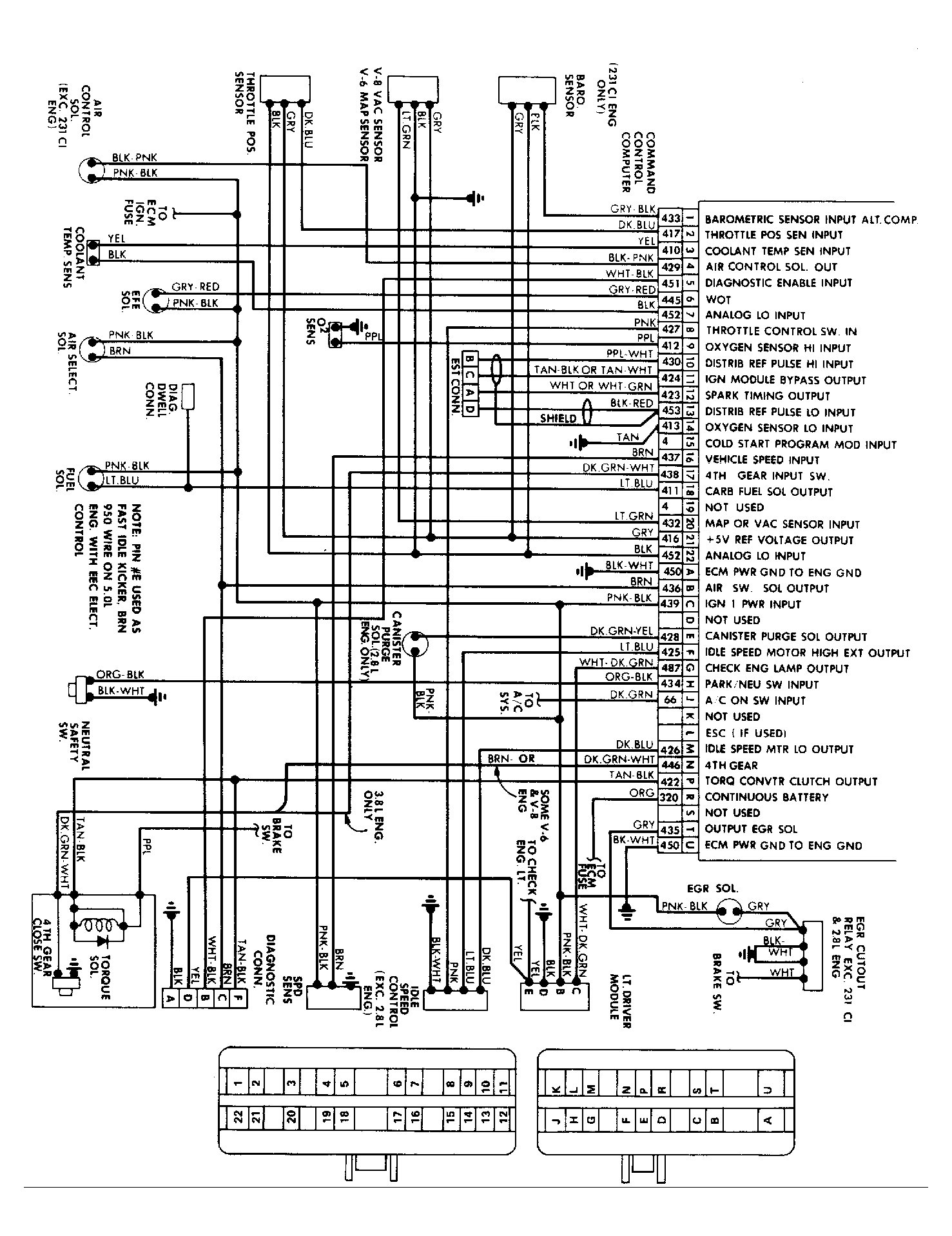

Fig 1: CCC System Wiring Diagram (Except Turbo & "J" Bodies)

G218

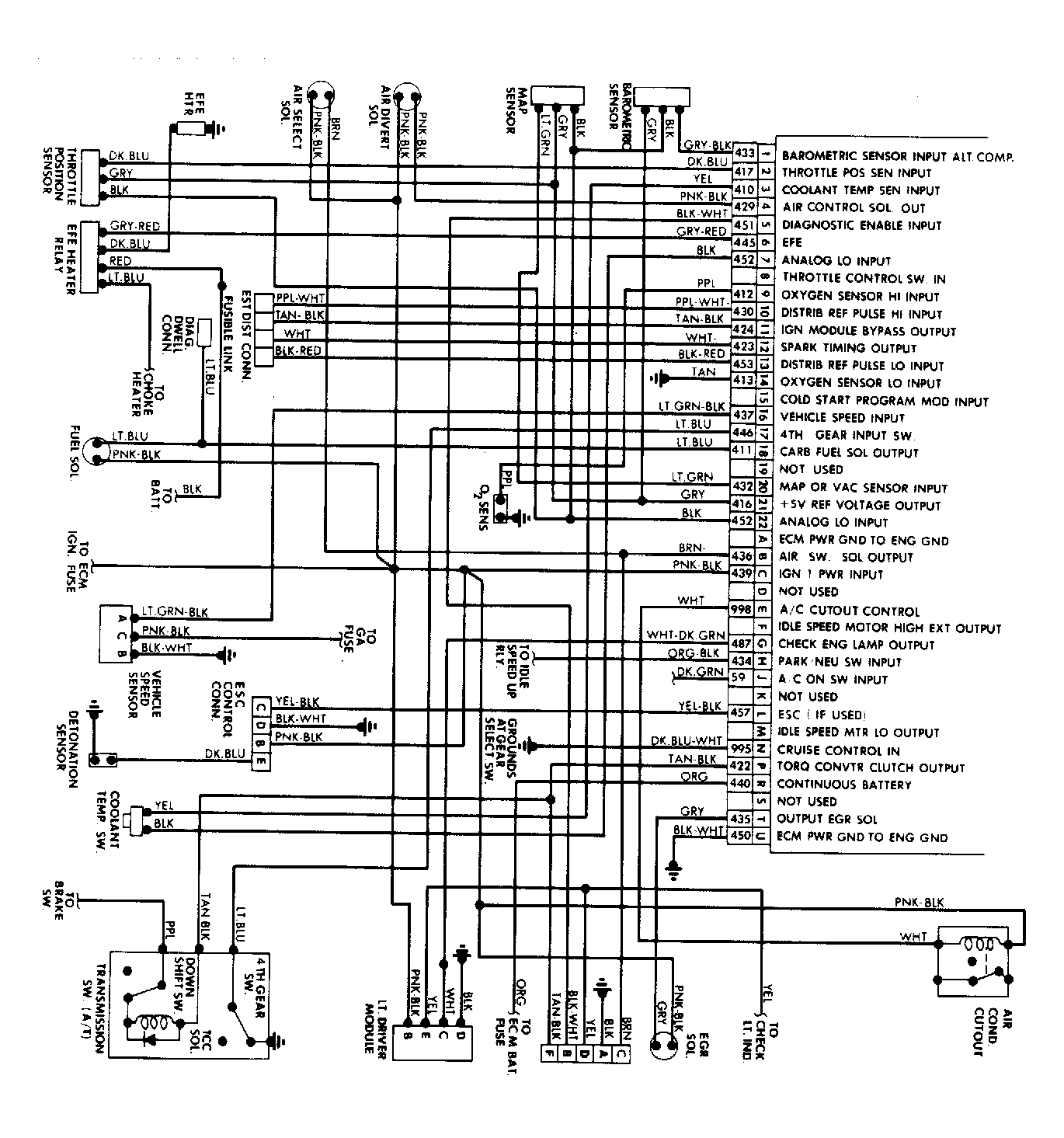

Fig 2: CCC System Wiring Diagram (Turbo & Pontiac Sunbird/2000)

G219
