PULSAIR Solenoid Check

NOTE: Make a physical check of connections and hoses first.

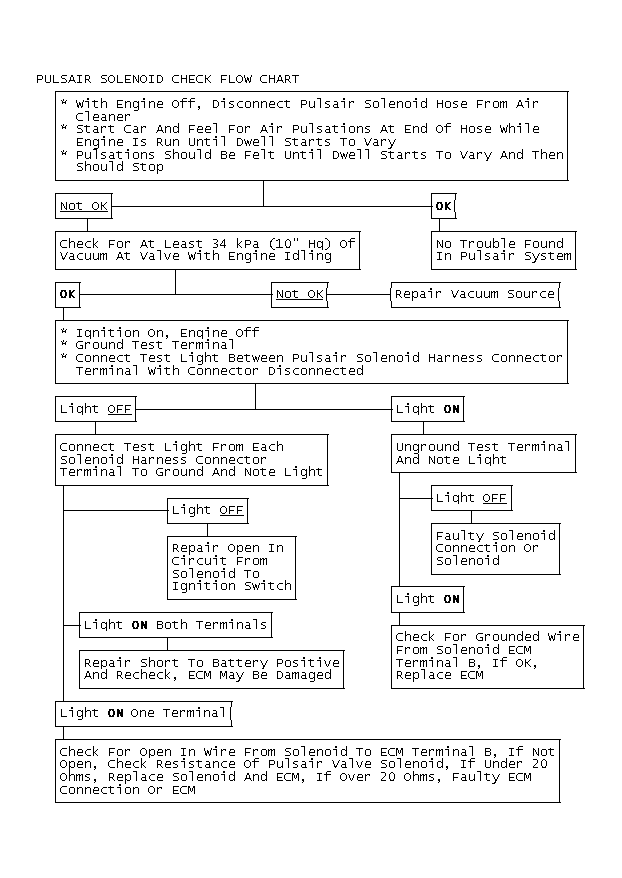

Fig 1: Pulsair Solenoid Check Flow Chart

G264

Fig 2: Pulsair Solenoid Check Flow Chart

GB0045612
