Feedback Carburetor Tests W/Codes
>>
Code 55: O2 CKT Volt Hi Or Wrong, Volt On ECM Term. 21
Code 55: O2 CKT Volt Hi Or Wrong, Volt On ECM Term. 21

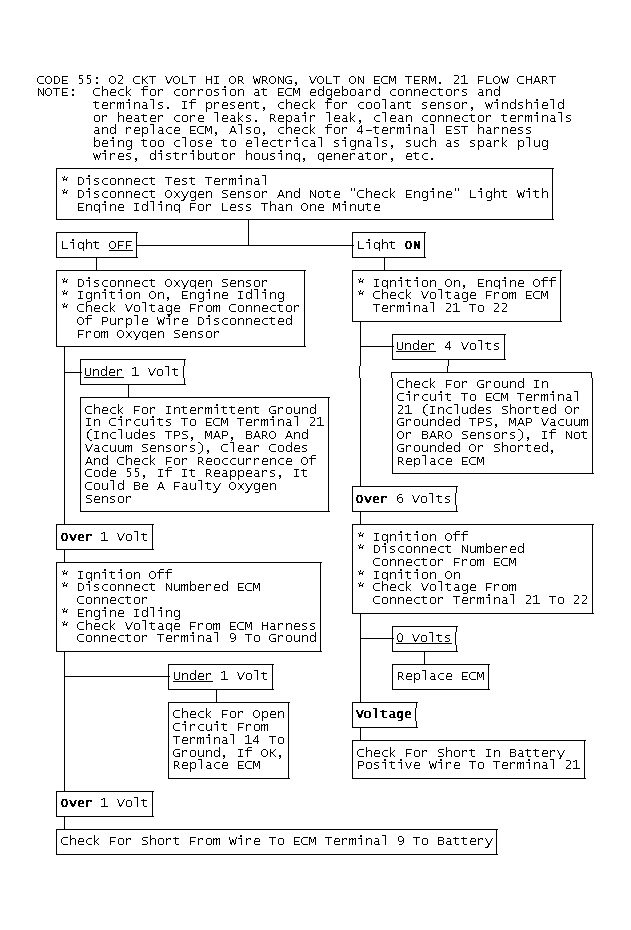

Fig 1: Code 55: O2 Ckt Volt Hi Or Wrong, Volt On ECM Term. 21 Flow Chart

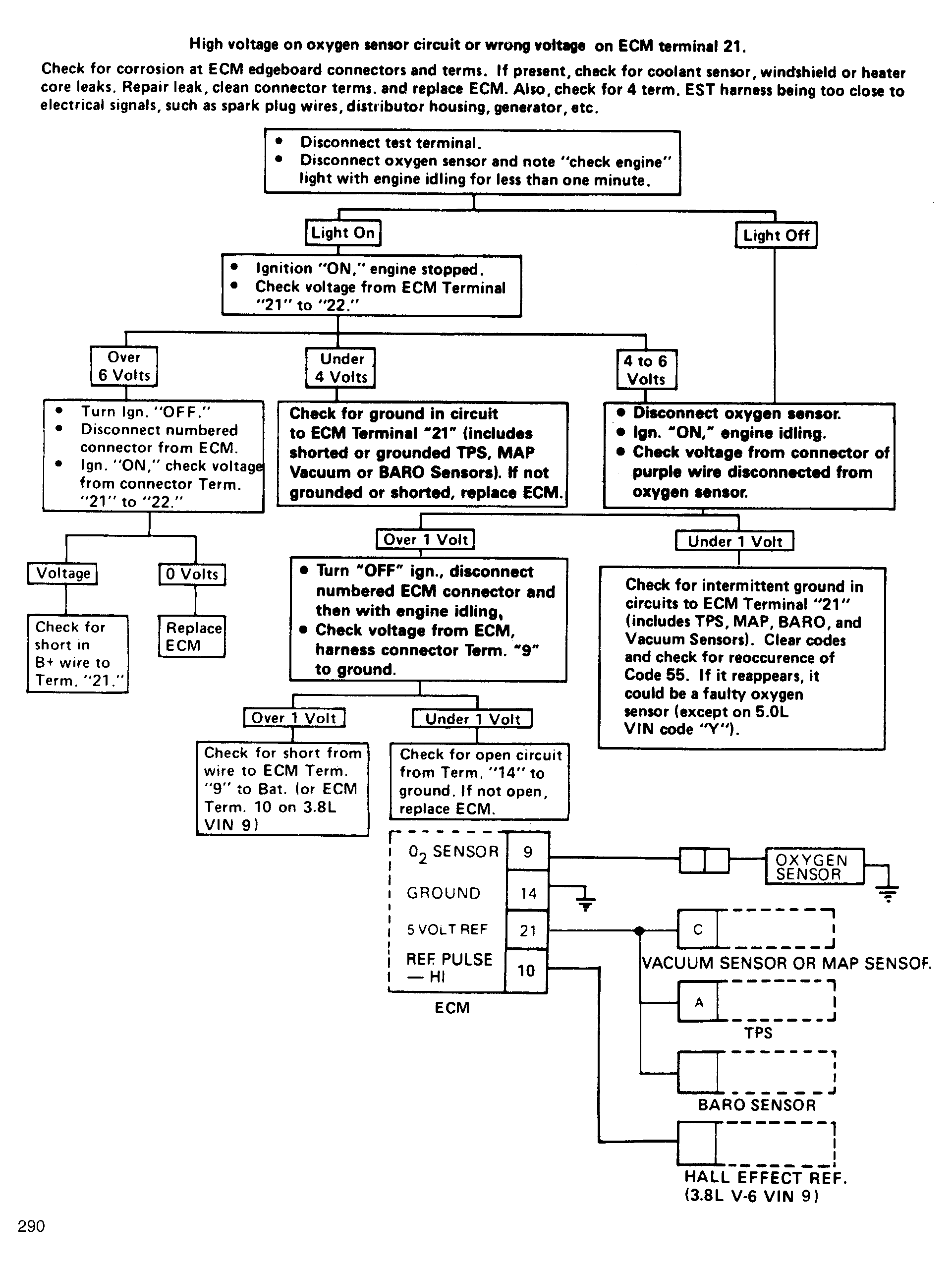

Fig 2: Code 55: O2 Ckt Volt Hi Or Wrong, Volt On ECM Term. 21 Flow Chart
