LEMON Manuals
: Even more car manuals for everyone
Home
>>
Pontiac
>>
1983
>>
Phoenix Base, 4D Hatchback, 2.8 X, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Feedback Carburetor Tests W/Codes
>>
Code 12: (Exc 3.8L VIN 9) No Reference Signal
Code 12: (Exc 3.8L VIN 9) No Reference Signal

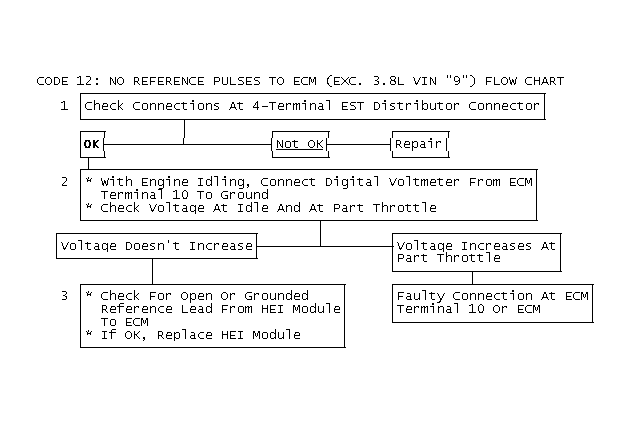

Fig 1: Code 12: No Reference Pulses To ECM (Exc. 3.8L VIN "9") Flow Chart
Fig 2: Code 12: No Reference Pulses To ECM (EXC. 3.8L VIN "9") Flow Chart
