Chart 24: Code 24: Vehicle Speed Sensor (VSS) CKT

ECM TERM. 16 VOLTAGE CONSTANTLY HI OR LOW; BUFFER & VSS REMOTE FROM I.P. CLUSTER

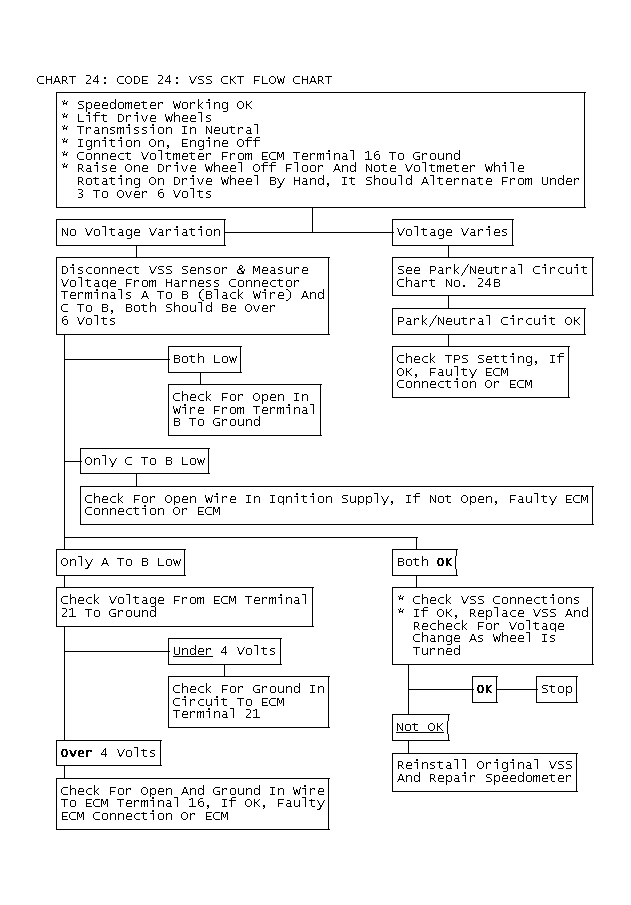

Fig 1: Chart 24: Code 24: VSS Ckt Flow Chart

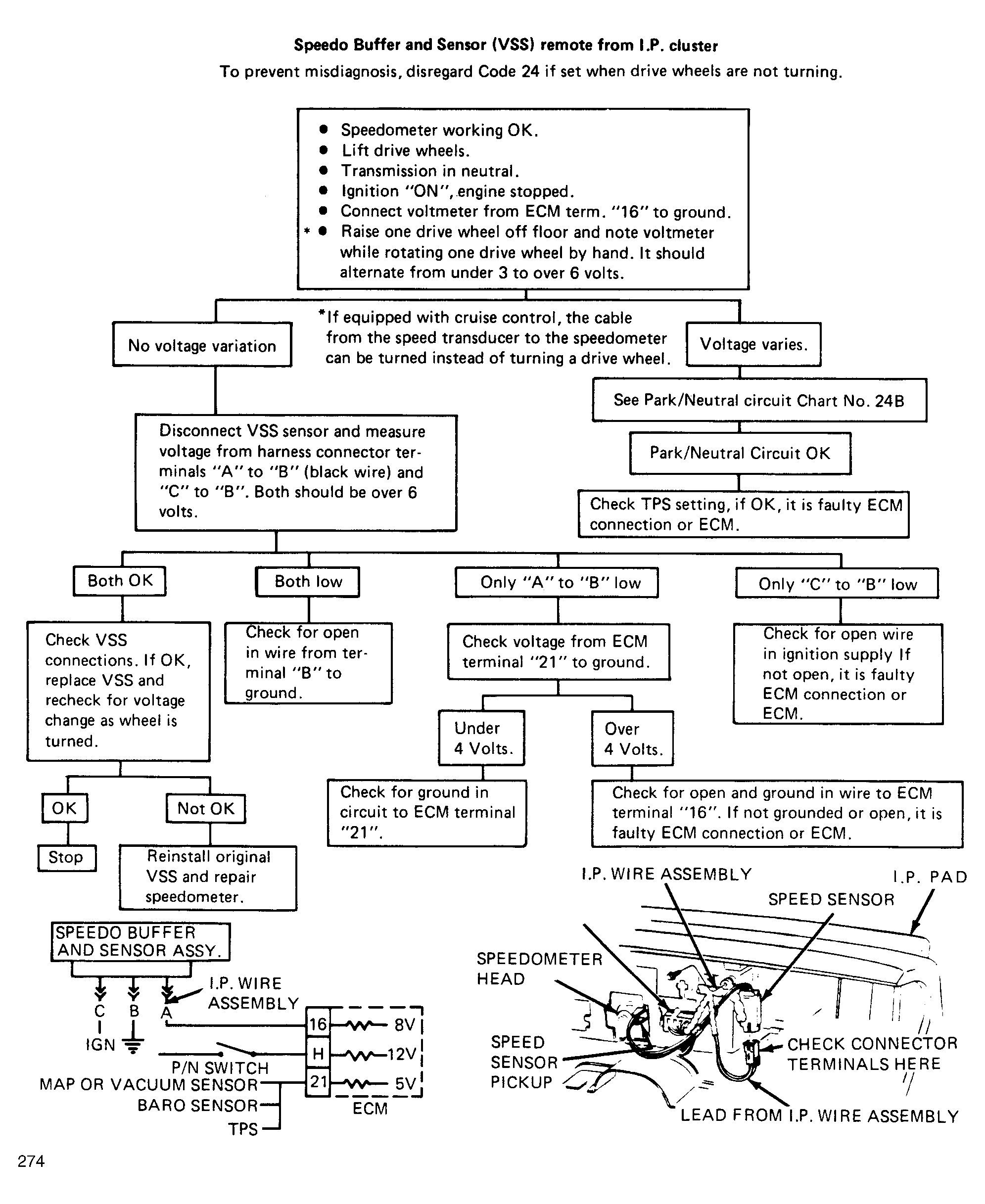

Fig 2: Chart 24: Code 24: VSS Ckt Flow Chart
