Electronic Spark Control (ESC) System Check

ENGINE KNOCK, POOR PERFORMANCE OR POOR ECONOMY (NO CODE 43)

NOTE: This chart should only be used after all other causes of spark knock have been checked, timing, EGR, MAP, engine temperature, excessive engine noise ect.
Fig 1: ESC System Check Flow Chart
G258

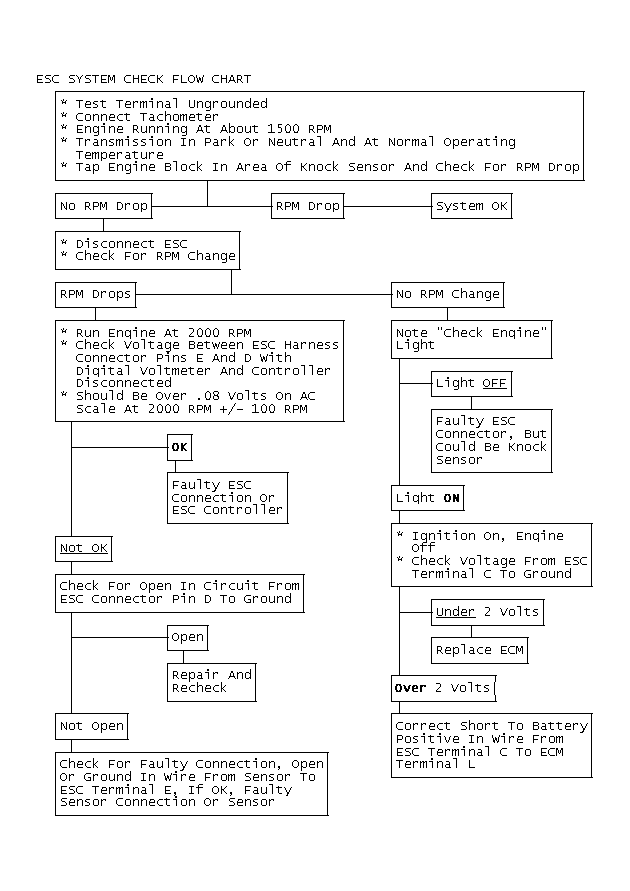

Fig 2: ESC System Check Flow Chart
GB0045604
