Code 35: Shorted ISC Motor Throttle Switch

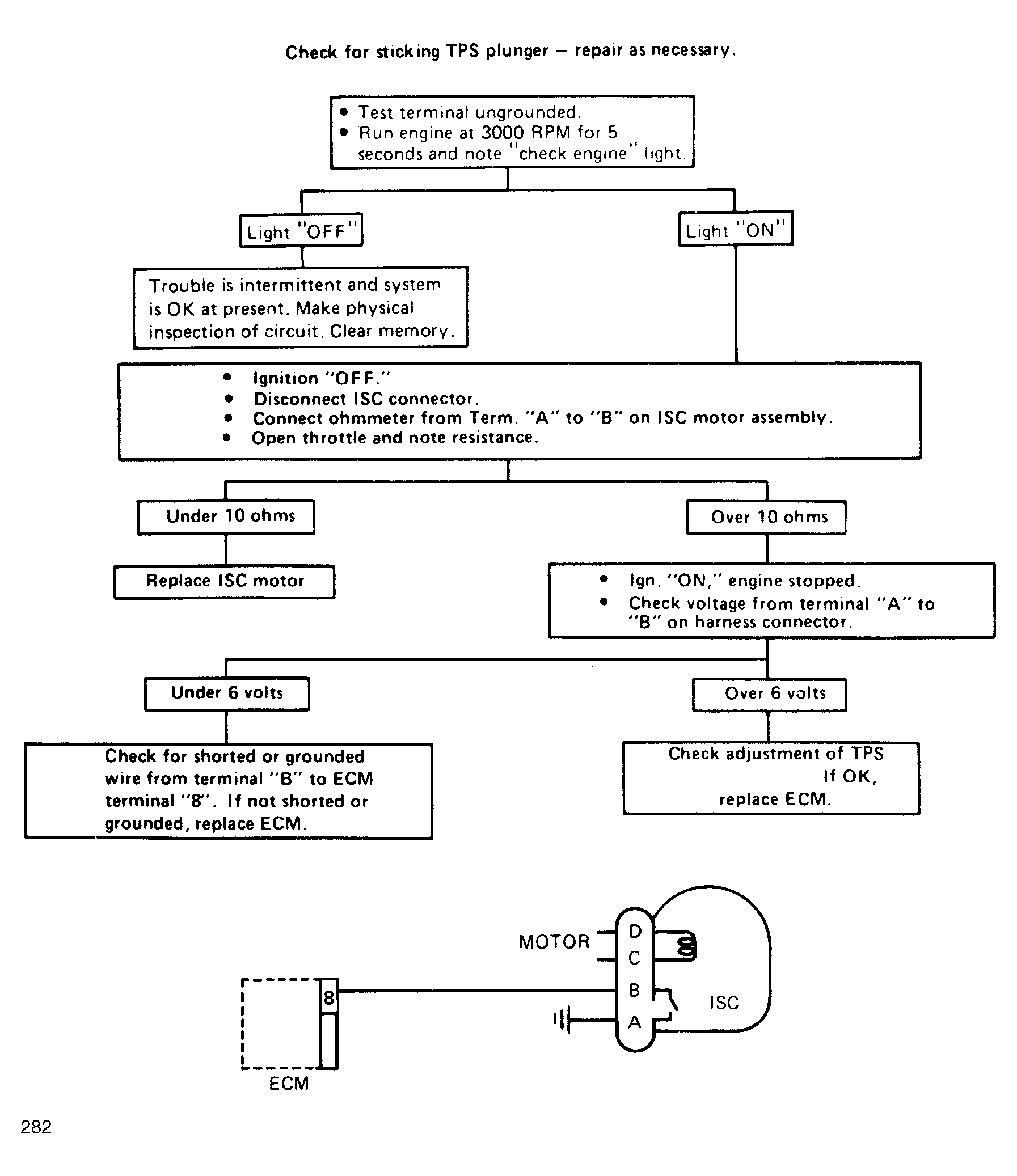

Fig 1: Code 35: Shorted ISC Motor Throttle Switch Flow Chart

G282

Fig 2: Code 35: Shorted ISC Motor Throttle Switch Flow Chart

GB0045630
