Code 15: Open Coolant Sensor Circuit

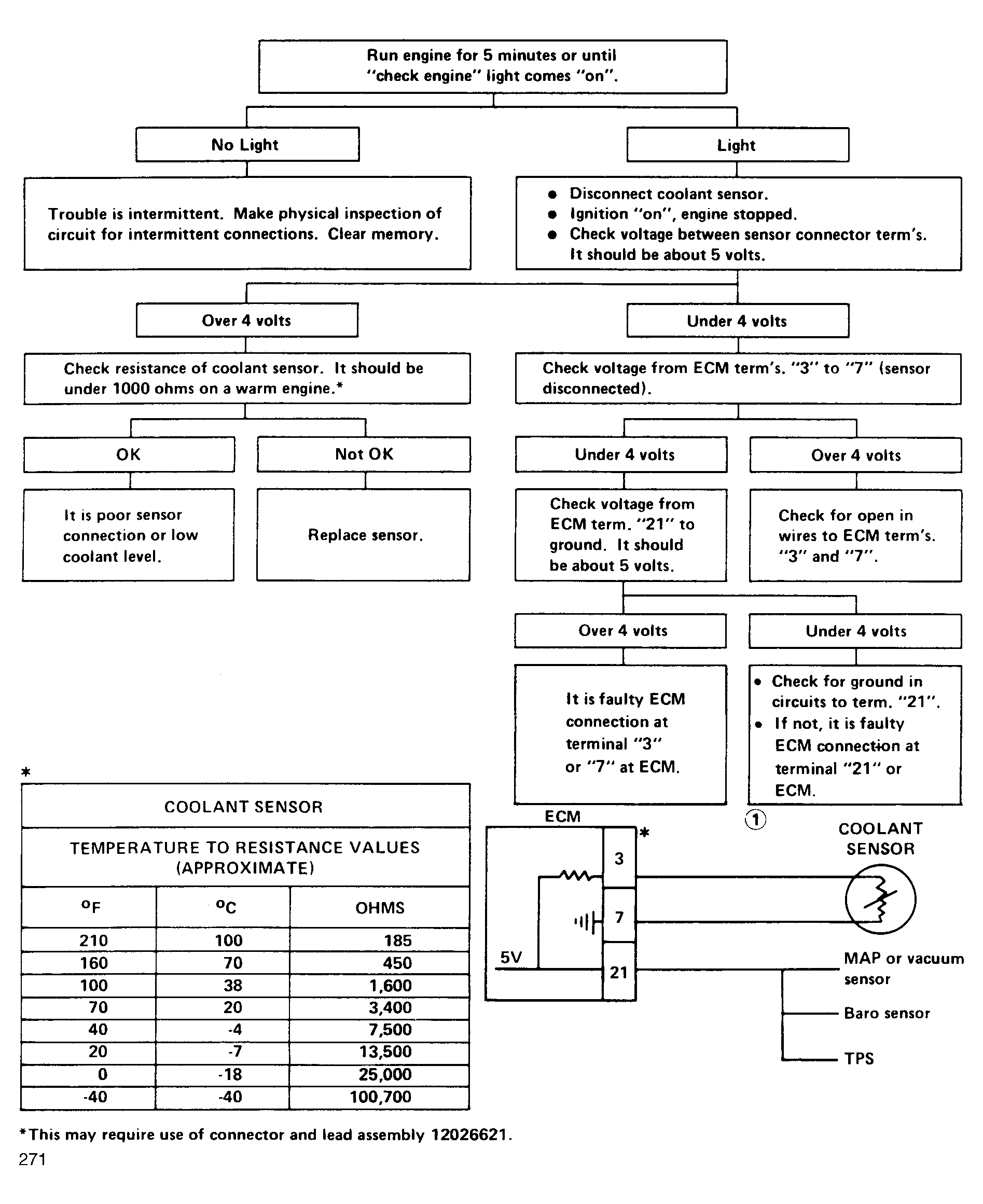

Fig 1: Code 15: Open Coolant Sensor Circuit Flow Chart

G271

Fig 2: Code 15: Open Coolant Sensor Circuit Flow Chart

GB0045620
