Code 14: Closed Coolant Sensor Circuit

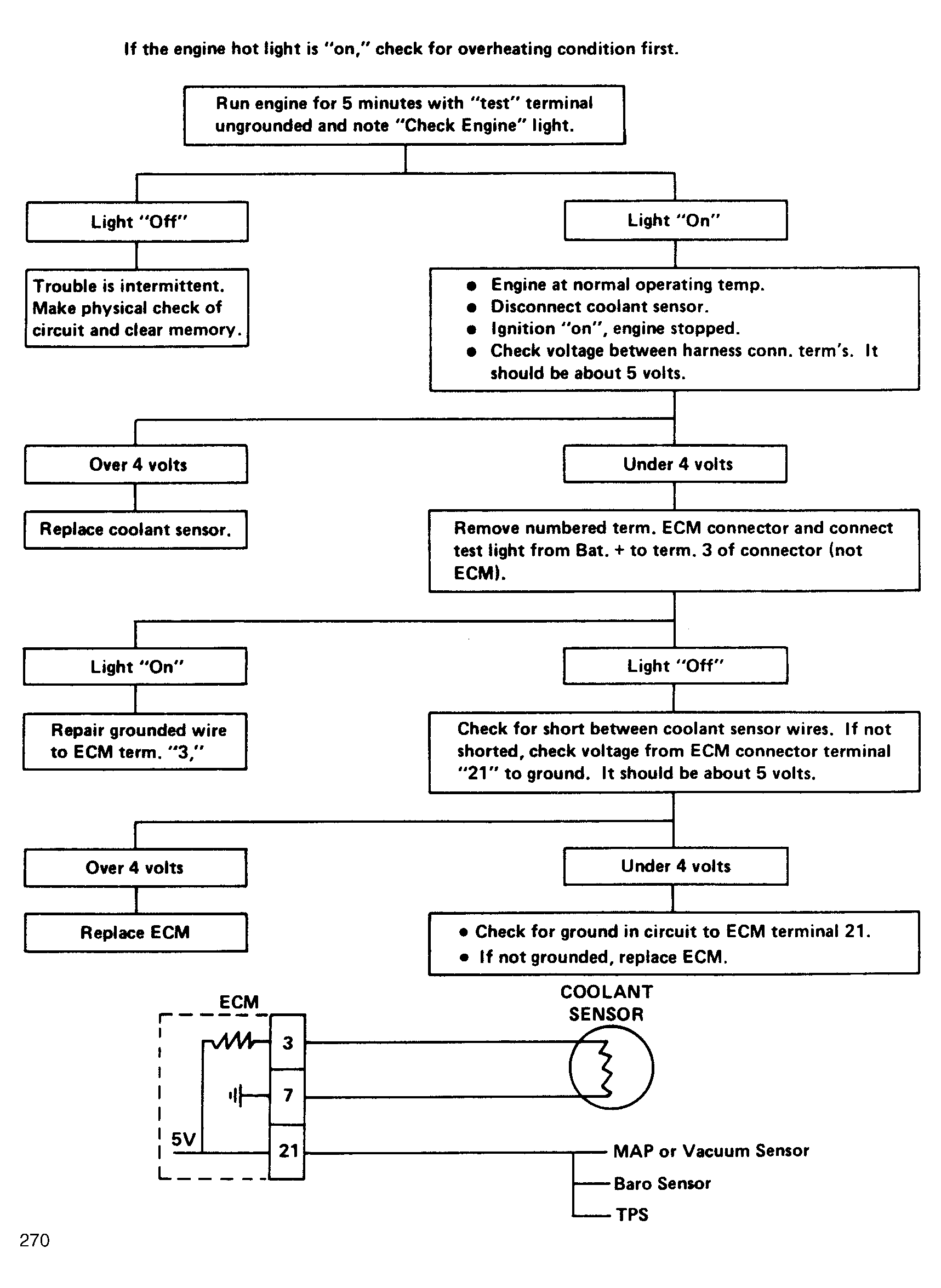

Fig 1: Code 14: Shorted Coolant Sensor Circuit Flow Chart

G270

Fig 2: Code 14: Shorted Coolant Sensor Circuit Flow Chart

GB0045619
