Feedback Carburetor Tests W/Codes
>>
Code 13: Open O2 Sensor Circuit
Code 13: Open O2 Sensor Circuit

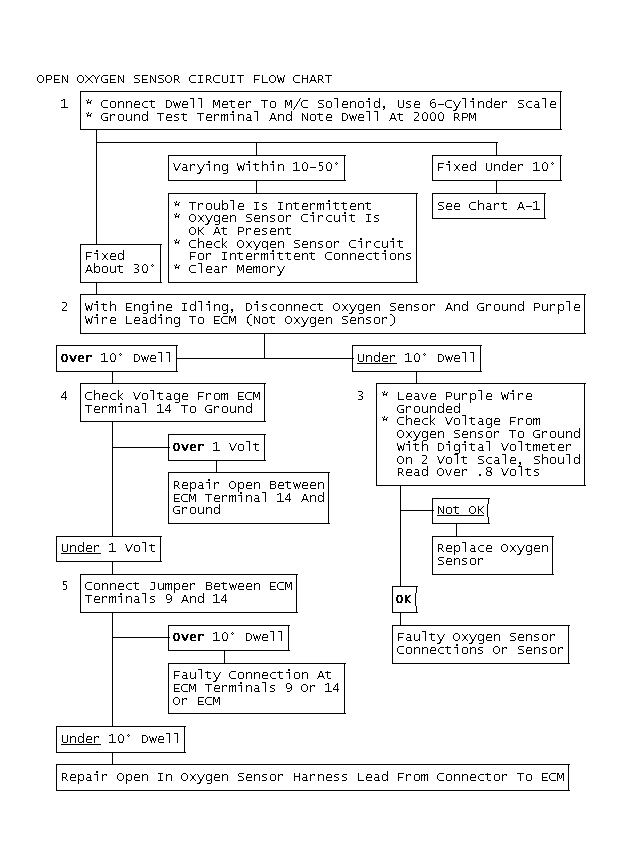

Fig 1: Code 13: Open Oxygen Sensor Circuit Flow Chart
Fig 2: Open Oxygen Sensor Circuit Flow Chart
