Steering Column: Reassembly: Notes

CAUTION: Components and fasteners used in steering column design are important in that they can affect vehicle safety and performance of vital systems if not serviced properly. All replacement parts must be of equal part number or equivalent quality. DO NOT  use a part of lesser quality or substitute design.

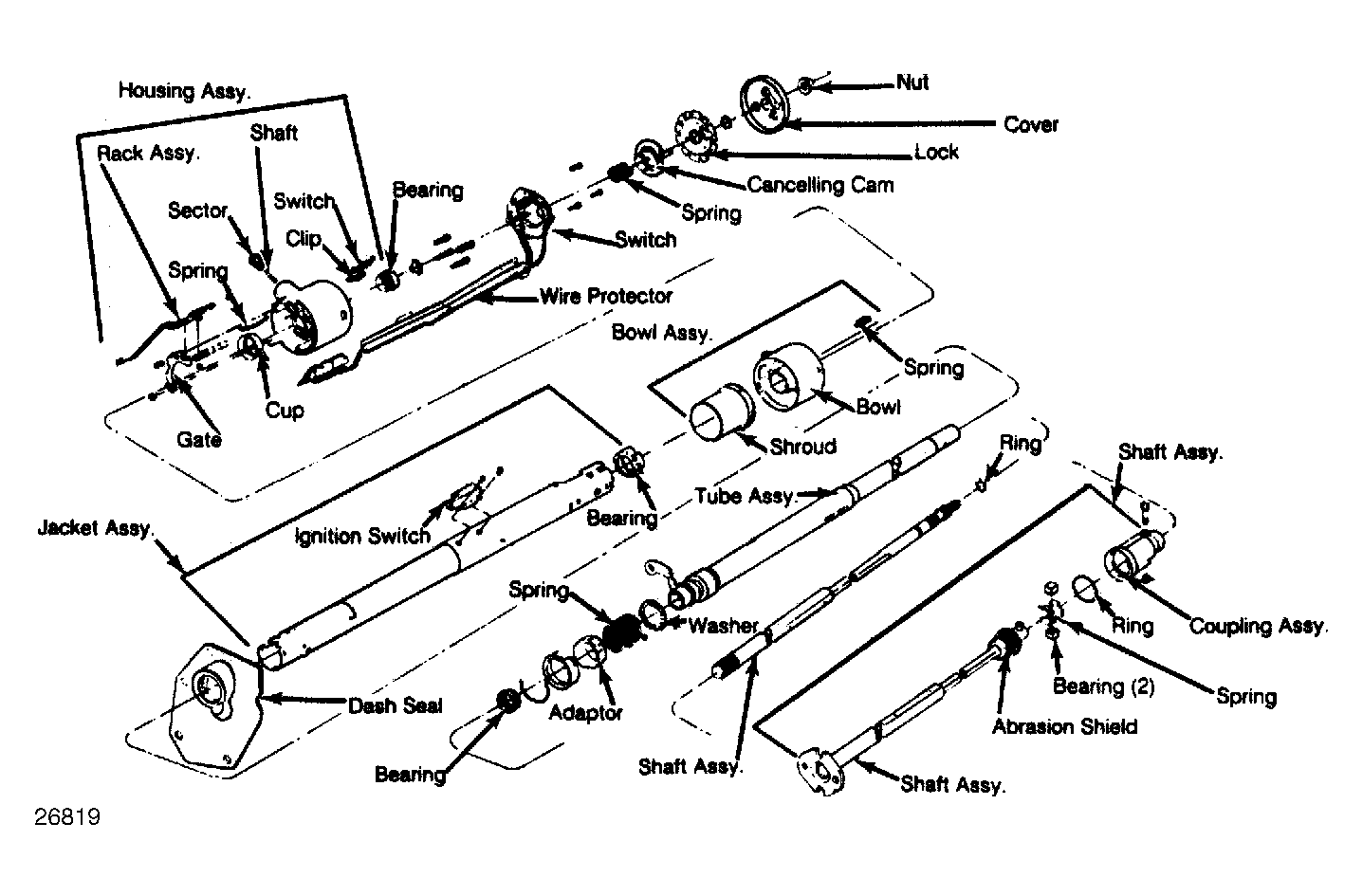

Fig 1: Exploded View of Saginaw Standard Column
G26819
Fig 2: Tilt Column Pivot Pin Removal
G26821

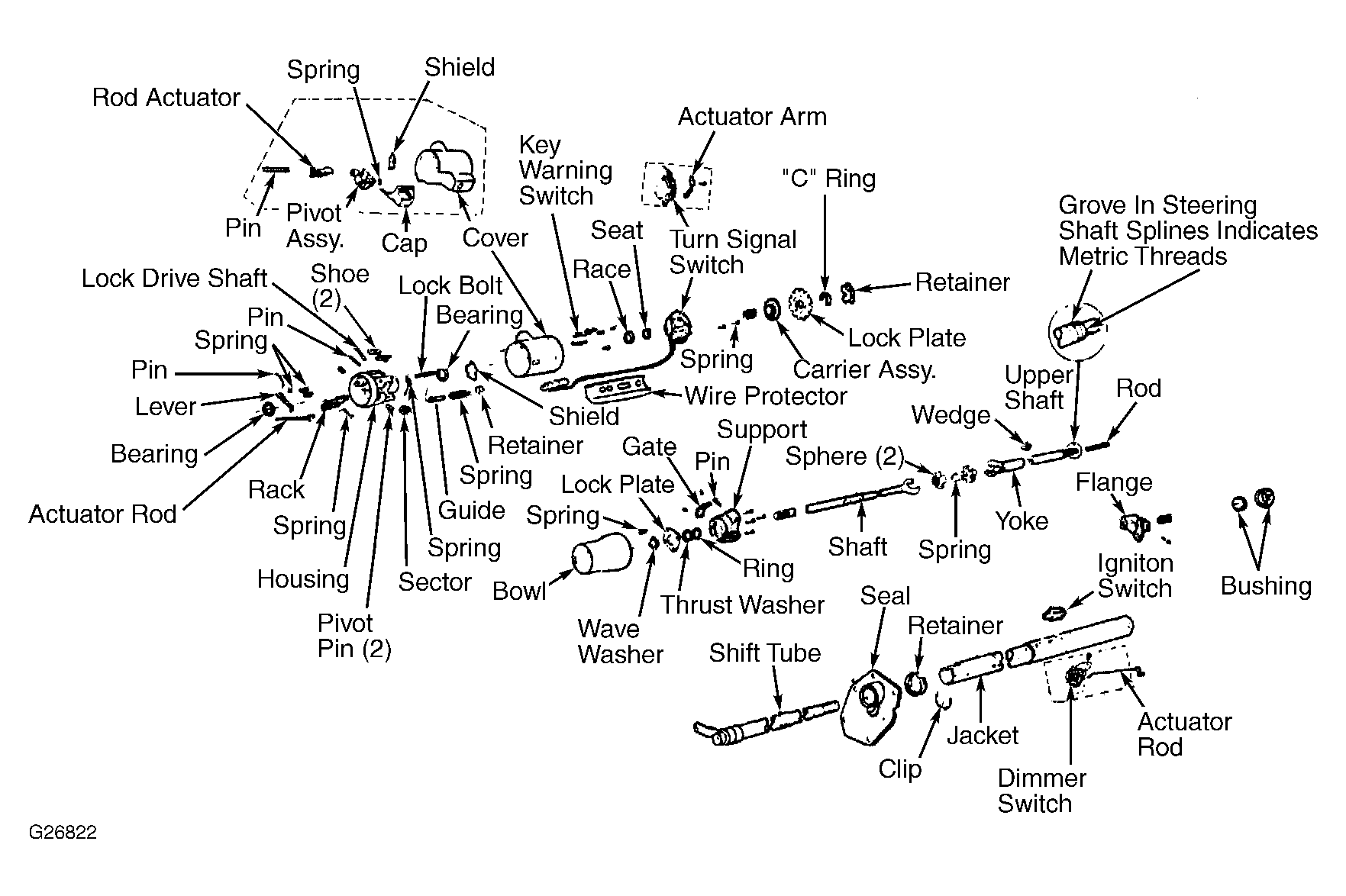

Fig 3: Exploded View of Saginaw Tilt & Telescope Column
G26822

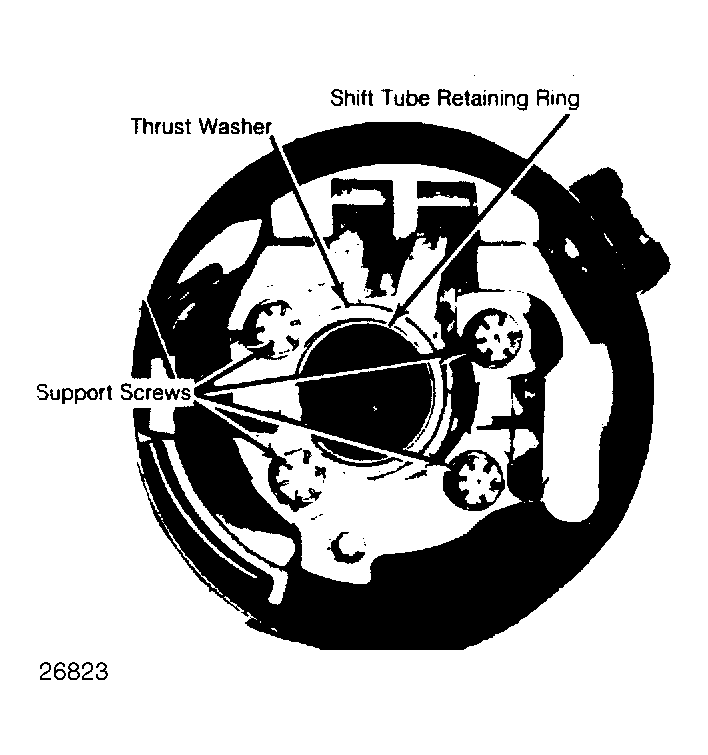

Fig 4: Support & Shift Tube Mounting
G26823
