Home >> Pontiac >> 1983 >> 1000 4D Hatchback, 1.8 D, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Feedback Carburetor Tests W/Codes >> Chart 5 - TPS Enrichment Check

Chart 5 - TPS Enrichment Check

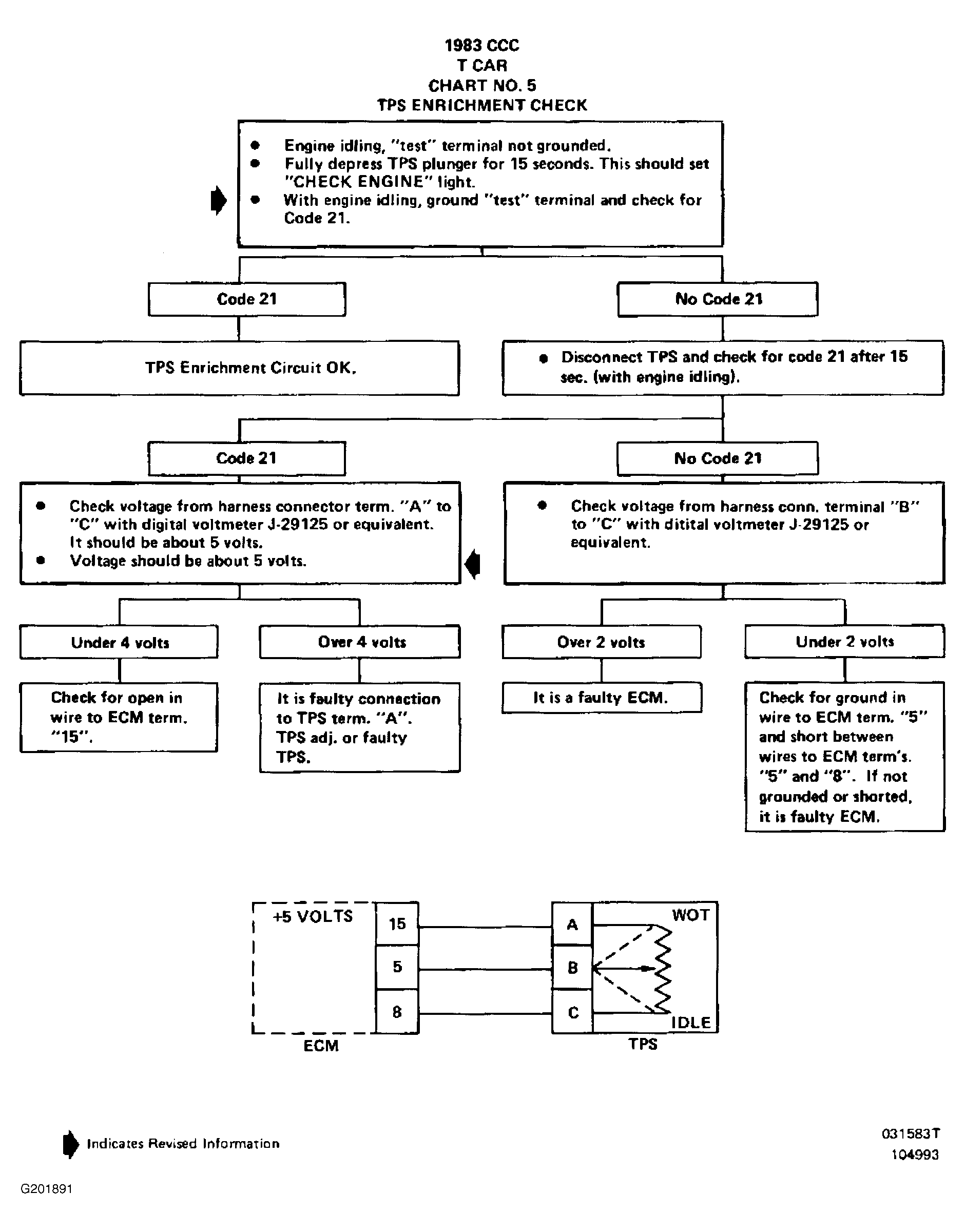

Fig 1: Chart 5 - TPS Enrichment Check

G201891
