Component Replacement: Programmer: Installation

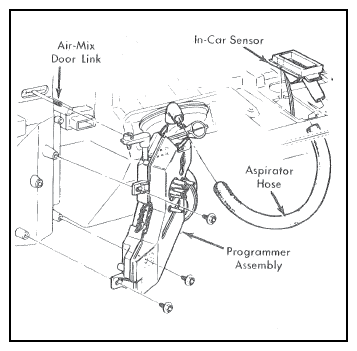

Install programmer on heater-A/C module and connect vacuum harness and electrical connections. Set temperature thumbwheel to highest position and check that air mix door is in full heat position. Connect door rod to programmer without disturbing position on output shaft. Remove 3-wire connector from programmer and check for full travel of air mix door.
