Wheel Alignment Specifications & Adjustments: PONTIAC: Camber: Phoenix

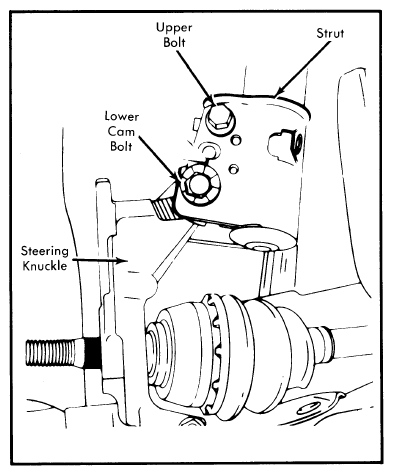

To adjust camber, loosen upper and lower locking nuts on strut enough to allow steering knuckle to move. Turn cam (lower) bolt to specified camber. Ensure that cam is seated between inner and outer guide surfaces and tighten nuts. See Fig 1.
