Wheel Alignment - Specifications & Adjustments: PONTIAC: Jacking

Floor jack may be used to lift vehicle at shaded areas indicated on diagrams. Use of bumper jack to raise vehicle is not recommended.

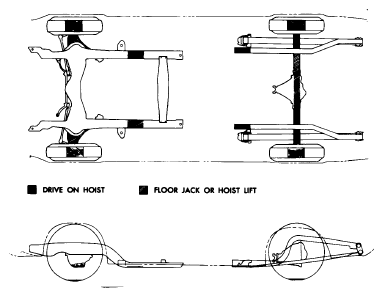

Fig 1: Grand Prix And Lemans Lifting Points

Courtesy of GENERAL MOTORS COMPANY

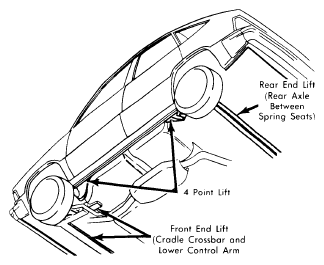

Fig 2: Bonneville And Catalina Lifting Points

Courtesy of GENERAL MOTORS COMPANY

Fig 3: Firebird Lifting Points

Courtesy of GENERAL MOTORS COMPANY

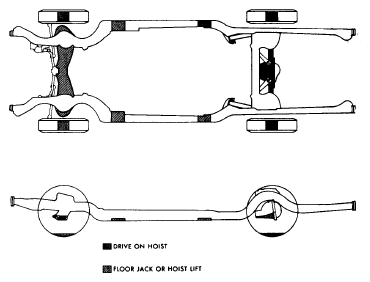

Fig 4: Phoenix Lifting Points

Courtesy of GENERAL MOTORS COMPANY
