Home >> Pontiac >> 1981 >> T1000 2D Hatchback, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Tune-Up >> Tune-Up - 4 CYL >> Distributor

Tune-Up - 4 CYL: Distributor

All models are equipped with High Energy Ignition systems and no adjustments are required.

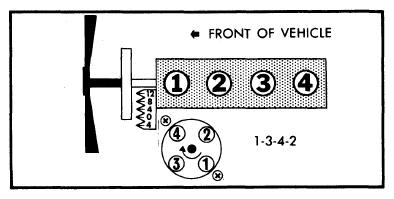

Fig 1: 1.6L Firing Order & Timing Marks
G09317542Courtesy of GENERAL MOTORS COMPANY

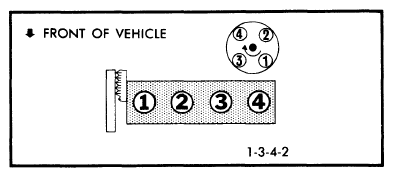

Fig 2: 2.5L Firing Order & Timing Marks
G09317543Courtesy of GENERAL MOTORS COMPANY
