Stator Grounds

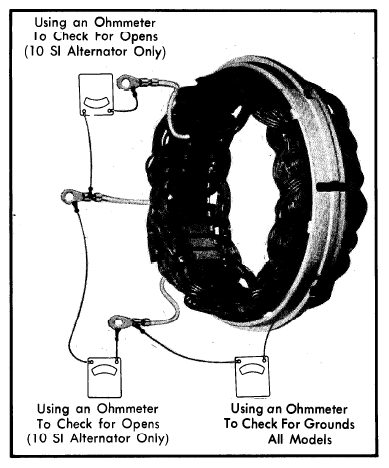

Connect a 110 volt test lamp or an ohmmeter set to the x 1000 scale. Touch leads to stator frame and any stator lead. See Figure. If test lamp lights or resistance is low (should be infinity), stator is grounded and must be replaced.
Connect a 110 volt test lamp or an ohmmeter set to the x 1000 scale. Touch leads to stator frame and any stator lead. See Figure. If test lamp lights or resistance is low (should be infinity), stator is grounded and must be replaced.
