Base Ignition Timing Specifications

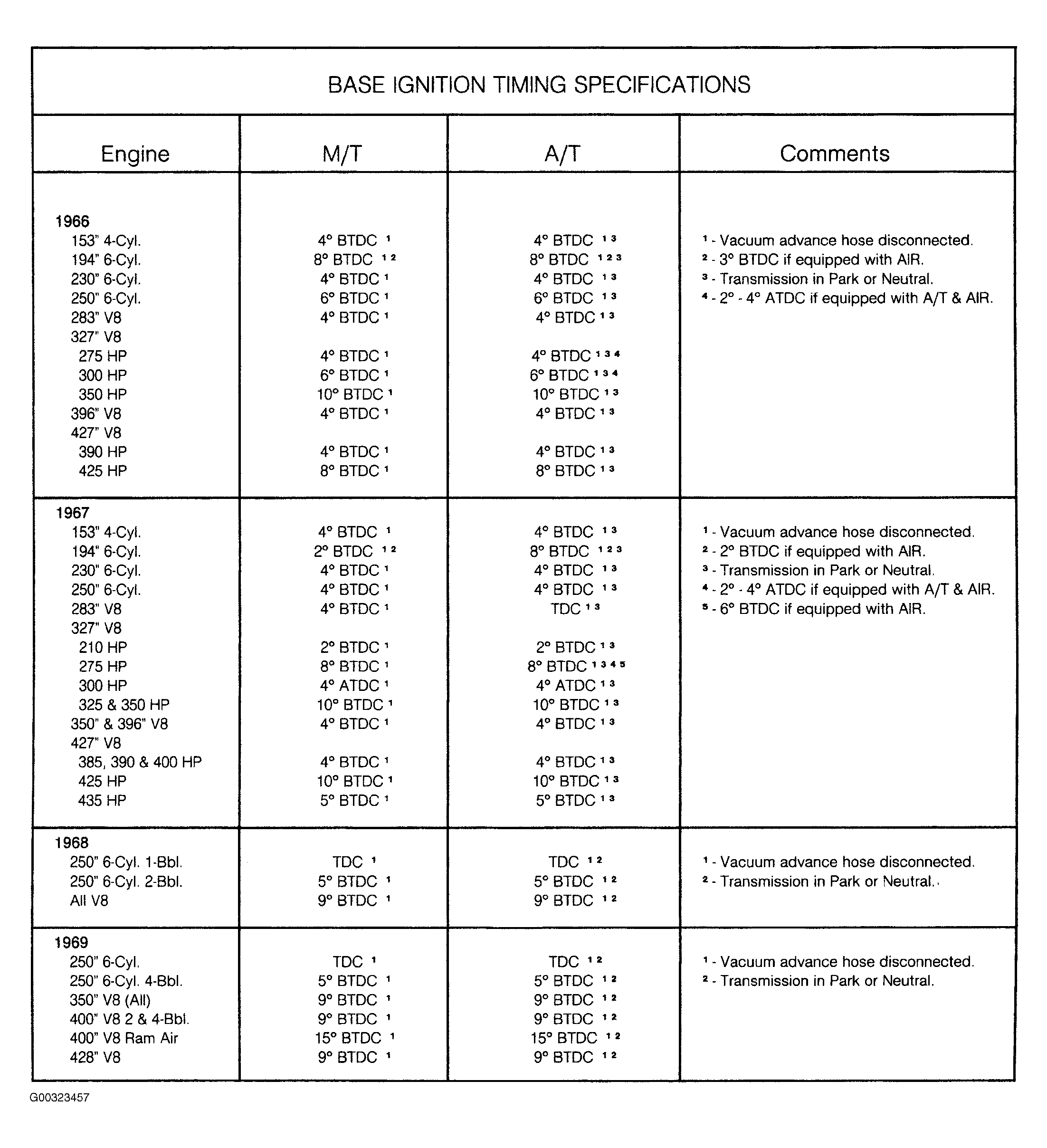

Fig 1:

G00323457

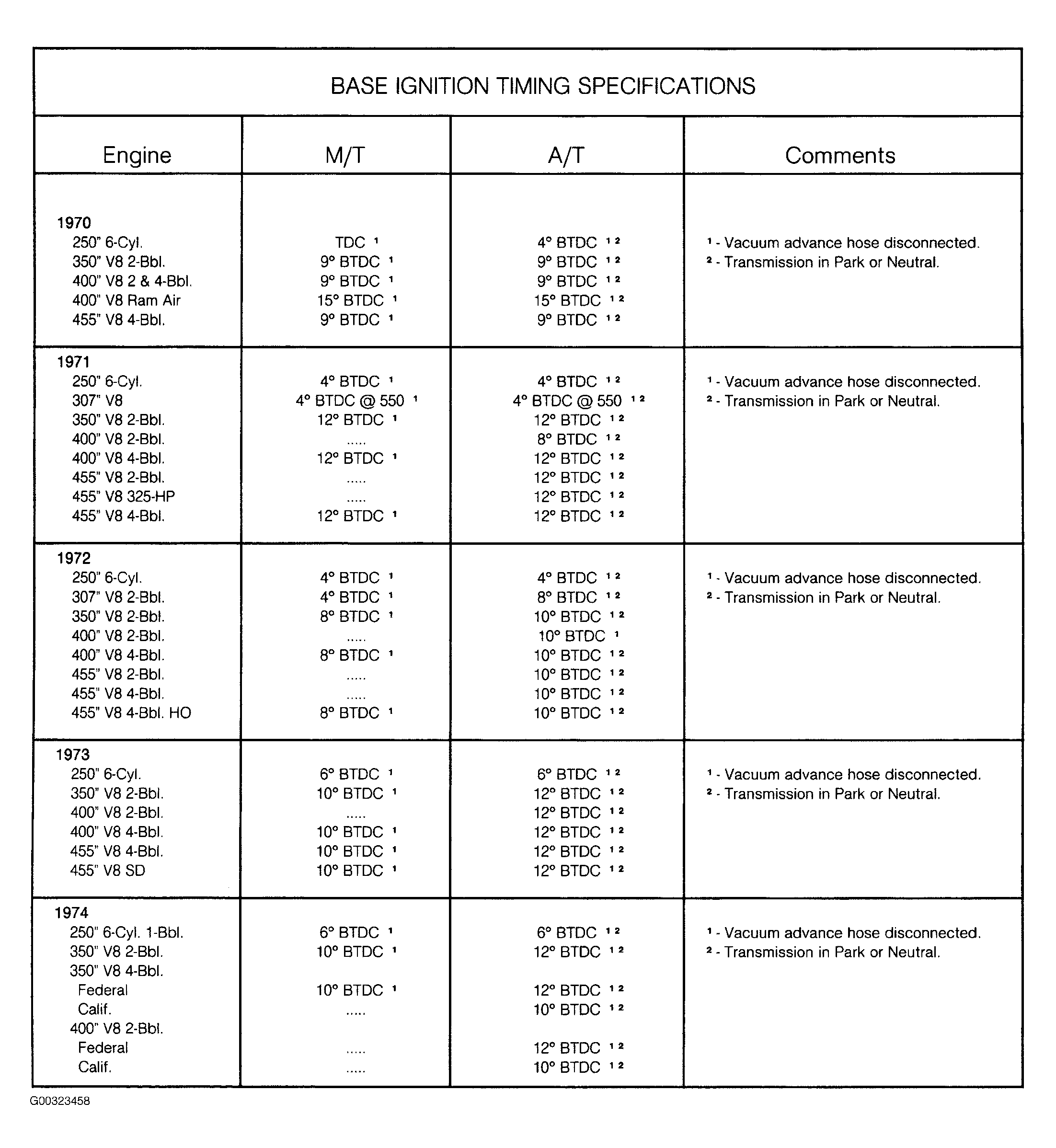

Fig 2:

G00323458

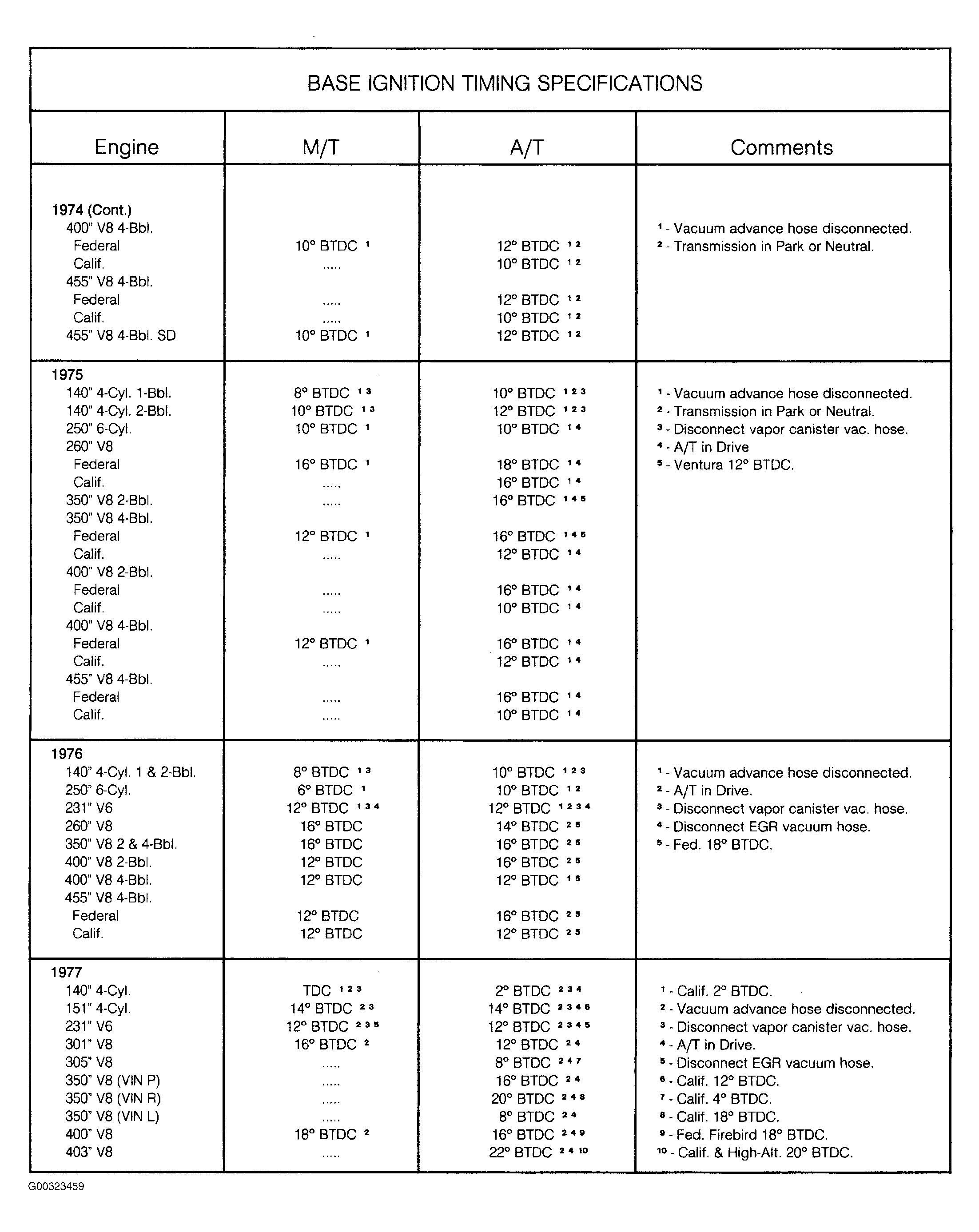

Fig 3:

G00323459

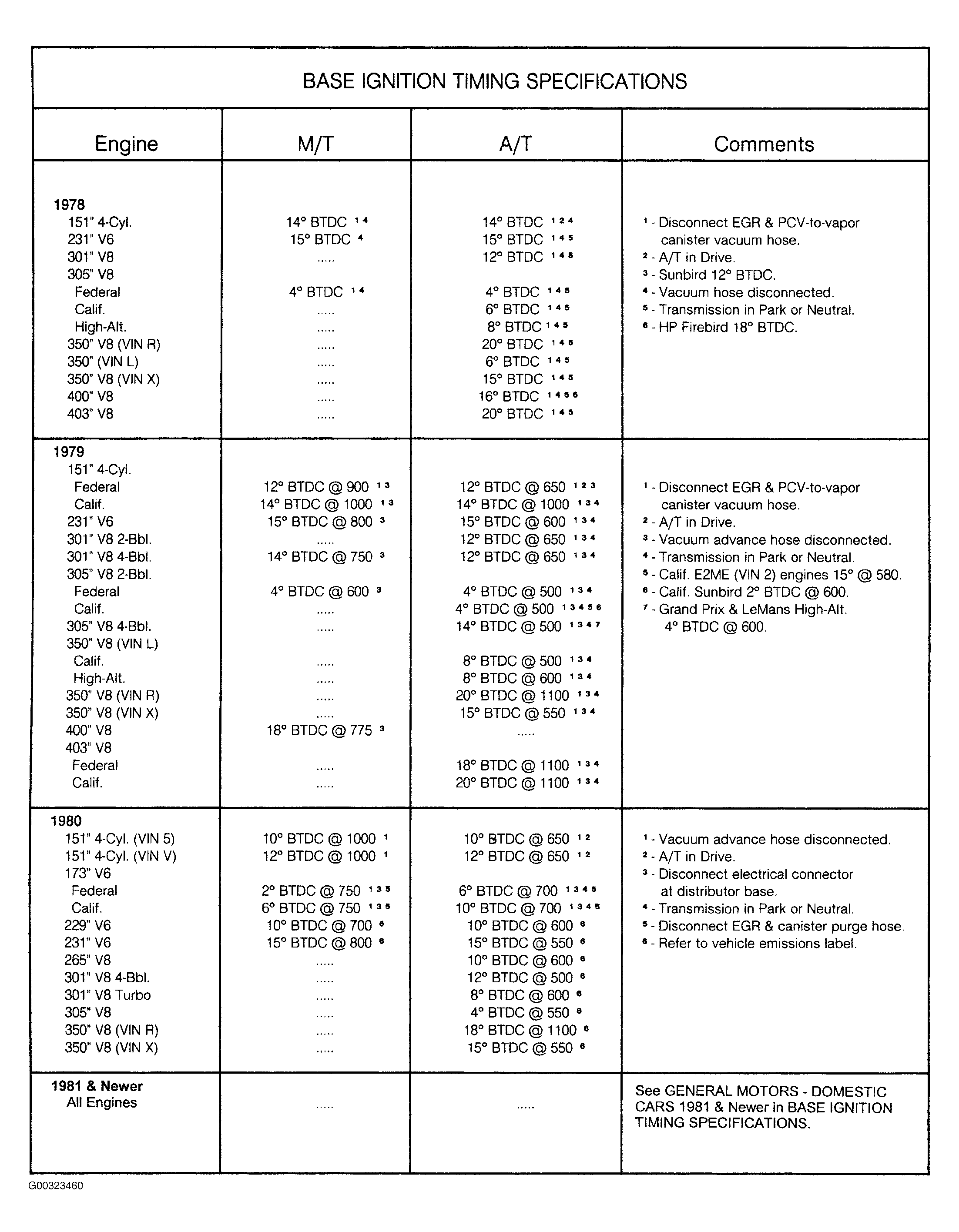

Fig 4:

G00323460
