"Check Engine" Light Test

  1. Ensure the C-4 diagnostic system is operating properly, turn off ignition switch, leave engine stopped, and ground the trouble code (White/Black) test lead.

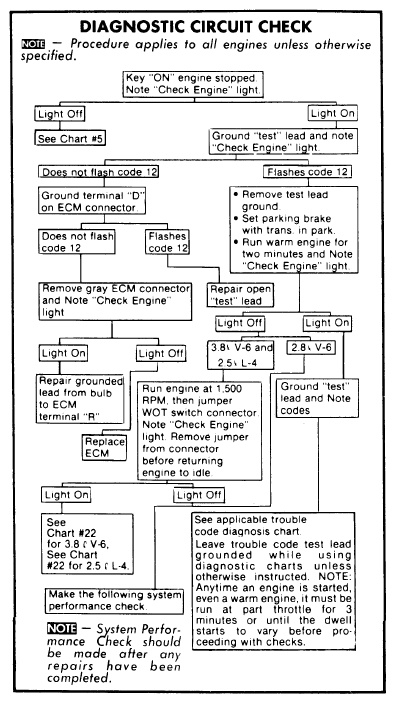

  2. If system is operating properly, the "CHECK ENGINE" light will flash Code 12, which indicates proper operation. See Figure chart.
    NOTE: If fault is intermittent, "CHECK ENGINE" light may come on and then go out; however, fault problem will be stored in ECM memory so diagnosis can be performed.
