Riding Height

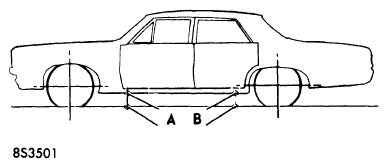

With vehicle at curb height and on a level floor, bounce vehicle several times and allow to settle. Measure heights at locations shown in illustration. Specifications are for new vehicles, most vehicles in use will average 1" less than new vehicles.
RIDING HEIGHT SPECIFICATIONS
| Application | A | B | |
|---|---|---|---|
| LeMans & Grand LeMans | |||
| Station Wagons | 10.70" | 10.70" | |
| All Others | 10.22" | 9.92" | |
| Grand Prix | 10.22" | 9.92" | |
| Catalina, Bonneville, Grand Ville & Grand Safari | |||
| Sedan | 9.50" | 9.20" | |
| Coupe | 9.80" | 9.80" | |
| Station Wagon | 10.15" | 10.25" | |
| Firebird | 8.52" | 7.90" | |
| Ventura | 8.52" | 9.56" | |
| Astre & Sunbird | 7.58" | 7.68" | |
