Start Procedure

Sit on seat, fasten belts at occupied front seat positions, place automatic transmission in "P", or fully depress clutch pedal with manual transmission and set park brake. Then turn ignition switch to start engine.

NOTE: Objects laying on front seat may prevent start.
Fig 1: G.M. STARTER INTERLOCK BODY DIVISION COMPONENTS
G09353750Courtesy of GENERAL MOTORS COMPANY

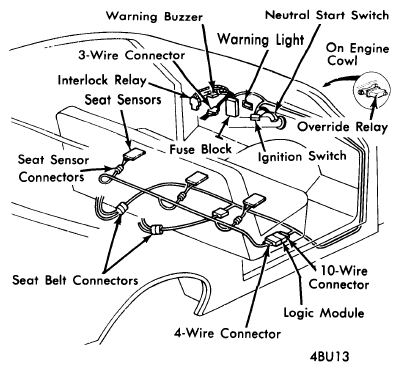

Fig 2: STARTER INTERLOCK COMPONENT LOCATIONS (TYPICAL)
G09353751Courtesy of GENERAL MOTORS COMPANY
