Testing Procedure

For test set connections and testing procedure, and programmer component replacement, refer to "General Motors Automatic Temperature Control Testing" in this section  .

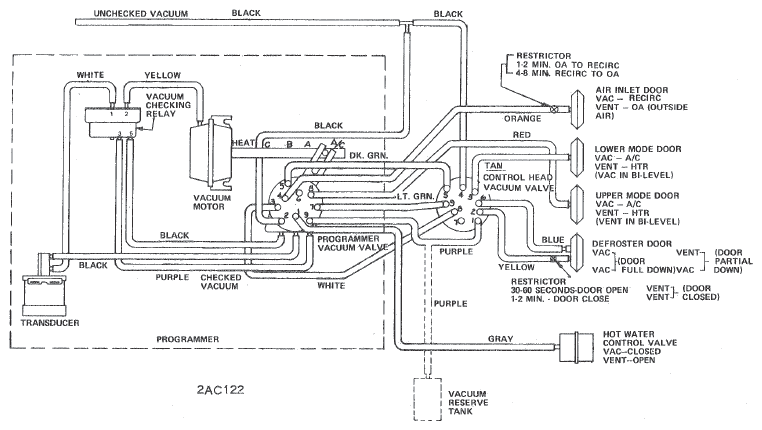

Fig 1: ATC Vacuum Schematic - Catalina, Bonneville, Grand Ville
G09311765Courtesy of GENERAL MOTORS COMPANY

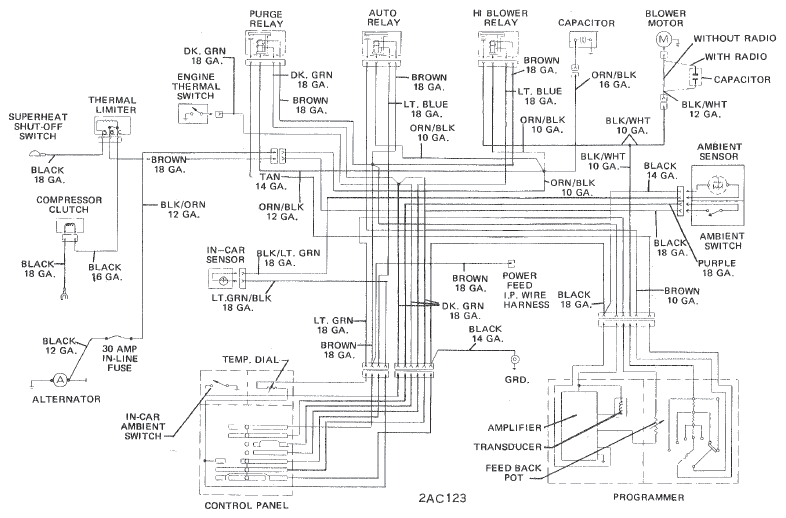

Fig 2: ATC Wiring Diagram - Catalina, Bonneville, Grand Ville
G09311766Courtesy of GENERAL MOTORS COMPANY
