Testing Procedure

For test set connections and testing procedure, and programmer component replacement, refer to "General Motors Automatic Temperature Control Testing" in this section  .

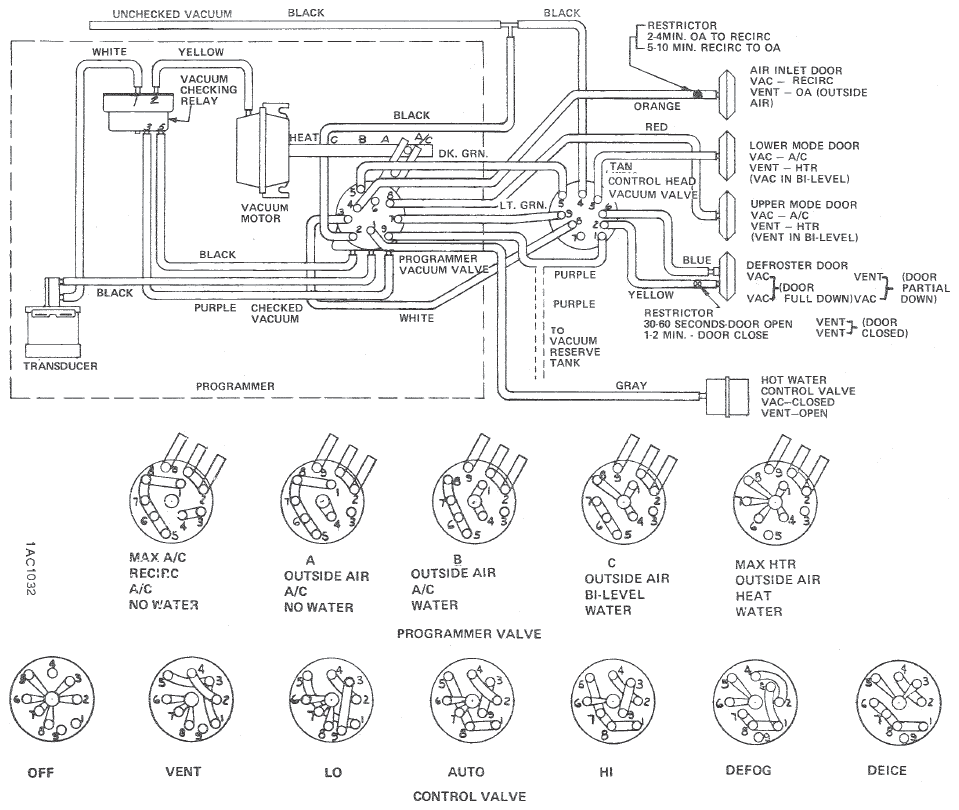

Fig 1: Vacuum Schematic - Catalina, Grandville, Bonneville
G09311438Courtesy of GENERAL MOTORS COMPANY

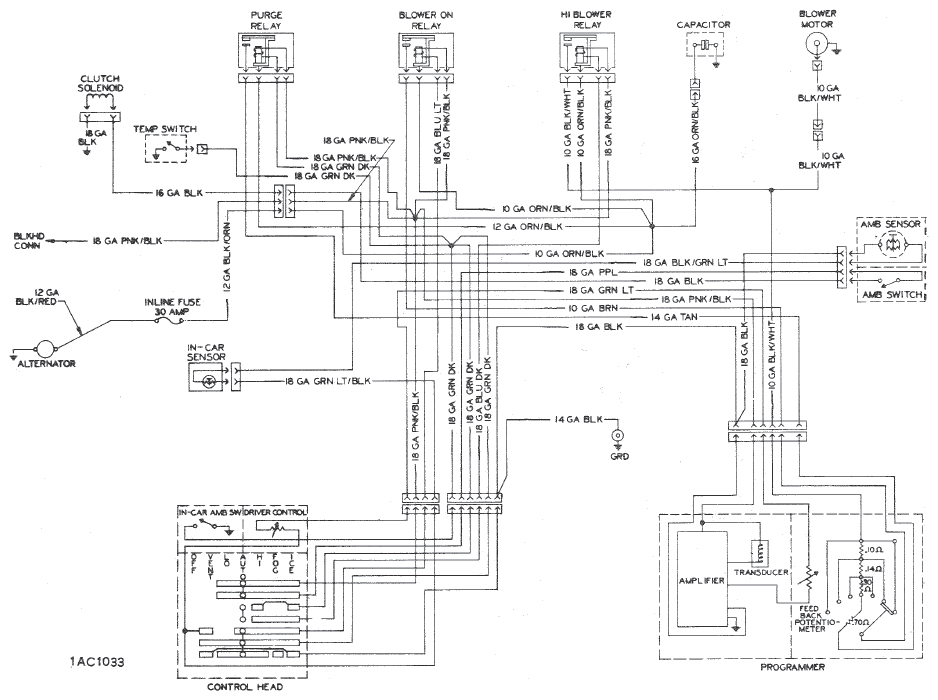

Fig 2: Wiring Diagram - Catalina, Grandville, Bonneville
G09311439Courtesy of GENERAL MOTORS COMPANY
