Retractable Tailgate

Remove spare tire cover and spare tire. Disconnect motor electrical lead and disengage cable at upper end of motor. Remove motor mounting plate attaching screws and remove plate and motor assembly. Disassemble motor from mounting plate as a bench operation. To install, reverse removal procedure.

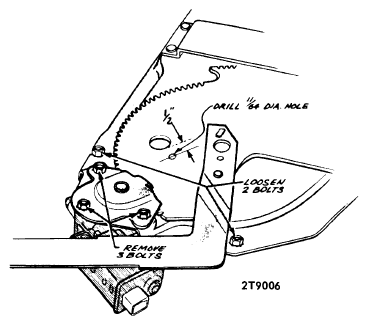

Fig 1: Regulator Motor Removal Caution
G09328787Courtesy of GENERAL MOTORS COMPANY
