Alternators - DELCO-REMY With Integral Regulator: Description

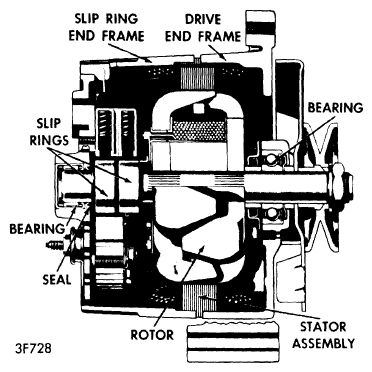

Delcotron integral alternator/regulator features a solid state regulator mounted inside generator slip ring end frame. Models are available with different outputs at idle, and maximum RPM, but operating principles are the same. Delcotron consists primarily of two end frame assemblies, a rotor assembly, and a stator. The rotor is supported in the drive end frame by a ball bearing, and in the slip ring end frame by a roller bearing. Bearings contain enough lubricant to eliminate the need for periodic lubrication.
