Accelerating Pump
NOTE:
This is a linkage adjustment and not a seasonal setting, and is required on all three carburetors.

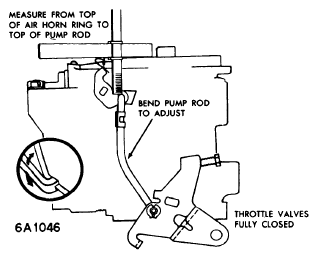

With throttle valves completely closed (back off throttle stopscrew on center carburetor), measure distance from top of air horn to top of pump connector rod (see Specifications ). If not within specifications, adjust by bending pump connector rod at center bend.
