Test L: One Door Fails To Lock/Unlock From Either Switch: Notes

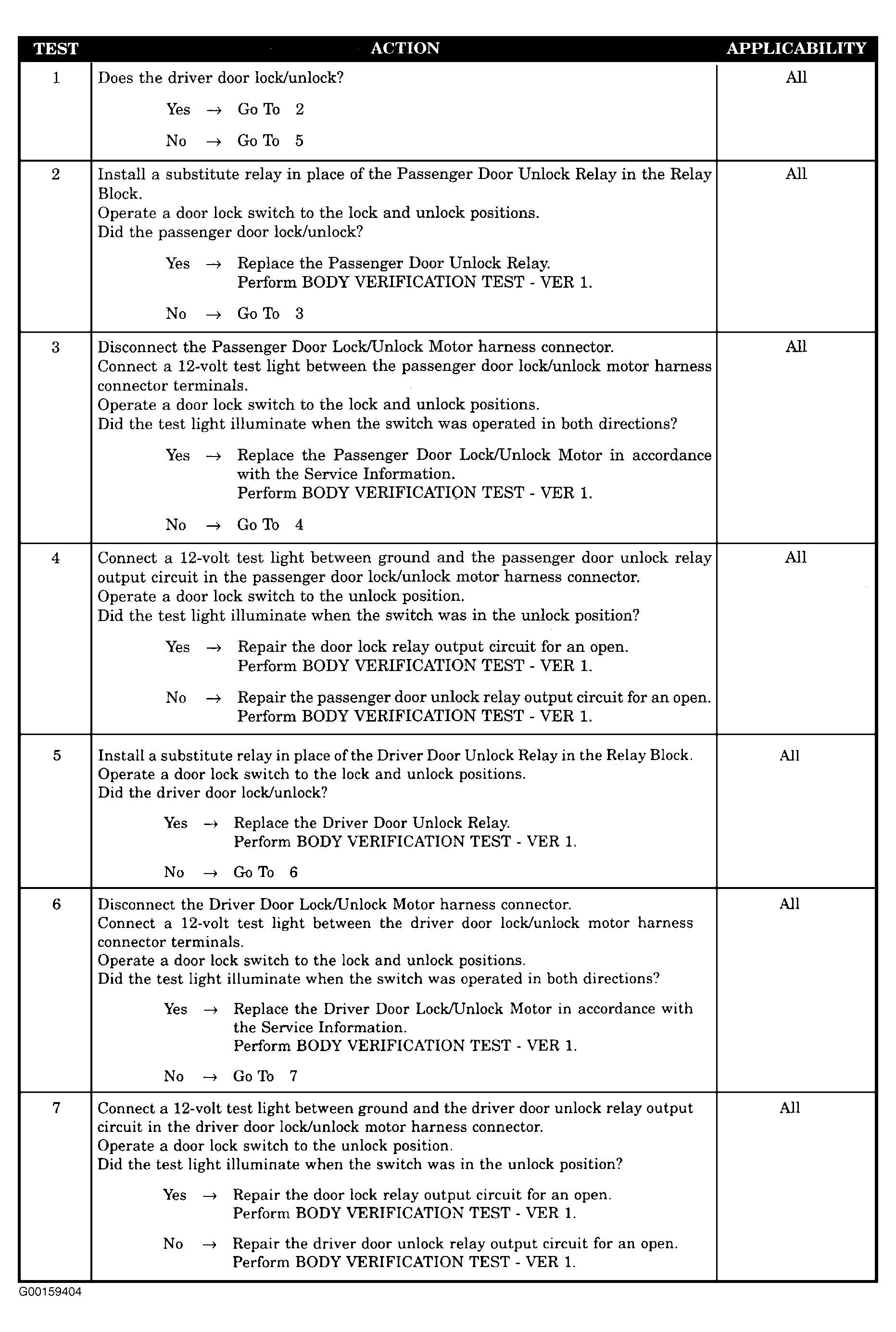

For one door fails to lock/unlock from either switch diagnostic procedures, see Figure. For component locations, see COMPONENT LOCATIONS . For connector terminal identification, see CONNECTOR IDENTIFICATION . For circuit and wiring diagrams, see WIRING DIAGRAMS .
