Test J: Doors Fail To Unlock From Either Switch: Notes

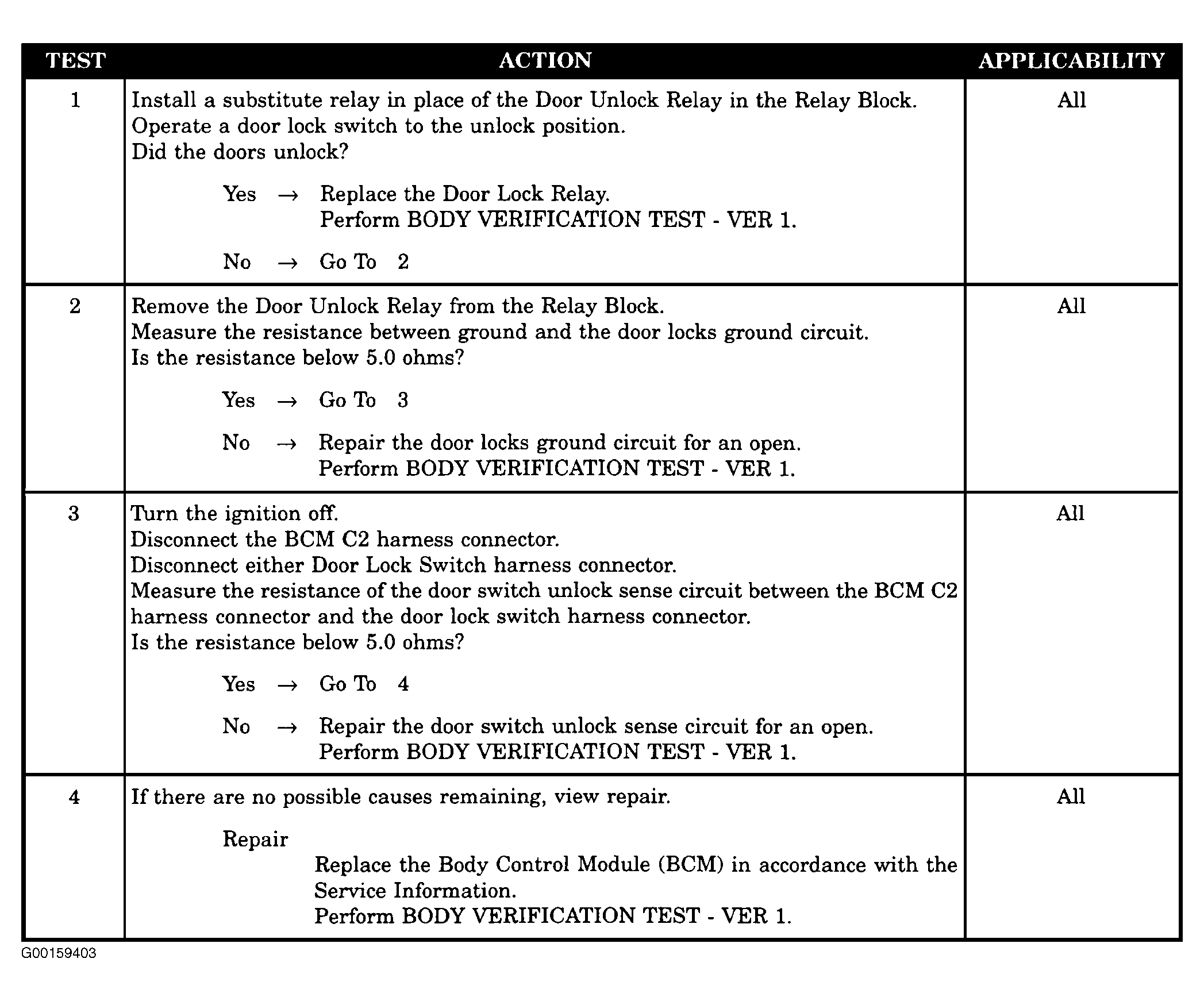

For doors fail to unlock from either switch diagnostic procedures, see Figure. For component locations, see COMPONENT LOCATIONS . For connector terminal identification, see CONNECTOR IDENTIFICATION . For circuit and wiring diagrams, see WIRING DIAGRAMS .
